Axiomtek

Vision System MVS100-323-FL

Compact Vision System with Intel Atom x5-E3940 Processor, Vision I/O, 2-CH PoE and 2-CH LED Output

Datasheet
SGD $0.00
9% Tax included Shipping calculated at checkout.

- Integrated real-time vision I/O
2-CH trigger input
2-CH trigger output
2-CH LED lighting control
4-CH isolated DIO
- Supports camera interfaces
2 IEEE802.3af GbE LAN ports (PoE)
- Power input: 24 VDC
- -10°C to +55°C operating temperature range
- Supports TPM 2.0 function



Introduction

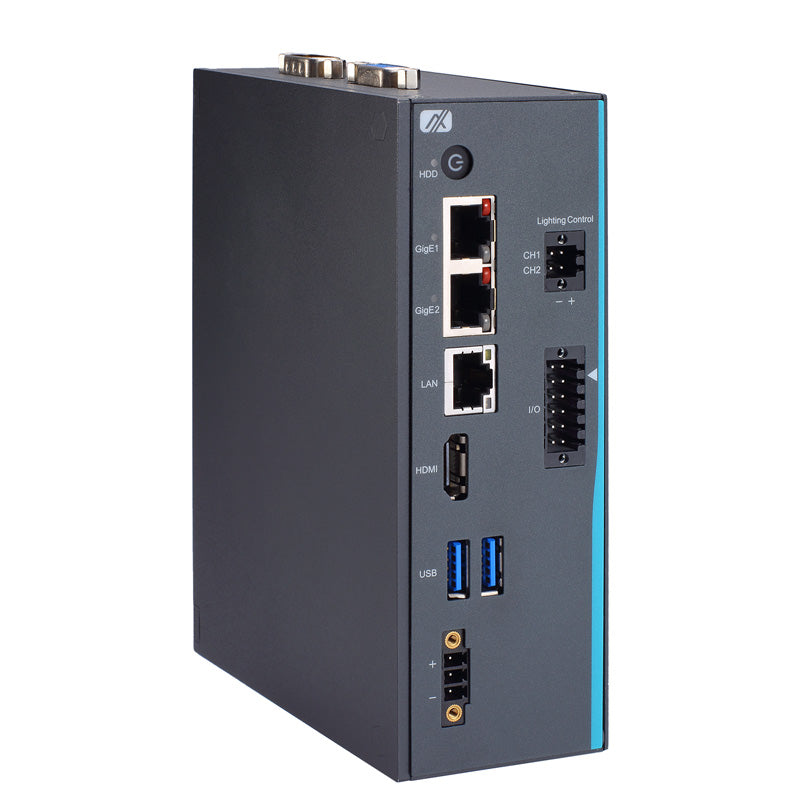

Axiomtek MVS100-323-FL ultra-compact fanless machine vision system with real-time vision I/O and camera interfaces. Vision I/O includes trigger input/output, LED lighting control and isolated DIO. With support for two independent IEEE802.3af GbE LAN ports (PoE) for connection with industrial cameras, the vision system is suitable for automated optical inspection (AOI), label presence inspection, optical character recognition (OCR), and defect inspection.



Axiomtek MVS100-323-FL is powered by the Intel Atom x5-E3940 processor. Two IEEE802.3af GbE LAN ports (PoE) ensure independent bandwidth capacity and power supply for GigE cameras. Through software integration, its integrated lighting controller comes with both strobe mode and trigger mode, which can support various types of LEDs. This system has real-time vision I/O for camera trigger to ensure high-quality image captures.

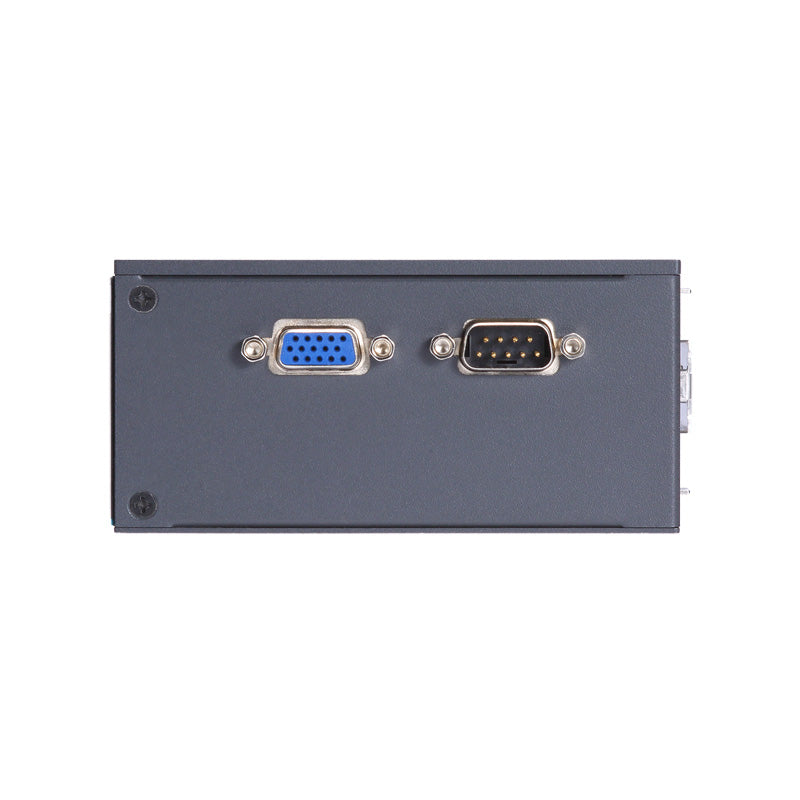

MVS100-323-FL is a cost effective system with DDR3L SO-DIMM sockets for up to 8GB of system memory. It offers flexible I/O expandability including one GbE LAN port with Intel® Ethernet Controller I211-AT, one RS-232/422/485 port, two USB 3.2 Gen1 ports, one HDMI port, one VGA port and one optional internal USB connector. It has a full-size PCI Express Mini Card slot in support of mSATA signal for WLAN/WWAN/mSATA modules. There is enhanced security options with Trusted Platform Module 2.0 (TPM 2.0).
