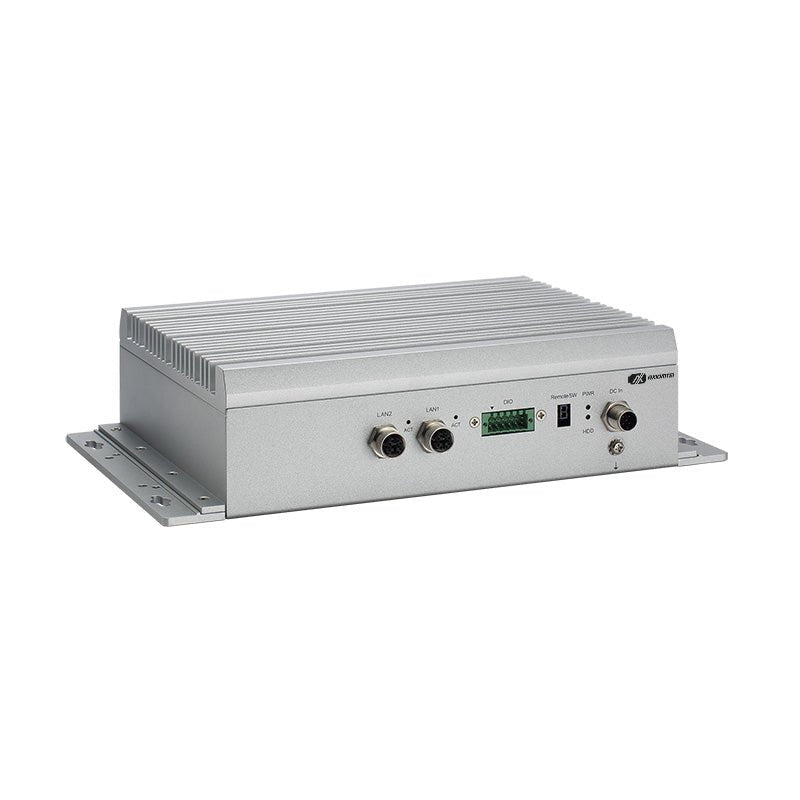

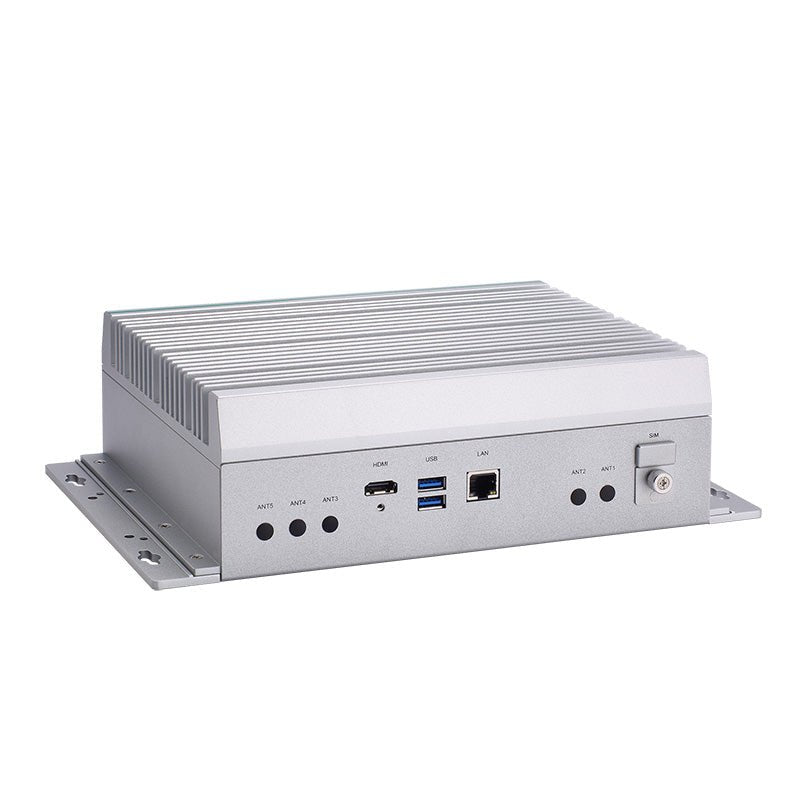

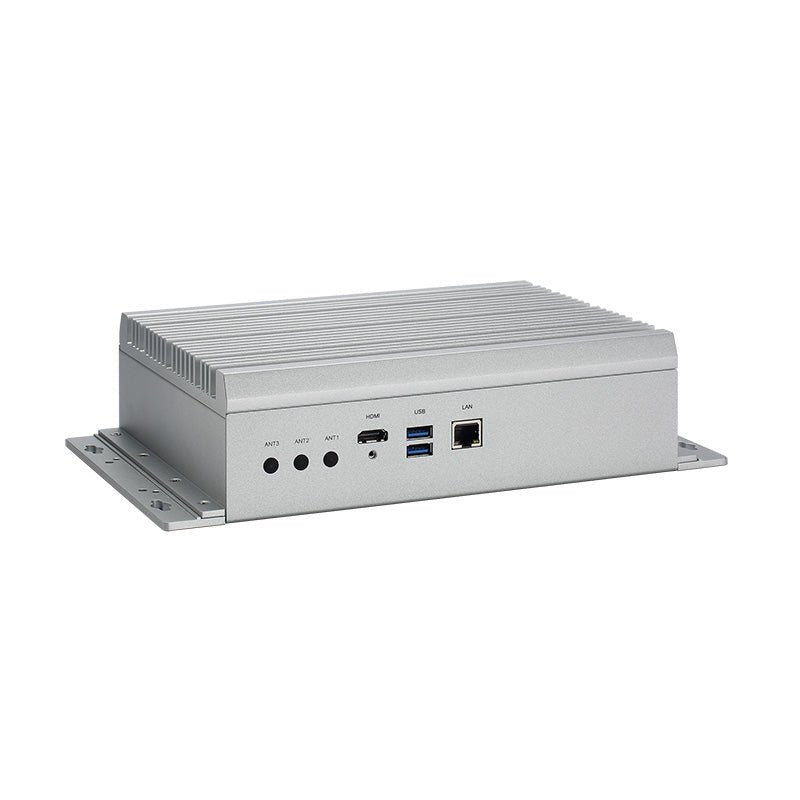

Transportation Embedded Computer tBOX210

• CE, LVD, FCC, EN 50155, EN 45545-2, and NFPA 130 certified
• LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (CPU TDP 35W)
• 24 to 110 VDC input for all train types

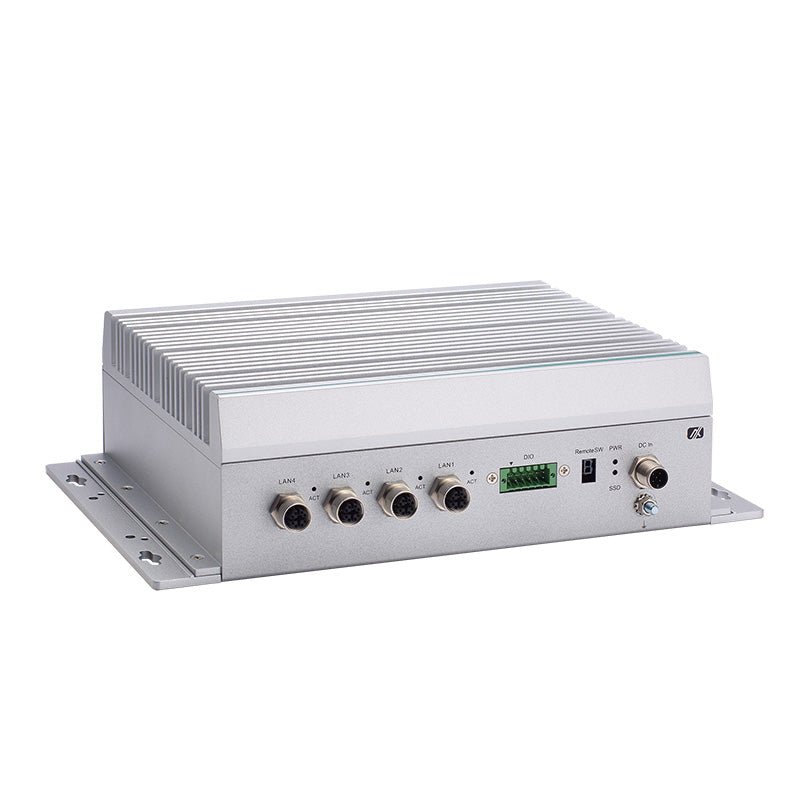

• 4 M12 2.5GbE LAN ports for secure, high-bandwidth camera connections
• Intelligent solution of power management (smart ignition)
• 2 or 4 internal 2.5" 15 mm SATA drives for high storage capacity

 tBOX210 is Axiomtek new EN 50155, EN 45545-2 certified modular embedded system for railway applications. This fanless transportation embedded system is powered by the 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (code name: Alder Lake-P). Its adaptability to various applications is enhanced by the support of versatile VAM modules, allowing customers to employ a single configuration for diverse settings and time to market. To overcome voltage fluctuations or power outage interruptions, tBOX210 features 24V to 110V wide-range DC input with ignition power control. The all-in-one transportation system is also built to withstand extreme temperatures of -40 to +70°C, meeting the stringent OT4 operating temperature class specified by the EN 50155 certification for railway-focused embedded PCs

Axiomtek tBOX210 offers versatile support for value-added modules catering to diverse I/O needs, including COM, LAN, DIO, PoE, CAN, and BNC interfaces to support a range of peripherals and connections. Through integration with the VAM708 module featuring four M12 A-code LAN ports with LAN Bypass function, this railway embedded system ensures uninterrupted communication and networking flow. tBOX210 provides a smart ignition solution for effective power management, minimizing unnecessary power consumption after the vehicle stops running

tBOX210 features two DDR5-4800 SO-DIMM slots for up to 32GB of system memory and one M.2 Key M 2280 slot for high-speed NVMe SSD, offering an overall boost of computational performance. It has two swappable 2.5-inch SATA drives with Intel® RAID 0/1. For more expansion, the fanless embedded system offers one full-size PCIe Mini Card slot with support of USB/PCIe for LTE, Wi-Fi, and Bluetooth modules, one M.2 Key A+E slot for Wi-Fi 6 and Bluetooth modules, one M.2 Key B slot for 5G, Wi-Fi 6, and Bluetooth modules, as well as two nano SIM card slots for easy access to the network. This all-in-one box computer supports rich I/O interfaces including one 2.5GbE LAN, four USB 3.0, two type A HDMI 1.4b (4K) one DB9 serial console or RS-232/422/485, one Mic-in, one Line-out, one reset button, one power button, and eight antenna openings. The tBOX520 is compatible with Windows® 11 64-bit, and Ubuntu 22.04.
