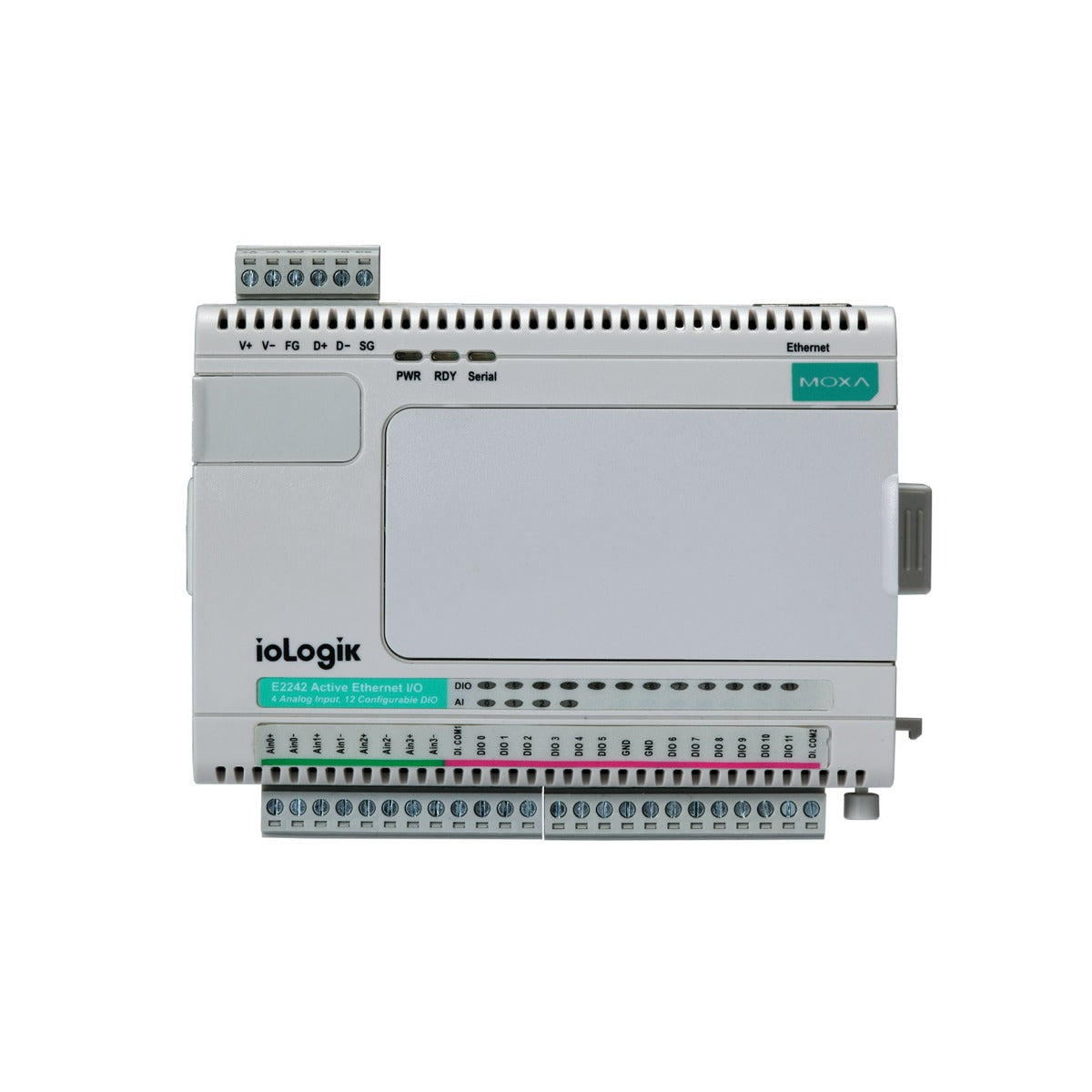

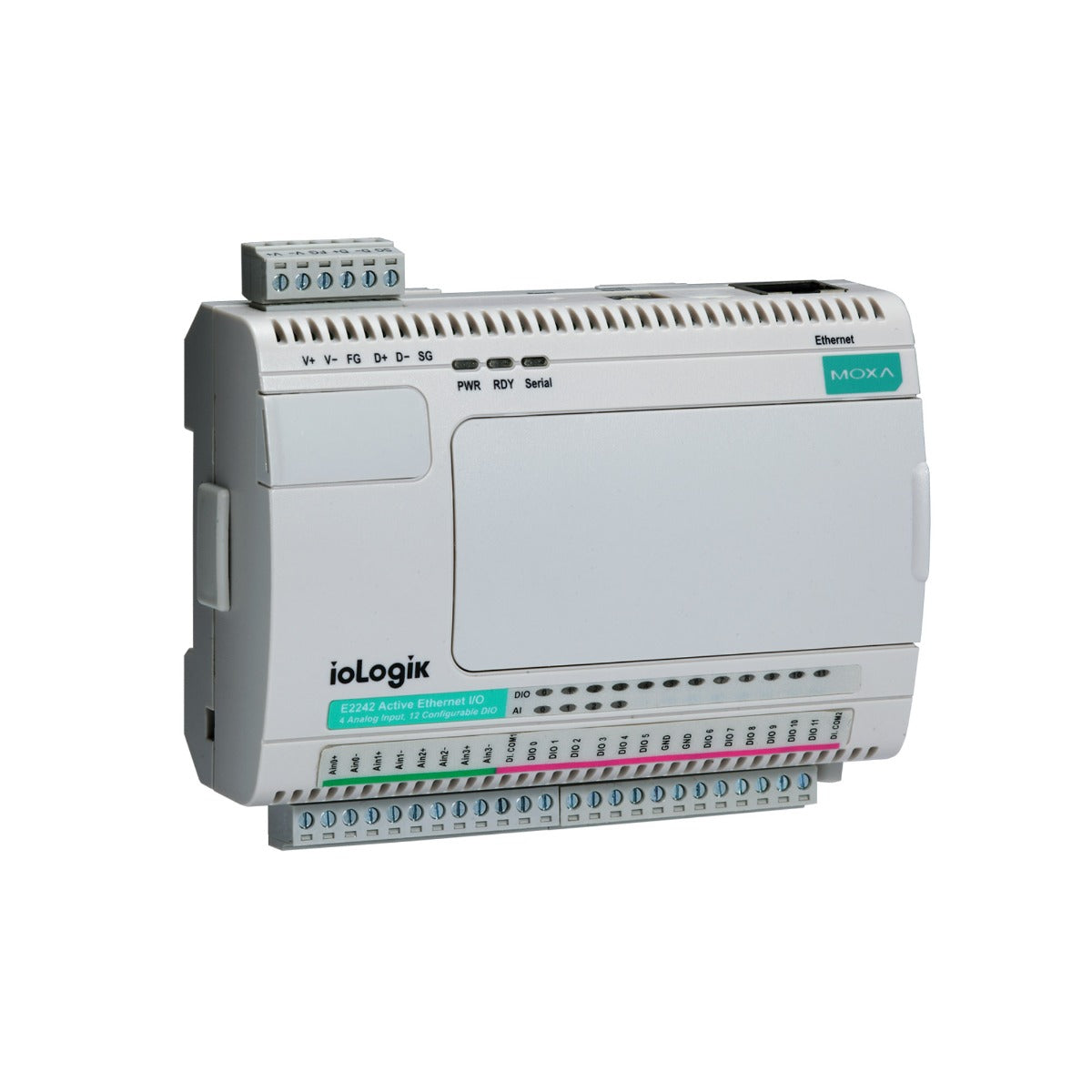

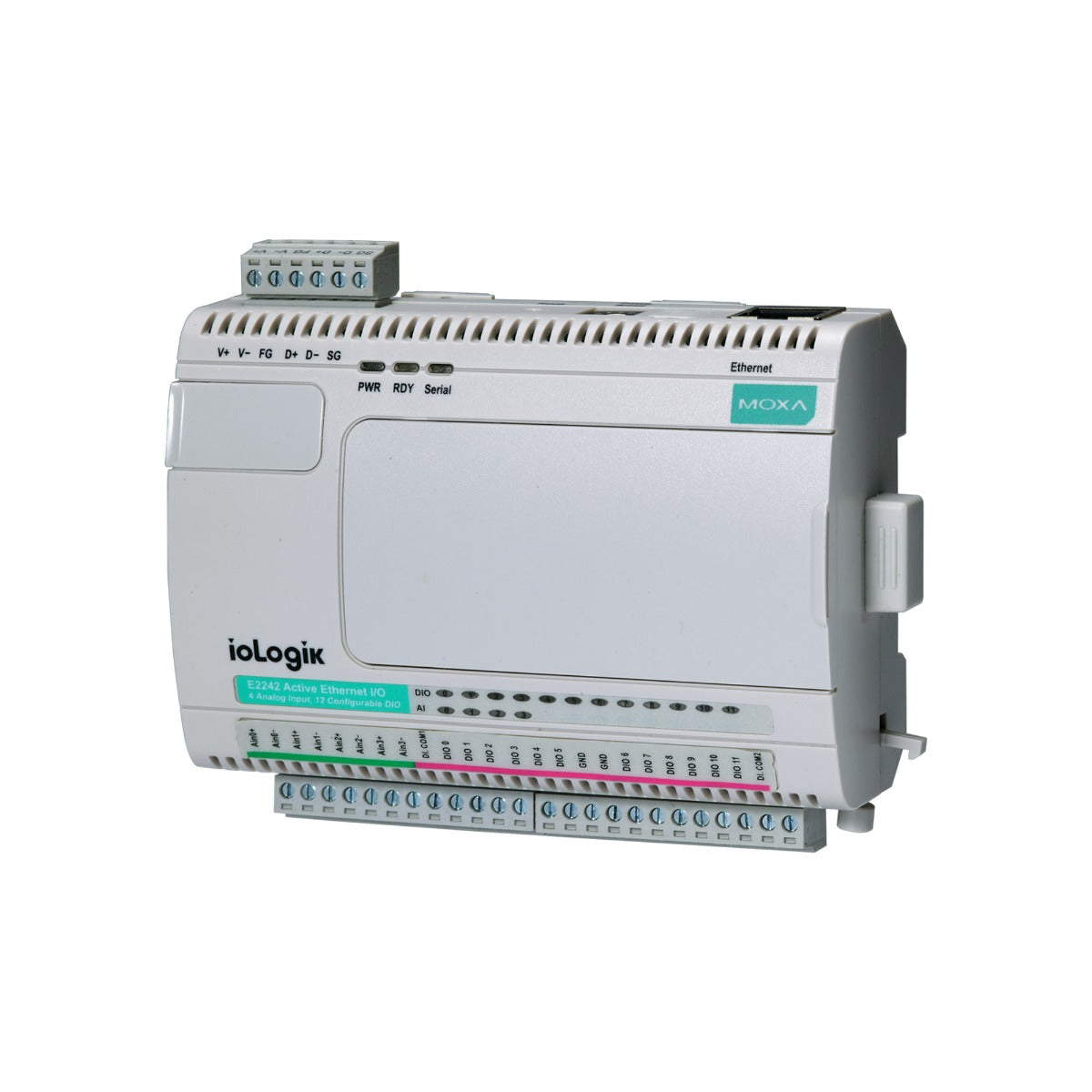

Ethernet Remote I/O ioLogik E2262

Moxa’s ioLogik E2200 Series Ethernet Remote I/O is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices and features the Click&Go programming interface. Unlike traditional PLCs, which are passive and must poll for data, Moxa’s ioLogik E2200 Series will, when paired with our MX-AOPC UA Server, communicate with SCADA systems using active messaging that is pushed to the server only when state changes or configured events occur. Additionally, the ioLogik E2200 features SNMP for communications and control using an NMS (Network Management System), allowing IT professionals to configure the device to push I/O status reports according to configured specifications. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.

Moxa's ioLogik E2262 can extend the wiring length of sensors up to 10 fold. For example, whereas the wiring for a J-Type may normally extend only 10 m, the ioLogik E2262 can be used to increase the J-Type TC wiring length up to 100 m. Moxa's ioLogik E2262 has two cold junction compensation sets and supports digital filtering. Calibration, linearization, and calculation are based on the devices traced by the NIST (National Institute of Standards and Technology), and are stored in memory to eliminate this source of error. Moxa's ioLogik E2262 can also detect burnout and disconnection.

- Ethernet I/O controller with 8 thermocouple inputs and 4 digital outputs
- Supports J, K, T, E, R, S, B, and N type thermocouple and mV modes
- Conversion Time: Less than 90 ms
- Front-end intelligence with Moxa patented Click&Go control logic, up to 24 rules
- Active communication with MX-AOPC UA Server
- Saves time and wiring costs with peer-to-peer communications
- Supports SNMP v1/v2c/v3
- Friendly configuration via web browser
- Simplifies I/O management with MXIO library for Windows or Linux
- Wide operating temperature models available for -40 to 75C environments

ioLogik E2262 Specifications

Inputs and Outputs
Thermocouple Inputs: 8 channels
Digital Outputs: 4 channels

Thermocouple Input
Sensor Type: J (0 to 750°C), K (-200 to 1250°C), T (-200 to 350°C), E (-200 to 900°C), R (-50 to 1600°C),
S (-50 to 1760°C), B (600 to 1700°C), N (-200 to 1300°C)
Millivolt Type:
• Mode: ±78.126 mV, ±39.062 mV, ±19.532 mV
• Fault and over-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)
Sampling Rate: 12 samples/sec (all channels)
Resolution: 16 bits
Millivolt Accuracy:
±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C
TC Accuracy:
Types J, T, E, S, B: ±5°C
Types K, R, N: ±8°C
CJC Sensor Accuracy:
±0.5°C @ 25°C
±1.5°C @ -40 and 75°C
Input Impedance: 1 M ohms

Digital Output
Type: Sink
I/O Mode: DO or Pulse Output
Pulse Output Frequency: 100 Hz
Over-voltage Protection: 45 VDC
Over-current Protection: 2.6 A (4 channels @ 650 mA)
Over-temperature Shutdown: 175°C
Current Rating: 200 mA per channel
Isolation: 3K VDC or 2K Vrms

Power Requirements
Power Consumption: 160 mA @ 24 VDC
