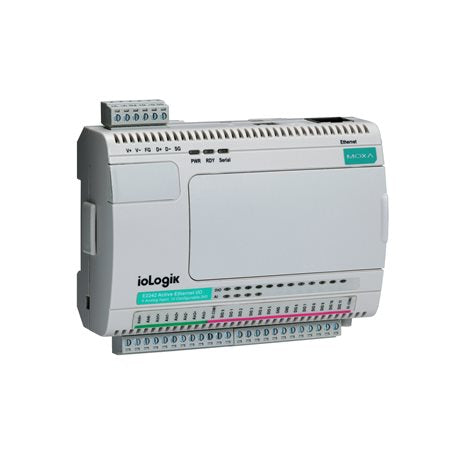

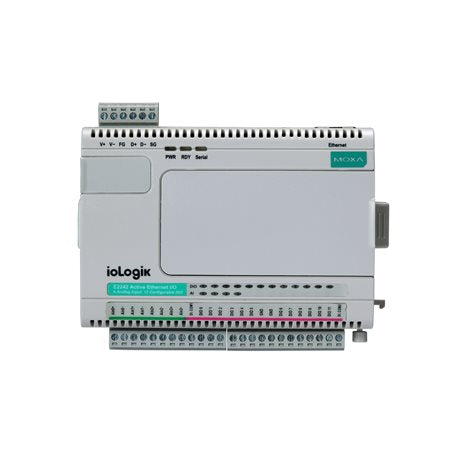

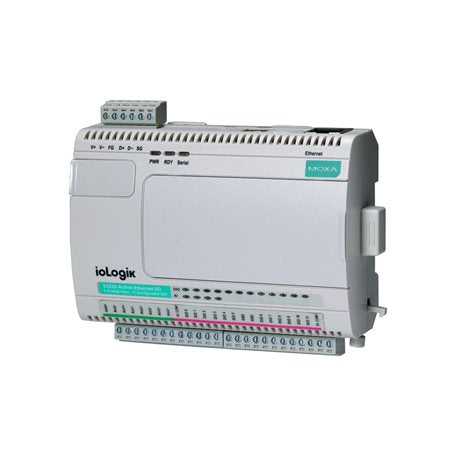

Ethernet Remote I/O ioLogik E2210

Smart I/O controller with 12DI & 8DO, Click&Go; Front-end intelligence

$414.20
9% Tax included Shipping calculated at checkout.

Pre-order product

TNS has regular shipments from factory. As soon as it's in stock, we will ship it to you. Contact TNS sales for more info.

Moxa’s ioLogik E2200 Series Ethernet Remote I/O is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices and features the Click&Go programming interface. Unlike traditional PLCs, which are passive and must poll for data, Moxa’s ioLogik E2200 Series will, when paired with our MX-AOPC UA Server, communicate with SCADA systems using active messaging that is pushed to the server only when state changes or configured events occur. Additionally, the ioLogik E2200 features SNMP for communications and control using an NMS (Network Management System), allowing IT professionals to configure the device to push I/O status reports according to configured specifications. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.

Inputs and Outputs
Digital Inputs: 12 channels
Digital Outputs: 8 channels
Isolation: 3K VDC or 2K Vrms

Digital Input
Sensor Type: Wet Contact (NPN), Dry Contact
I/O Mode: DI or Event Counter
Dry Contact:
• On: short to GND
• Off: open
Wet Contact (DI to GND):
• On: 0 to 3 VDC
• Off: 10 to 30 VDC
Common Type: 12 points per COM
Counter Frequency: 900 Hz
Digital Filtering Time Interval: Software selectable

Digital Output
Type: Sink
I/O Mode: DO or Pulse Output
Pulse Output Frequency: 1 kHz
Over-voltage Protection: 45 VDC
Over-current Protection: 2.6 A (4 channels @ 650 mA)
Over-temperature Shutdown: 175°C (min.)
Current Rating: 200 mA per channel

Power Requirements
Power Consumption: 203 mA @ 24 VDC
