Moxa

Profinet Gateway Mgate 5123

1 port CANopen/J1939-to-PROFINET gateways with https encryption

Datasheet
SGD $0.00
9% Tax included Shipping calculated at checkout.

- Simultaneous protocol conversions from CANopen and J1939 to PROFINET and SNMP
- Supports PROFINET I/O device and SNMP agent
- Supports CANopen master and J1939
- Flexible deployment with Ethernet cascading and dual subnet
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- Easy device configuration via a web-based console
- microSD card for configuration backup/duplication
- Supports dual redundant DC power inputs and 1 relay output
- CAN port with 2-kV isolation protection
- Wide operating temperature -40 to 75°C models available
- Developed according to IEC 62443-4-2 with Secure Boot



Moxa MGate 5123 is an industrial Ethernet gateway for CANopen/J1939 to PROFINET network communications. To integrate existing CANopen or J1939 devices onto a PROFINET network, use the MGate 5123 as a CANopen or J1939 master to collect data and exchange data with the PROFINET IO controller. All models housed in a rugged and compact dinrail metal housing.

Easy Configuration

In most data-acquisition applications, configuration of CANopen devices can be time-consuming and increase costs. Moxa MGate 5123 gateways comes bundled with a free web console software utility to simplify configuration. HTTPS encryption of communication ensures higher network security. Moxa MGate 5123 gateways provide EDS file import function. User can auto scan the CANopen devices to help complete the settings quickly. The MGate gateways has software-configurable termination resistor settings for CANbus. This eliminates the need to open the chassis.

Easy Troubleshooting

MGate 5123 gateways offers a variety of maintenance functions to reduce troubleshooting time and cost, including LED indicators, protocol diagnostics for CAMopen/J1939/Profinet, traffic monitor and tag view. These tools help users capture and check data to easily identify the root cause of issues, especially during the installation stage. MGate gateways includes status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a CAN device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators. The fault protection function executes actions pre-defined by the user when a host gets disconnected to prevent the end devices from going offline for long periods of time.

Read-only and Read/write Access Control

Administrators can define usernames, passwords, and authentication parameters in SNMP for two levels of access control: read-only and read/write.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

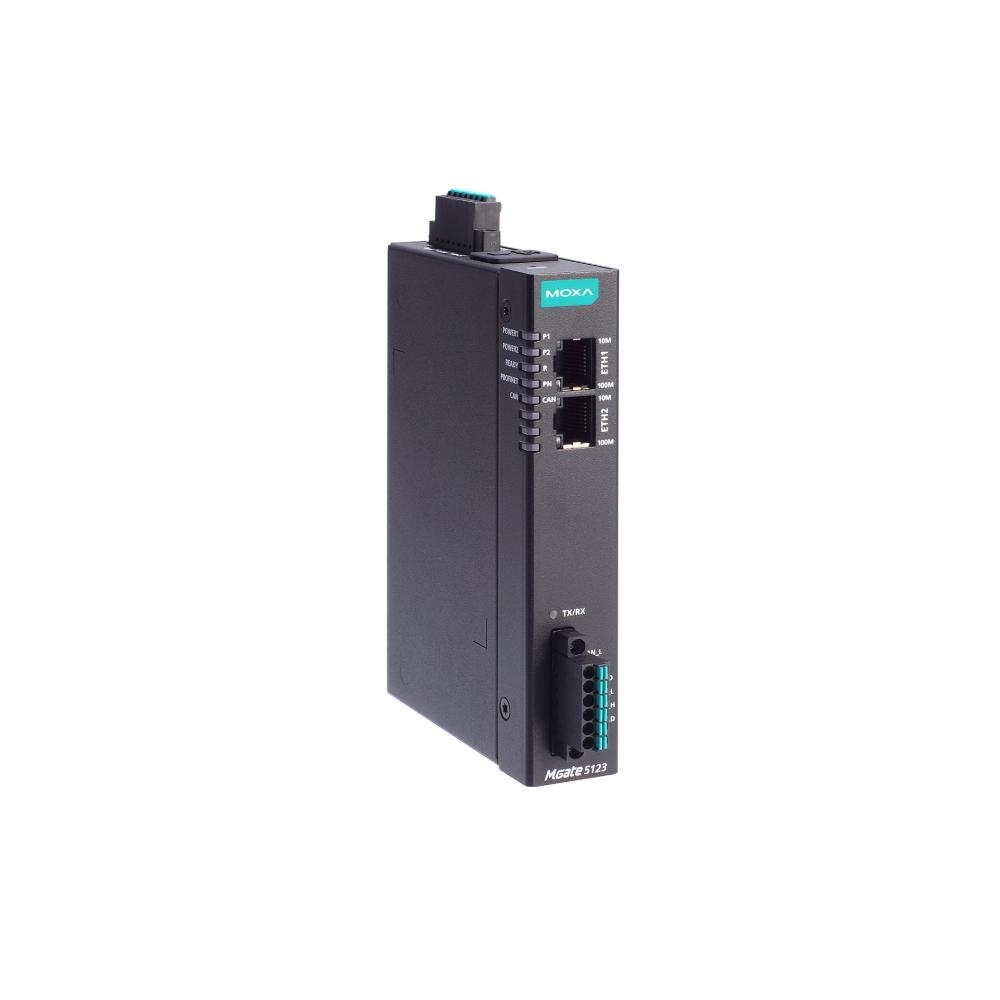

moxa mgate 5123 series right view
