Moxa

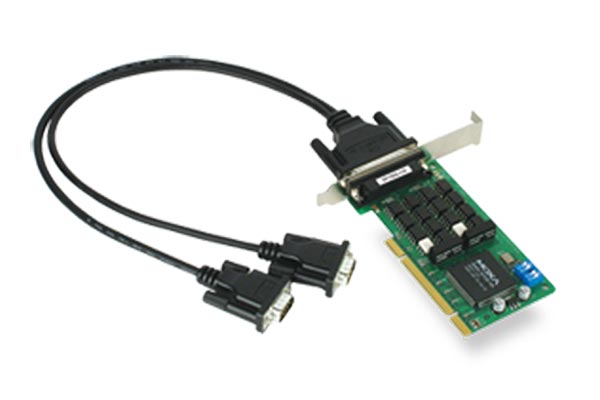

PCI Board CP-132UL-I

2-port RS-422/485 Universal PCI serial boards with optional 2 kV isolation

Datasheet
$0.00
9% Tax included Shipping calculated at checkout.

- Over 800 kbps data throughput for top performance
- 921.6 kbps maximum baudrate for fast data transmission
- ADDC® provides automatic data direction control for RS-485 signals
- Transmit data up to 1.2 km with RS-422/485
- 128-byte FIFO and on-chip S/W flow control
- Compatible with 3.3/5 V PCI and PCI-X
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- MD1 low-profile form factor fits small-sized PCs
- Wide-temperature model available for -40 to 85°C environments



MOXA's CP-132UL-I universal PCI boards is designed for industrial automation applications that require a long distance, multi-point, PC-based data acquisition solution. CP-132UL-I Universal PCI boards have 2 RS422/RS485 serial ports, each of which can achieve data rates up to 921.6 Kbps. In RS485 mode, the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long distance RS485 communication, choose the CP-132UL-I model, which comes with 2 KV optical isolation protection to prevent equipment damage.
