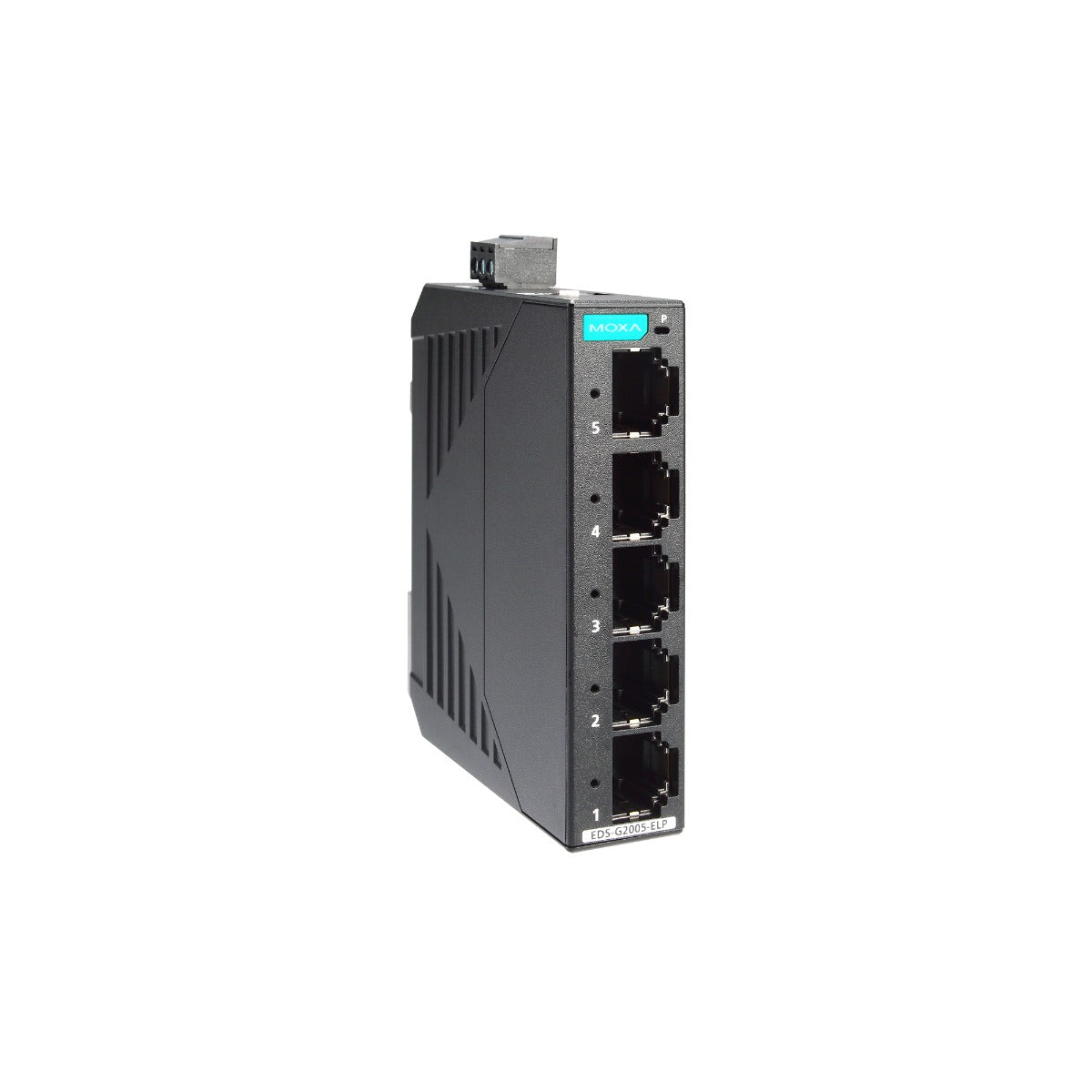

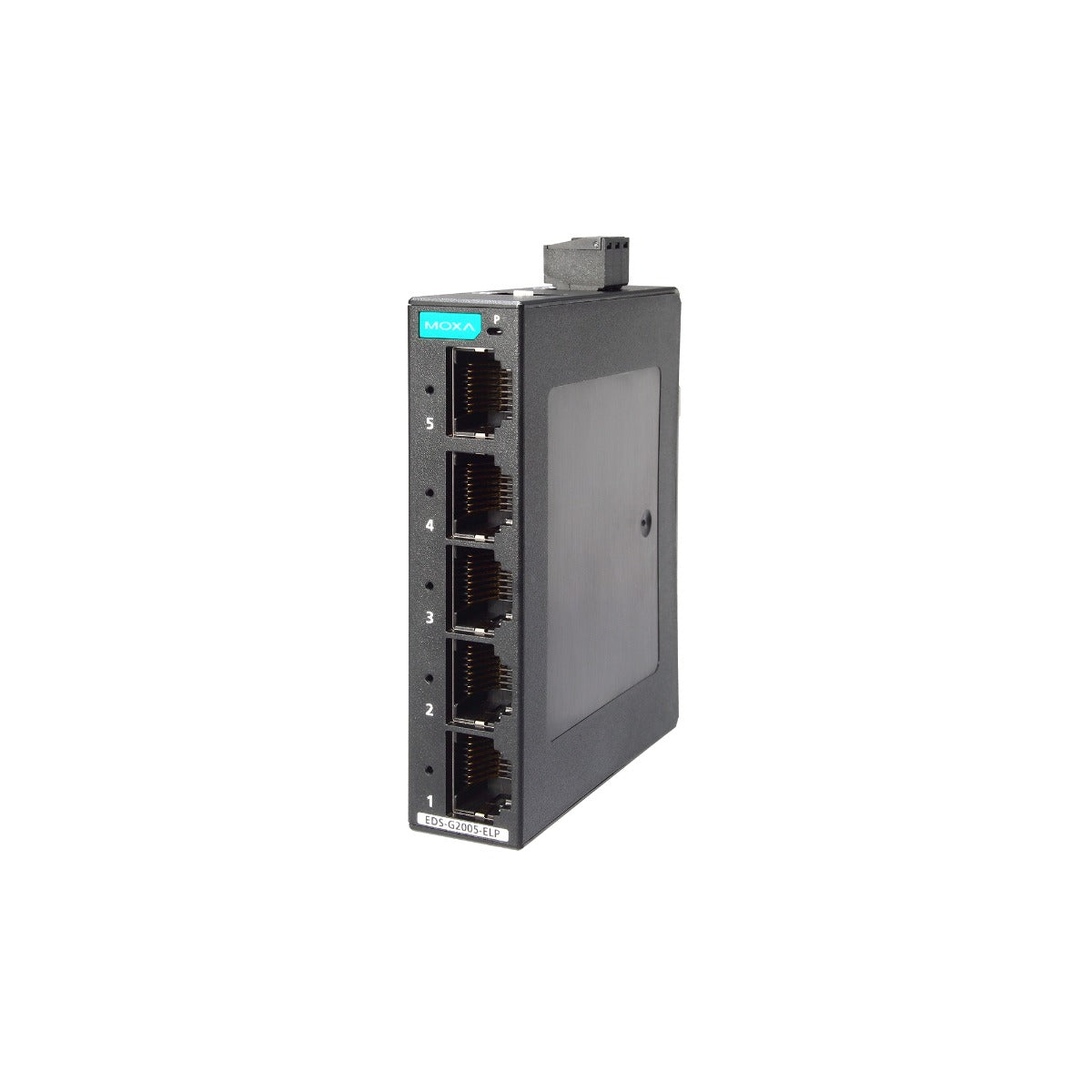

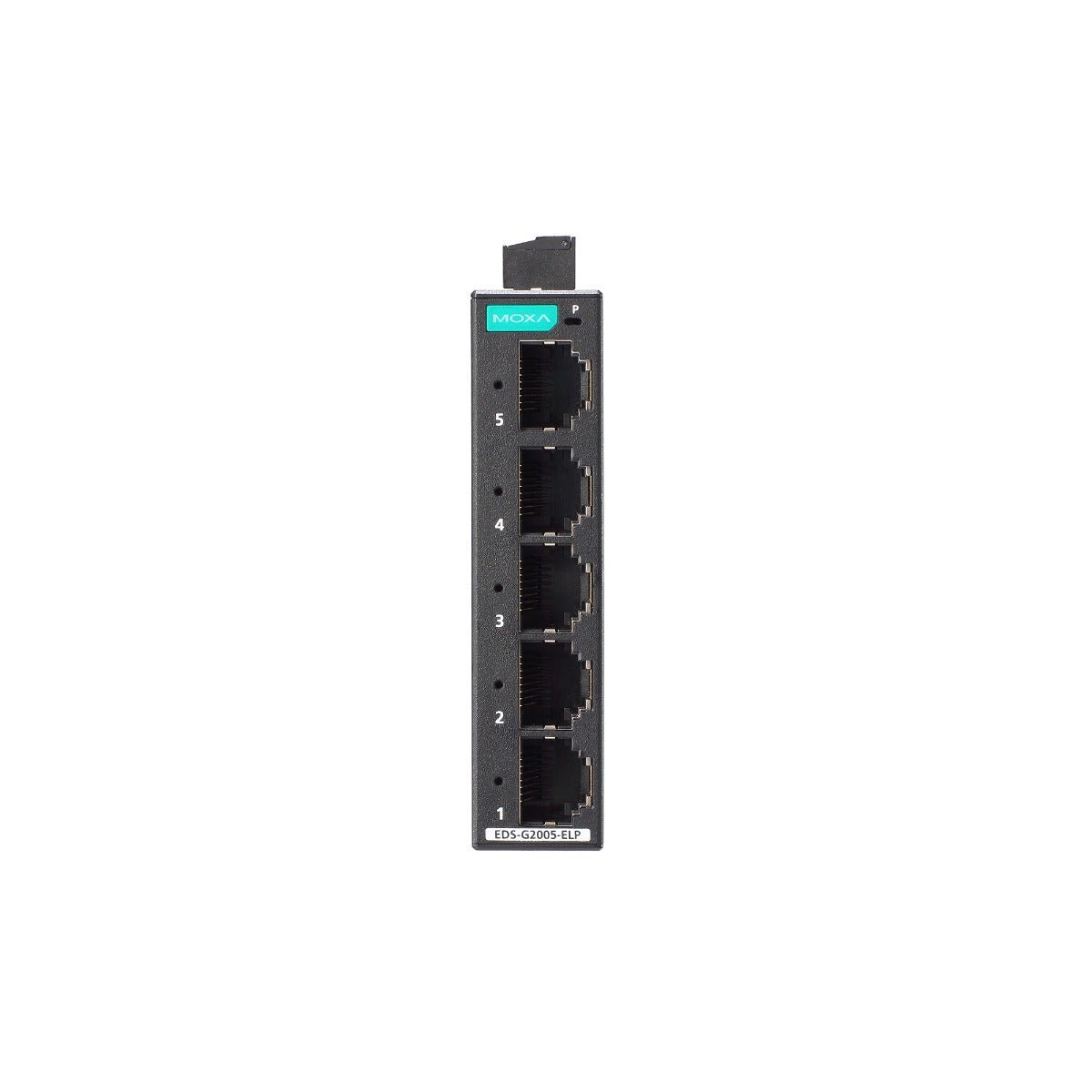

Ethernet Switch EDS G2005-ELP

- Full Gigabit Ethernet ports
- 12/24/48 VDC power input
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- Overload current protection
- Reverse polarity protection
- Configurable broadcast storm protection
- IEC 61000-4 Certified EMS Protection Design against ESD, RS, EFT, Surge, CS and PFMF
- IP40-rated plastic housing, weighs 90g (19 x 81 x 65mm)
- Wide operating temperature range -40 to 75C (optional -T models)

Moxa EDS-G2005-EL/ELP Series has a 5-port combination to simplify network expansion. There are two housing types available for the user to select depending on the requirements of their application. The ELP has a plastic housing and the EL has a metal housing. The compact switches provide a cost-effective solution for your industrial Ethernet connection requirements.

Moxa EDS-G2005-ELP series of unmanaged industrial Ethernet switches offers five Gigabit Ethernet ports. Suitable for applications that require simple industrial Ethernet connections. Moxa EDS-G2005-ELP Series allows users to enable/disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. EDS-G2005-EL Series features a compact and rugged IP40 plastic housing to ensure suitability for use in industrial environments.

EDS-G2005-ELP has 12/24/48 VDC single power input. DIN-rail mounting, and high-level EMI/EMC capabilities. EDS-G2005-ELP Series has passed a 100% burn-in test to ensure reliable operations after deployment. Moxa EDS-G2005-ELP Series has a standard operating temperature range of -10 to 60°C. Wide-temperature (-40 to 75°C) models are available.
