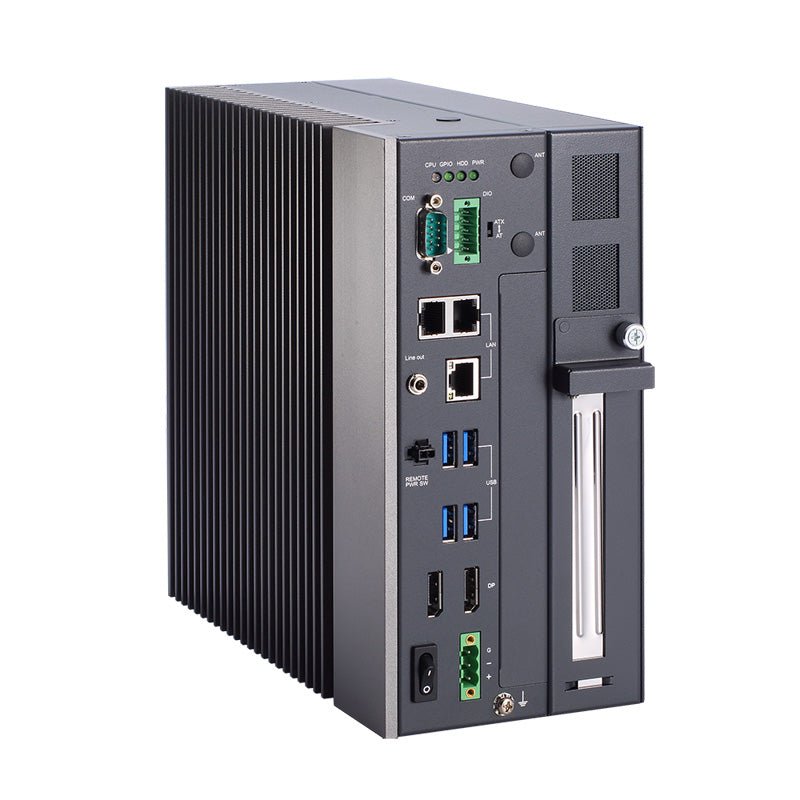

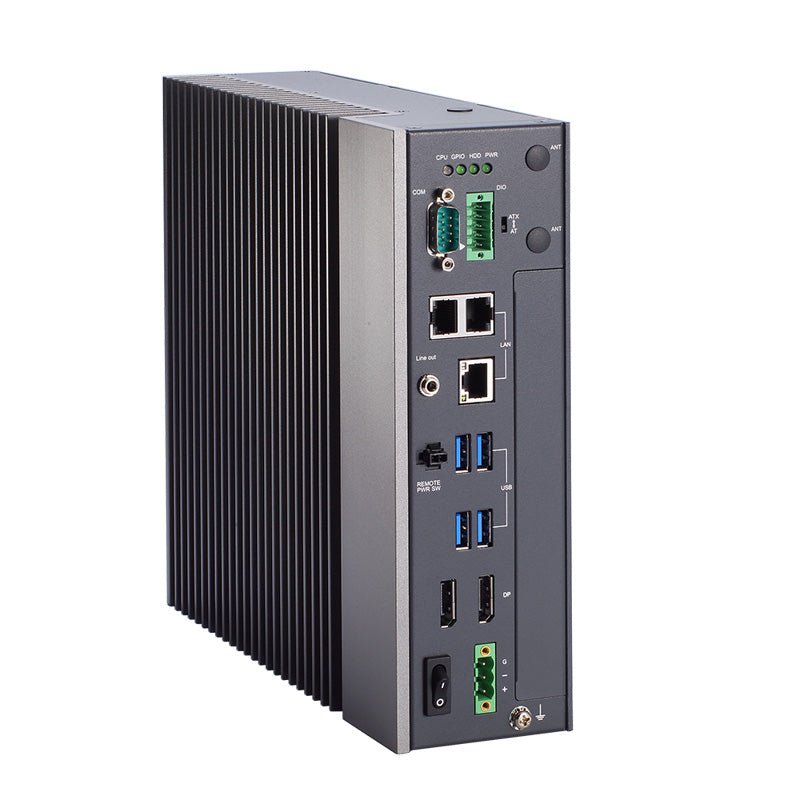

Modular Embedded Computer IPC950

Axiomek IPC950 is an Modular Industrial Embedded System dor diverse AIoT applications. It is powered by the 11th generation Intel Core i7/i5/i3 processor or Intel Celeron processor, based on Intel’s third-generation 10nm process technology. It supports Intel AMT for real-time remote device monitoring and management and Trusted Platform Module 2.0 (TPM 2.0) for security through major data encryption priorities. The compact industrial computer is designed to deliver powerful computing to handle heavy loading and multi-tasking applications in factory or machine automation.

There are flexible extension I/O window slot with four choices of I/O modules including a four-port RS-232/422/485 module (AX93511); a four-port isolated RS-232/422/485 module (AX93516); a one-port GbE Ethernet, two-port USB 3.0 and two-port RS-232/422/485 module (AX93519); and a two-port isolated RS-232/422/485 and 8-in/8-out DIO module (AX93512).

IPC950 Embedded computer also comes with an optional PCIe x4 slot for vision, motion, data acquisition and frame grabber cards such as AX92320, AX92321, and AX92322. The ruggedized IPC950 provides a full-size PCIe Mini Card slot and one SIM card slot for Wi-Fi, Bluetooth as well as 4G/LTE modules, and an M.2 Key E 2230 socket for wireless connection.

One 2.5" HDD/SSD bay and one M.2 Key B+M 2280 socket for extensive storage needs are also available. Moreover, the powerful industrial system supports DIN-rail, bookshelf and wall mounting. It is built to withstand harsh operating environments with a wide operating temperature range of -20C to +50C and a power input of 24V DC. IPC950 adopts the 11th generation Intel® Core™ processor which features Intel® Iris® Xe graphics, allowing it to deliver massive improvements in processing, graphics and AI performance. This fanless industrial computer is built for AI, deep learning and similar applications requiring high-speed processing, computer vision and low-latency deterministic computing.
