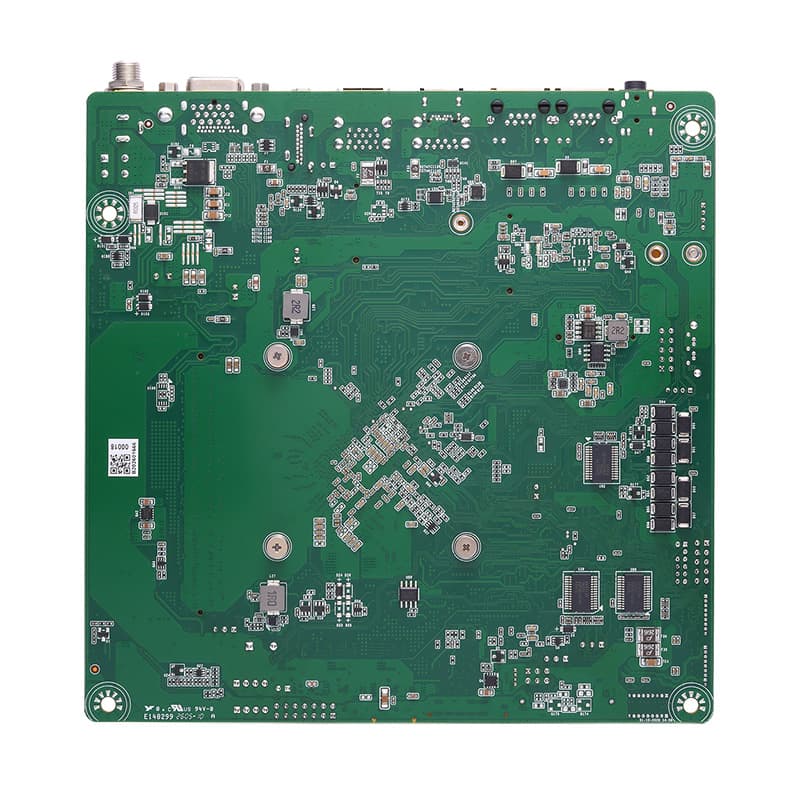

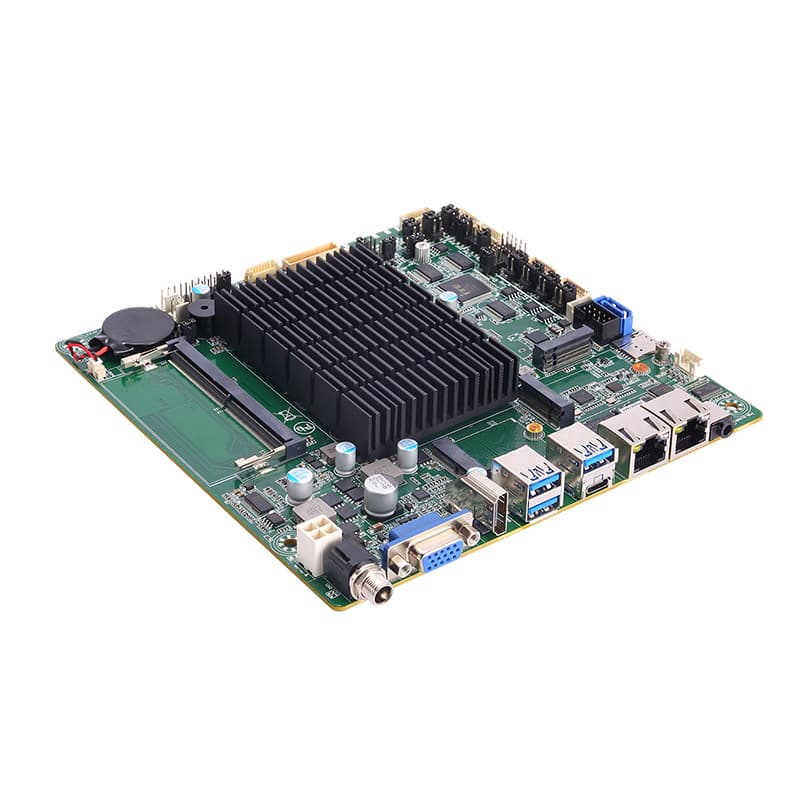

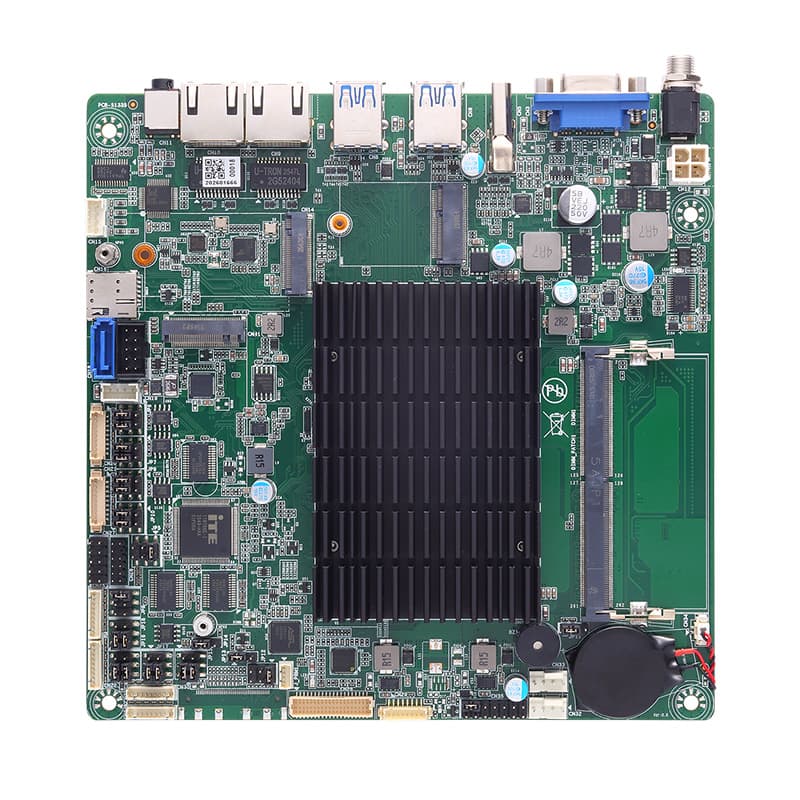

Mini ITX Motherboard MANO330

• Intel® Processor N97/N150
• DDR5-4800 SO-DIMM for up to 32GB
• Dual LAN ports
• M.2 Key B 3042/3052
• M.2 Key E 2230
• M.2 Key M 2280


Axiomtek's MANO330 Mini ITX Motherboard delivers compact computing power with Intel® Processor N97/N150 and integrated SoC chipset, supporting up to 32GB DDR5-4800 memory via a single SO-DIMM slot. Featuring dual LAN connectivity with 2.5GbE and GbE Ethernet ports, this board offers flexible storage options including M.2 Key M 2280 (SATA/NVMe), M.2 Key B 3042/3052, and M.2 Key E 2230 slots, plus SATA 3.0 support. Connectivity includes 3 USB 3.2 Gen 1 ports, USB Type-C with DisplayPort, 2 USB 2.0 ports, and dual display outputs (HDMI and VGA with LVDS co-layout). Industrial-grade features include TPM 2.0 support, hardware monitoring for temperature and voltage, 255-level watchdog timer, and wide operating temperature range (0°C to +60°C). With 12V–24V DC power input, low maximum power consumption of 38.1W, and compact 170×170mm form factor, Axiomtek's MANO330 is ideal for embedded systems, industrial applications, and space-constrained deployments requiring reliable performance and extensive I/O connectivity.
