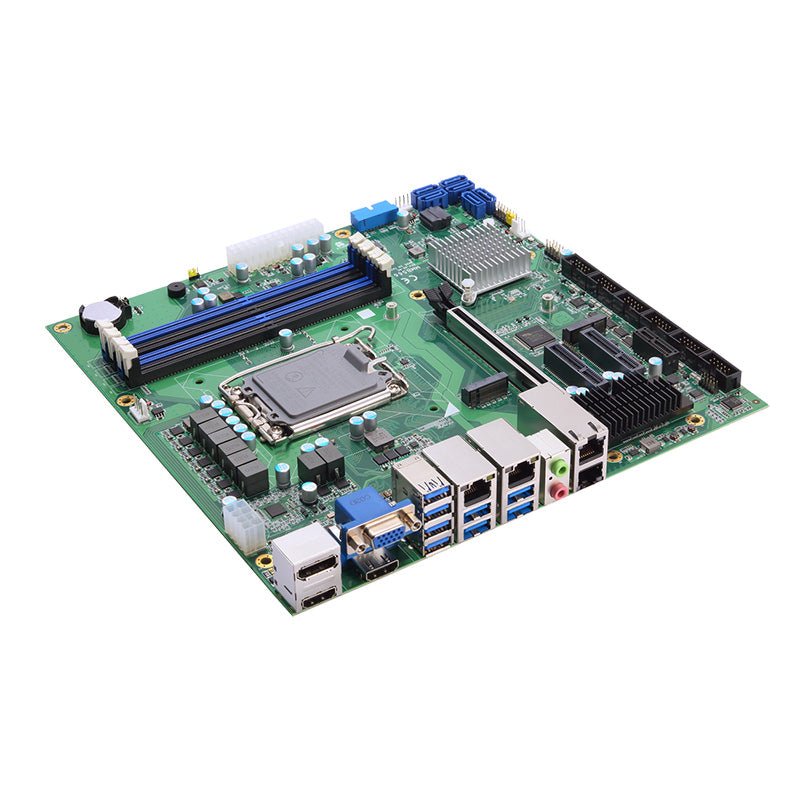

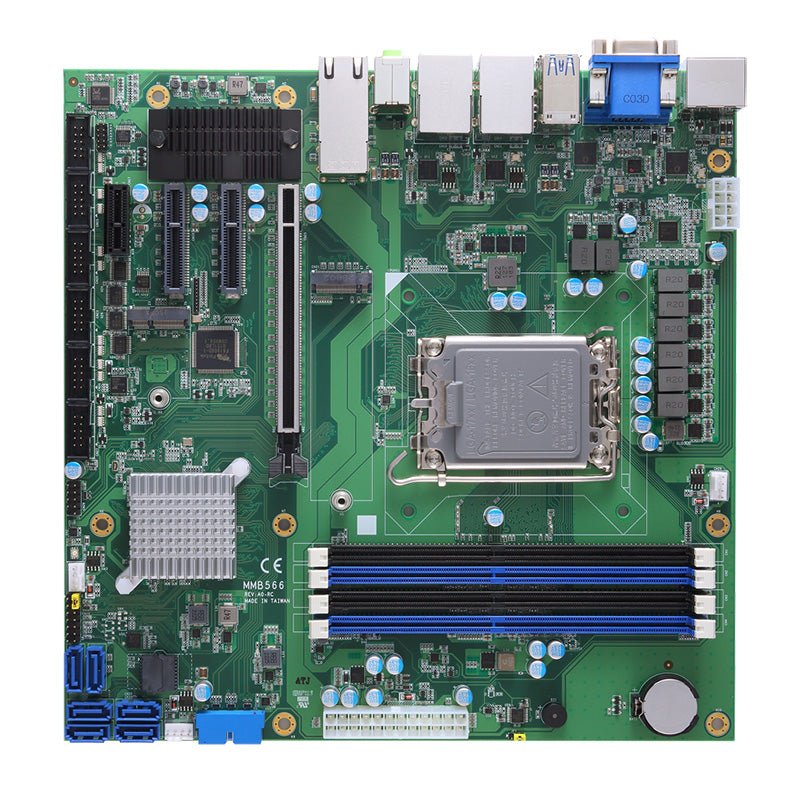

Micro ATX Motherboard MMB566

• LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor
• Intel® Q670E/R680E/H610E chipset
• 4 DDR4-3200 UDIMM, up to 128GB (PCB: V.A)
• 4 DDR5-5600 UDIMM, up to 192GB (PCB: V.B)
• 2 2.5GbE LAN and 2 10GbE LAN (optional)
• 10 USB 3.2 Gen 1
• 2 RS-232/422/485 and 4 RS-232
• 6 SATA 3.0 with RAID 0/1/5/10
• 1 PCIe x16, 2 PCIe x4, and 1 PCIe x1
• 1 M.2 Key M 2280 and 1 M.2 Key E 2230

Axiomtek's MMB566 is a high-performance micro ATX motherboard designed for demanding industrial and commercial applications. Powered by the 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processors with the Intel® Q670E, R680E, or H610E chipset, Axiomtek's MMB566 delivers exceptional computing power and reliability. Designed for precision and durability, it excels in remote control and automated test equipment, ensuring accurate system monitoring and control. Its high processing power makes it ideal for data processing and analysis, while its robust design guarantees seamless operation in ATM applications. With versatile expandability and reliable performance, Axiomtek's MMB566 is a future-ready solution for industrial computing needs.

Axiomtek’s MMB566 is engineered to provide exceptional connectivity, flexibility, and long-term reliability for industrial and commercial applications, said Irene Su, Product Manager of the IDS Division at Axiomtek. “It features two 2.5GbE LAN ports, with optional 10GbE LAN ports available to meet customer-specific high-speed networking requirements. Designed for versatility, it offers a rich array of I/O options, including up to six SATA ports, six COM ports, and twelve USB ports, ensuring seamless integration with various peripheral devices. With support for TPM and Intel® AMT, Axiomtek's MMB566 enhances security and remote management. Furthermore, its guaranteed 10-year supply makes it a reliable choice for embedded systems requiring long-term availability. Ultimately, with highly customizable service options, Axiomtek's MMB566 delivers optimized performance and long-term value across diverse applications.

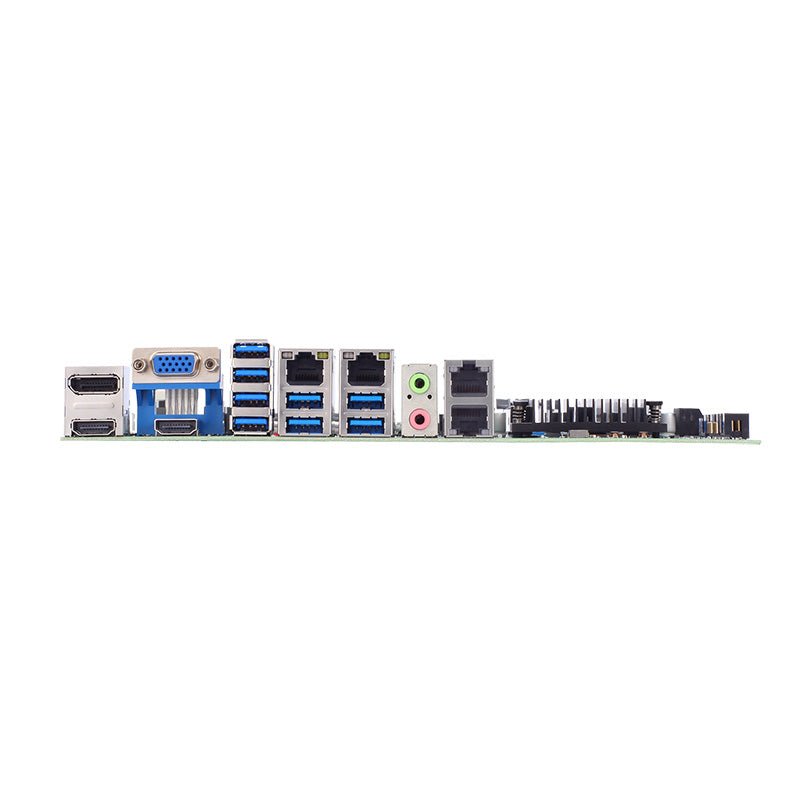

Axiomtek's MMB566 offers exceptional performance and expandability, featuring one PCIe x16, two PCIe x4, and one PCIe x1, along with an M.2 Key E 2230 slot for a Wi-Fi and Bluetooth module and an M.2 Key M 2280 slot for an NVMe SSD. Powered by the Intel® UHD Graphics 700 series engine, it supports quad-display output via DisplayPort++, VGA, and dual HDMI ports, enabling seamless multi-monitor setups and enhanced graphical performance for complex industrial and commercial applications.

With an extensive range of I/O options, Axiomtek's MMB566 includes six SATA 3.0 ports with RAID 0/1/5/10, dual 2.5GbE Ethernet with Intel® I226-LM, and optional dual 10GbE Ethernet with Intel® X550-AT2. It also delivers premium audio quality with Realtek ALC888S HD codec and provides comprehensive connectivity with ten USB 3.2 Gen1, two USB 2.0, and multiple serial ports. With an 8-channel programmable digital I/O, Axiomtek's MMB566 is a versatile and reliable solution for embedded and industrial applications.

Axiomtek's MMB566 features a 24+8-pin ATX power connector with AT Mode Auto Power support, ensuring stable and efficient power delivery for continuous operation. Built for demanding environments, it operates within a temperature range of 0°C to +60°C (+32°F to +140°F). Advanced hardware monitoring provides real-time detection of CPU and system temperature, voltage, and fan speed, ensuring optimal performance and failure prevention. TPM 2.0 with Intel® PTT support enhances security and system integrity, delivering a trusted and resilient computing platform.
