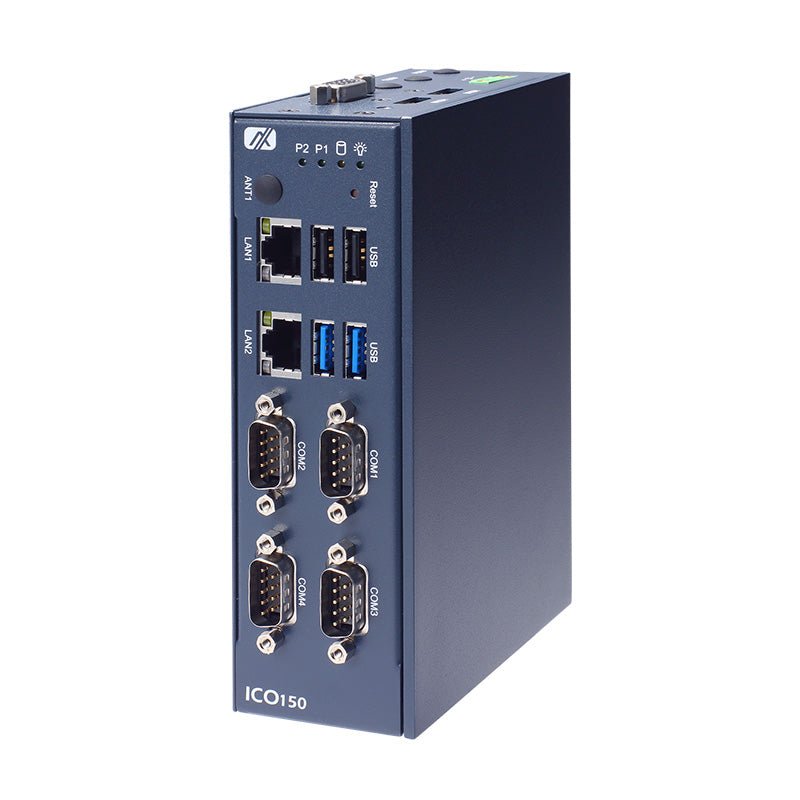

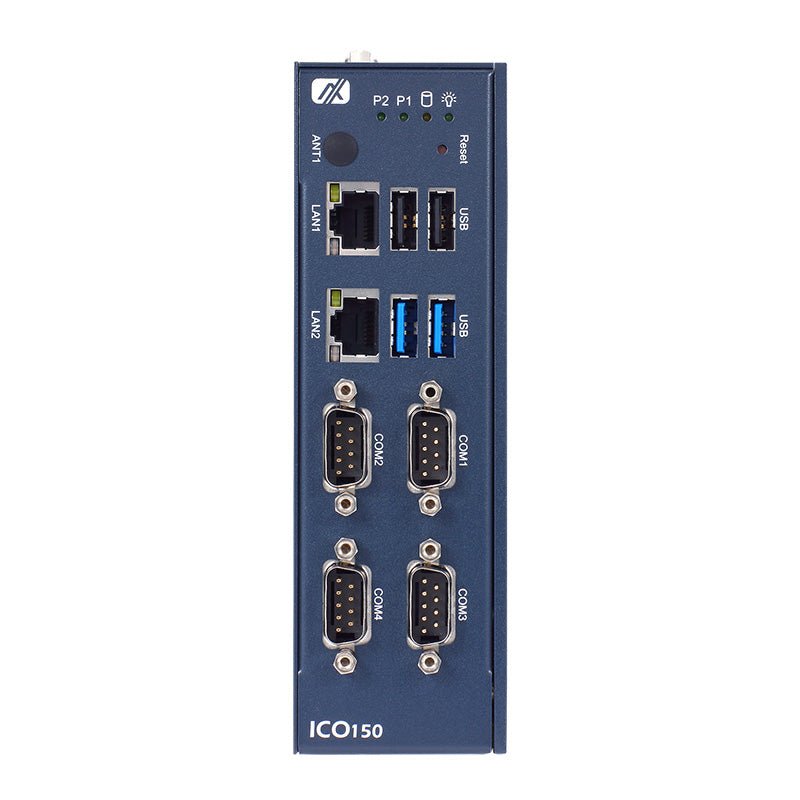

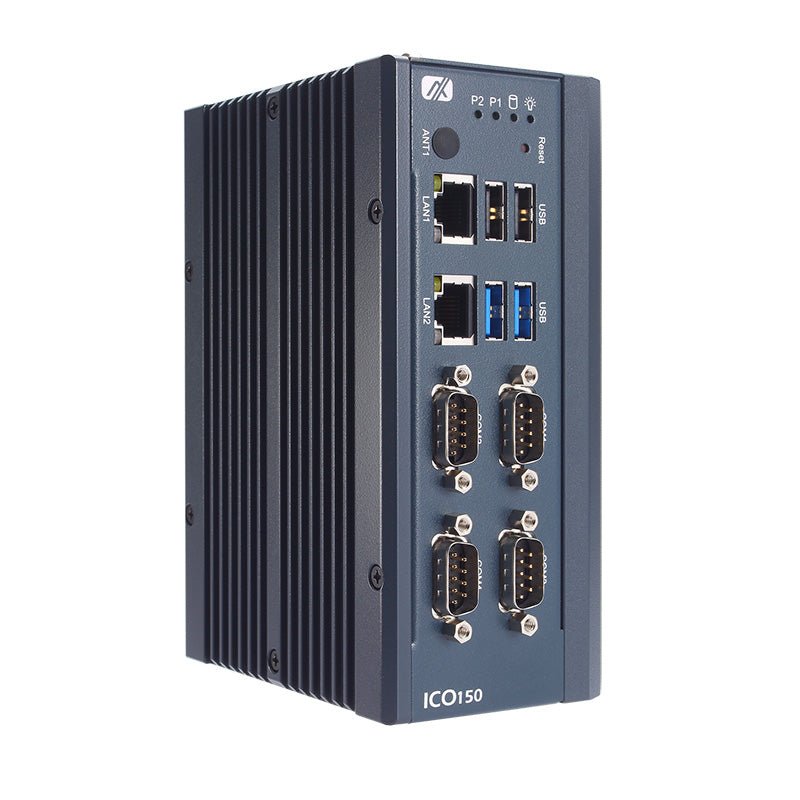

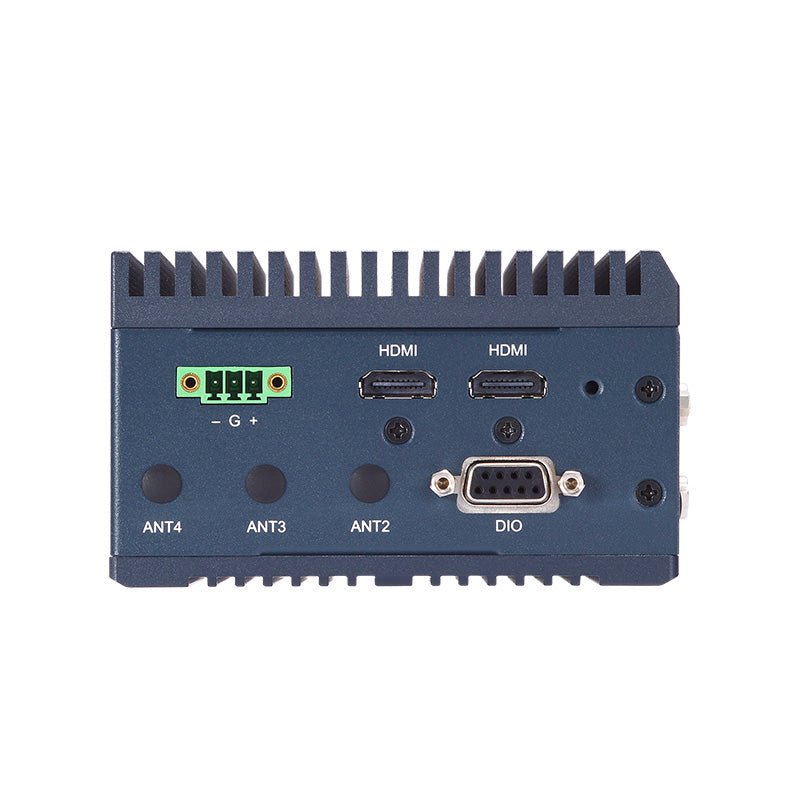

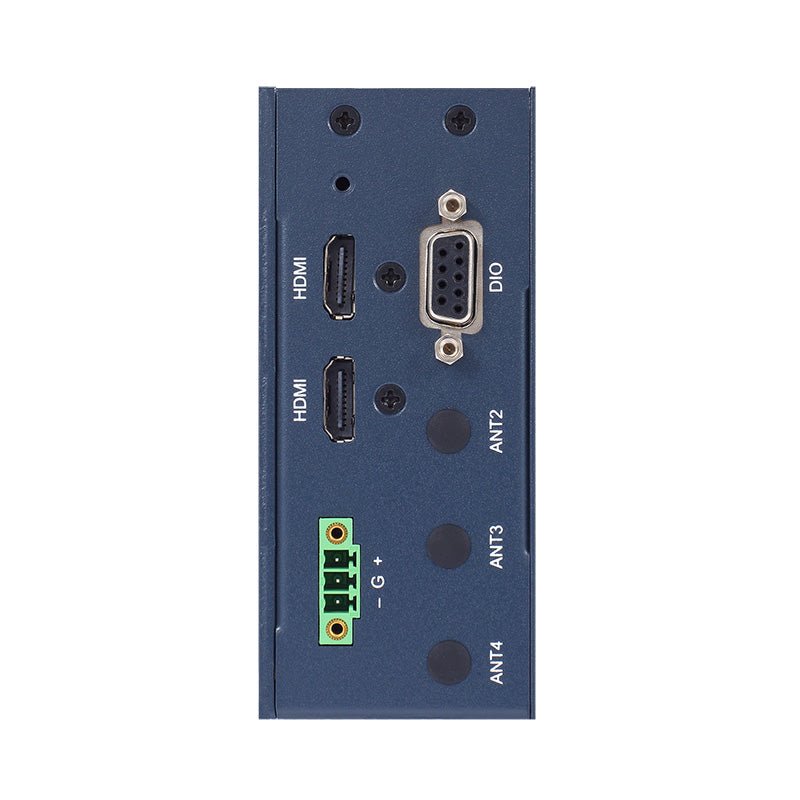

IoT Gateway ICO150

• Intel Atom® processor x7433RE
• 4 COM, 4 USB, 2 2.5GbE LAN, HDMI, and DIO
• 9 to 36 VDC wide range power input (typical: 12 to 24 VDC)
• OVP, UVP, OCP, and RPP power protection design
• Axiomtek EAPI for intelligent remote monitoring software integration

Axiomtek announced the release of a new ICO150 embedded computer. This fanless system, designed for DIN rail mounting, features an updated architecture based on the latest Intel Atom x7000RE series processors. The new product is positioned as a versatile solution for applications requiring a strict balance between performance, energy efficiency, and support for a wide range of communication interfaces.

Axiomtek's ICO150's computing power is based on the Intel Atom x7433RE processor. This quad-core chip operates at 1.5 GHz while maintaining an extremely low thermal design power (TDP) of 9 W, which is critical for passively cooled systems.

The system supports one DDR5-5600 SO-DIMM memory module with a capacity of up to 16 GB.

Axiomtek's ICO150 uses an M.2 Key B+M 2242 slot with NVMe support for data storage. A half-size Mini-PCIe slot is also available for mSATA or Wi-Fi modules. A full-size Mini-PCIe slot and a SIM card slot are available for mobile connectivity (4G/LTE).

The device is powered over a wide range of 9 to 36 VDC via a 3-pin terminal block. System safety is ensured by built-in overvoltage protection (OVP), undervoltage protection (UVP), overcurrent protection (OCP), and reverse polarity protection (RPP).

Axiomtek's ICO150 controller is a complete solution for industrial automation applications requiring high I/O port density and reliable operation in unattended environments.
