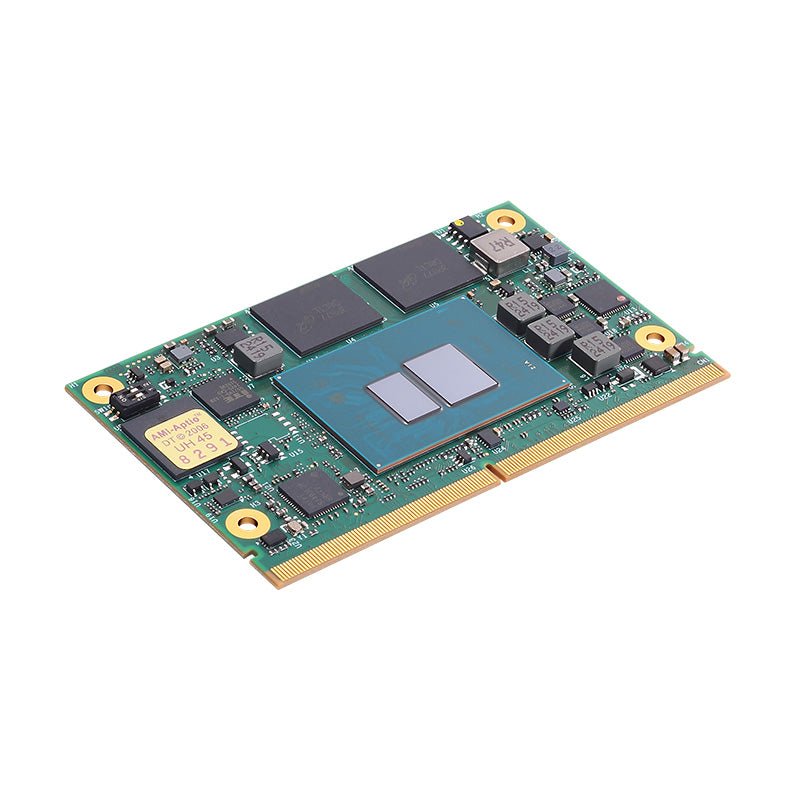

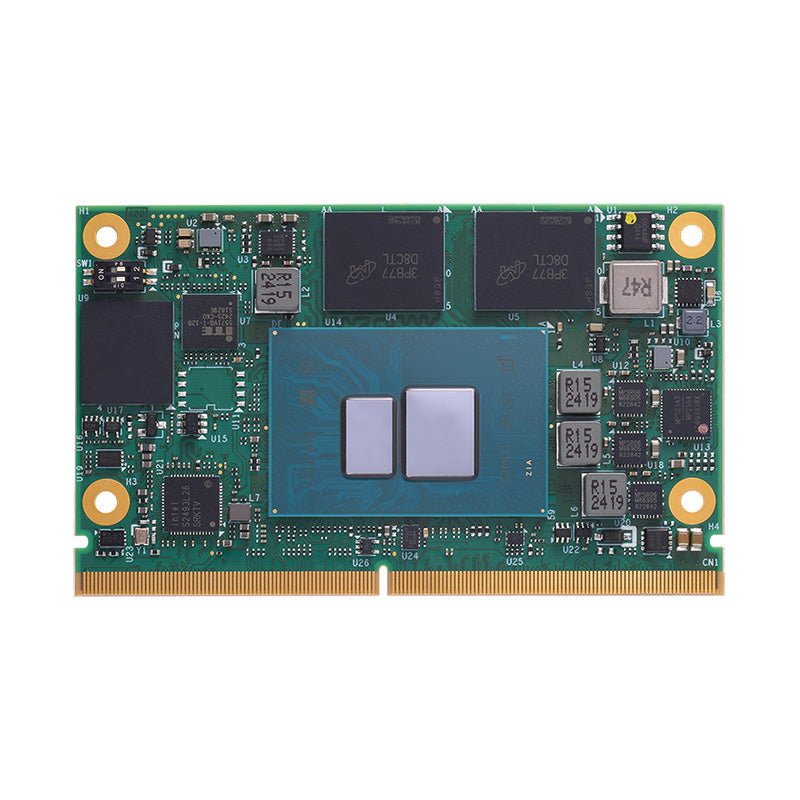

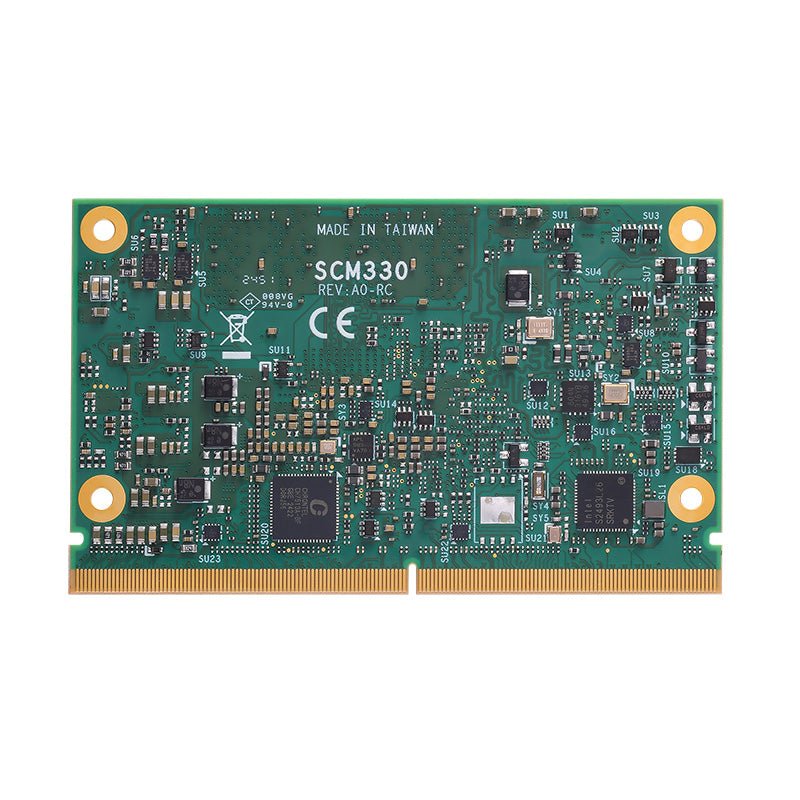

Industrial System on Module SCM330

• Intel® Core™/Pentium®/Celeron® or Intel Atom® processors x7000 series
• LPDDR5-4800 with IBECC support, up to 16GB
• Up to 4 lanes of PCI Express
• 1 SATA Gen3
• 2 USB 3.2 Gen.1 and 6 USB 2.0
• Supports eMMC5.1 for up to 128GB of memory
• Supports fTPM
• SMARC2.1.1 pinout compliance

Axiomtek's SCM330 is advanced System on Module engineered for next-generation embedded and edge computing applications. Powered by Intel Core, Pentium, Celeron, or Atom x7000 series processors, it delivers exceptional performance and energy efficiency in a compact SMARC 2.1.1 compliant form factor. Memory and storage capabilities are robust, featuring up to 16GB of LPDDR5-4800 with IBECC error correction for data integrity, plus eMMC5.1 support for up to 128GB of onboard storage. The module provides comprehensive connectivity through 4 lanes of PCI Express, 1 SATA Gen3 port, 2 USB 3.2 Gen.1 ports, and 6 USB 2.0 ports, enabling flexible integration with diverse peripherals and expansion cards. Security is prioritized with firmware TPM (fTPM) support, protecting critical data and enabling secure boot in industrial environments. The SCM330 is purpose-built for IoT gateways, industrial automation systems, edge AI processing, telecommunications infrastructure, and ruggedized applications where reliability, thermal efficiency, and standards compliance are essential. Its SMARC 2.1.1 pinout ensures seamless compatibility with existing carrier boards and OEM designs, reducing time-to-market for system integrators.
