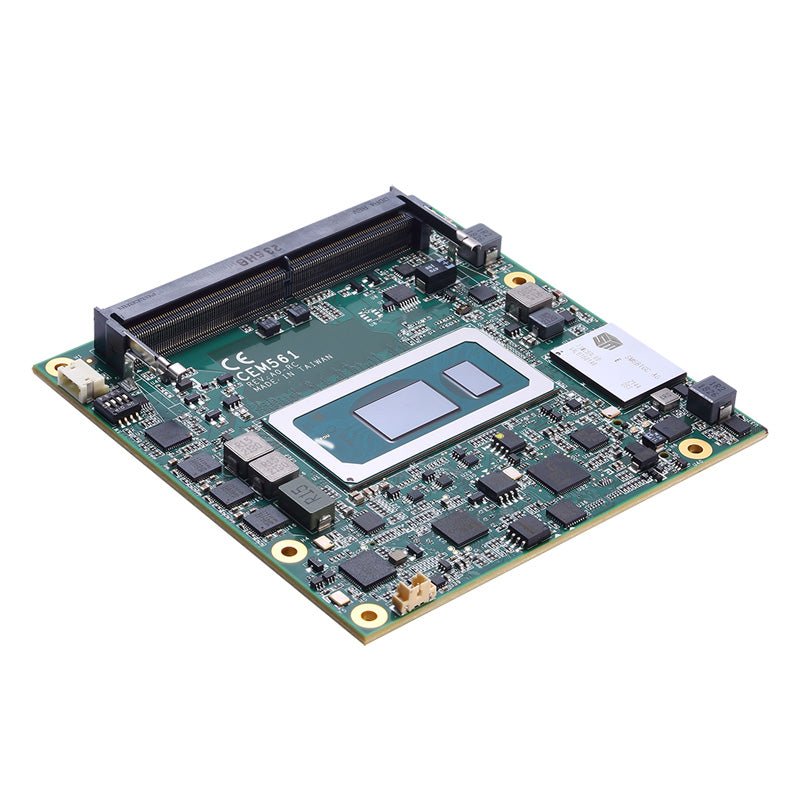

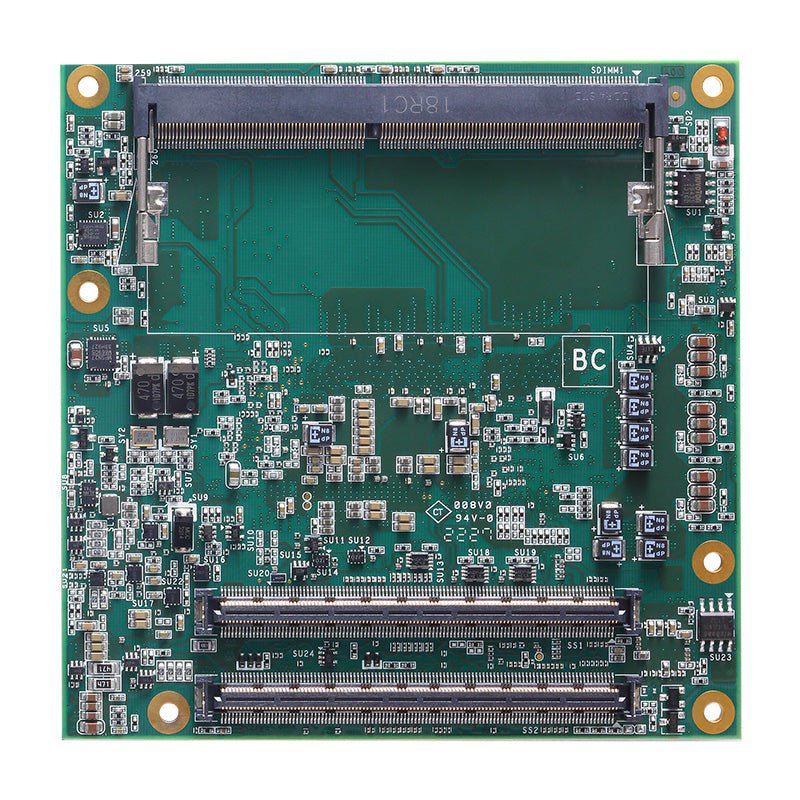

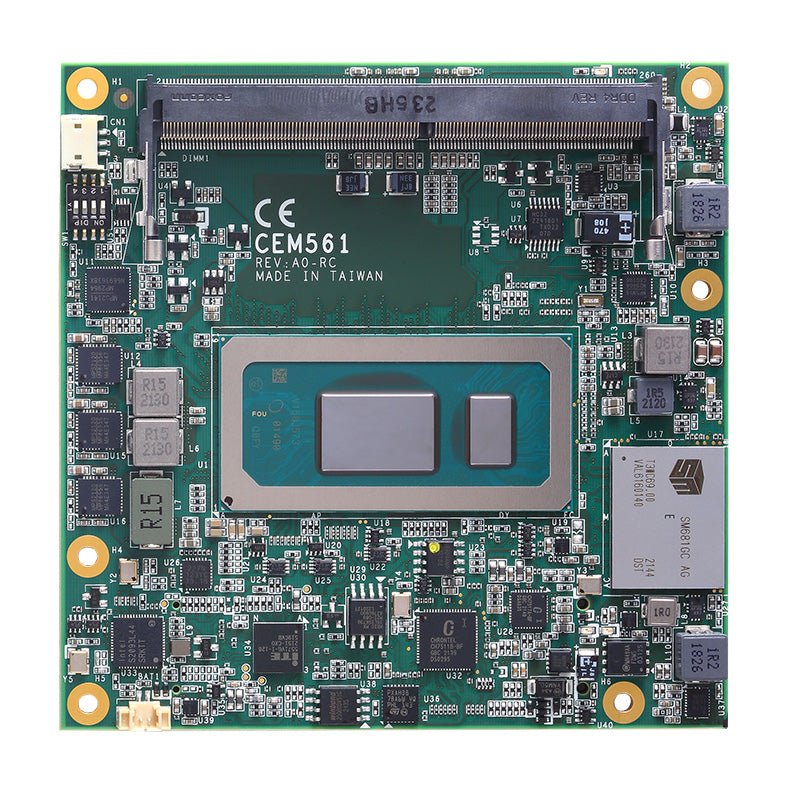

Industrial System on Module CEM561

• 13th/12th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (Raptor Lake U/Alder Lake U)
• Dual channel DDR4-3200 SO-DIMM for up to 64GB memory
• Up to 12 lanes of PCI Express
• 2 SATA 3.0
• 4 USB 3.2 and 8 USB 2.0
• Supports NVMe for up to 512GB
• Supports TPM 2.0

Axiomtek's CEM561 is a new COM Express® Type 6 compact CPU module powered by the 13th/12th generation Intel® Core™ processor (U Series). With up to two Performance-cores (P-core) and eight Efficient-cores (E-core), along with twelve threads, this system on module delivers superior performance while consuming less power. Its combination of performance, efficiency, and versatility makes it ideal for diverse edge computing applications, ranging from industrial automation and human-machine interfaces (HMI) to healthcare and machine control. In addition, engineered for exceptional performance in rugged industrial IoT environments, Axiomtek's CEM561 maintains reliable operation across temperatures ranging from -40°C to +85°C, making it suitable for crucial tasks in land defense, navigation, roadside monitoring, and more.

Axiomtek's CEM561 is equipped with dual-channel DDR4-3200 SO-DIMM, supporting up to 64GB of memory, alongside an optional NVMe SSD with up to 512GB capacity, ensuring rapid data access and transfer speeds,” said Chris Chiang, product manager of the IDS Division at Axiomtek. “Furthermore, with an enhanced Intel® Gen 9 Graphics Engine, Axiomtek's  CEM561 delivers vivid, high-quality visual support for up to 8K60 HDR video and supports three simultaneous displays through LVDS, VGA, and two Display Type interfaces. This makes it an ideal solution for demanding medical or multimedia imaging processing and control tasks.

Axiomtek's CEMa561 offers one PCIe x4 Gen4 (PEG) and five PCIe Gen3 slots (or eight PCIe Gen3 slots by request). It also features four USB 3.2 and eight USB 2.0 ports, as well as one LPC, one SPI, two TX/RX, and real-time I/O (GPIO, UART, I2C). Networking capabilities are enhanced with a 2.5GbE port featuring the Intel® Ethernet Controller I226. HD audio signals are supported, and two SATA 3.0 ports are provided for storage purposes. Additionally, built-in TPM 2.0 ensures hardware security for authentication purposes.
