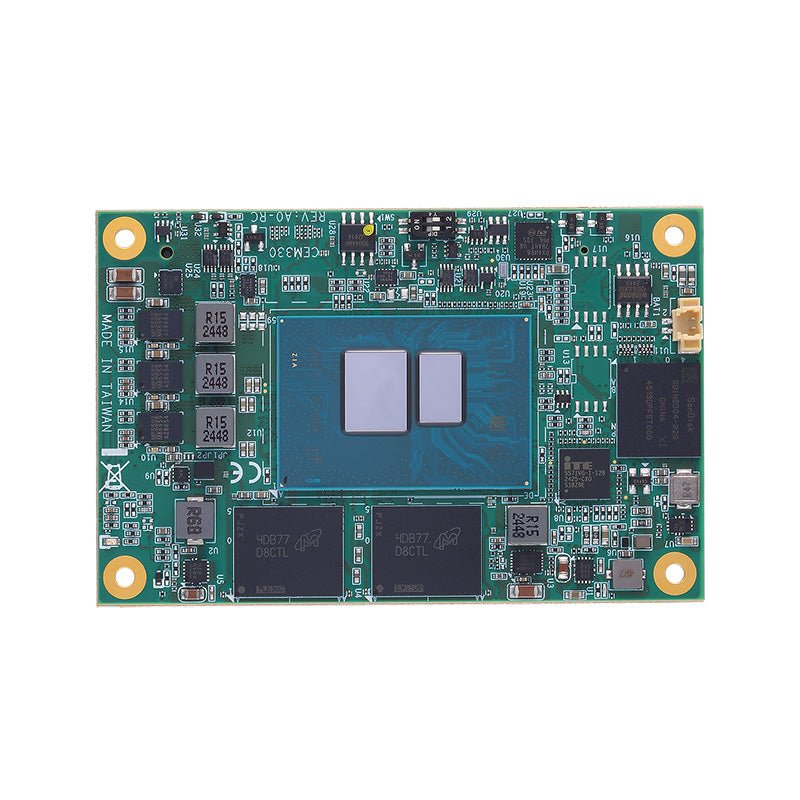

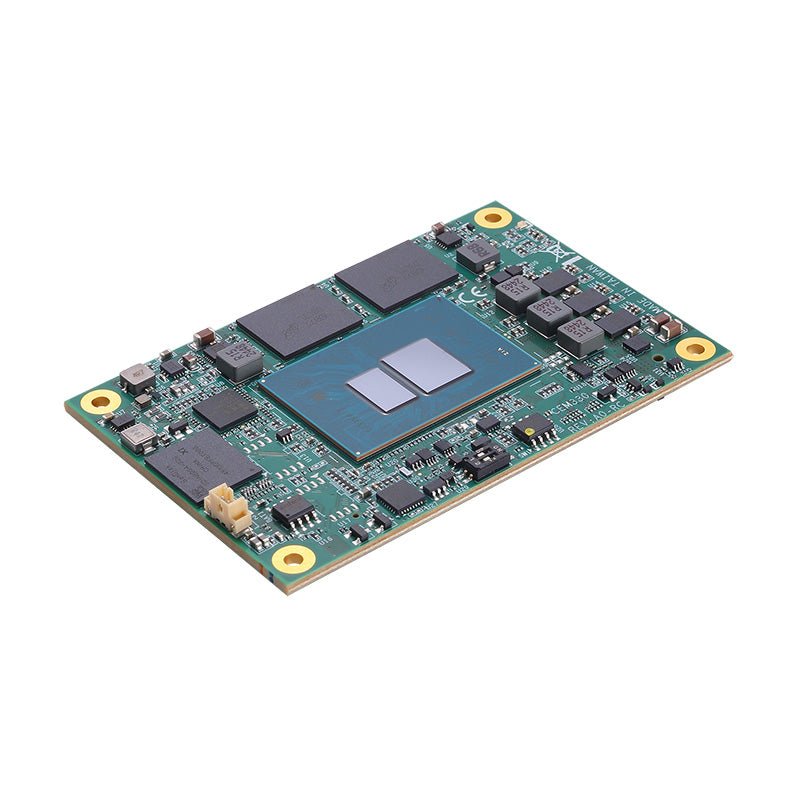

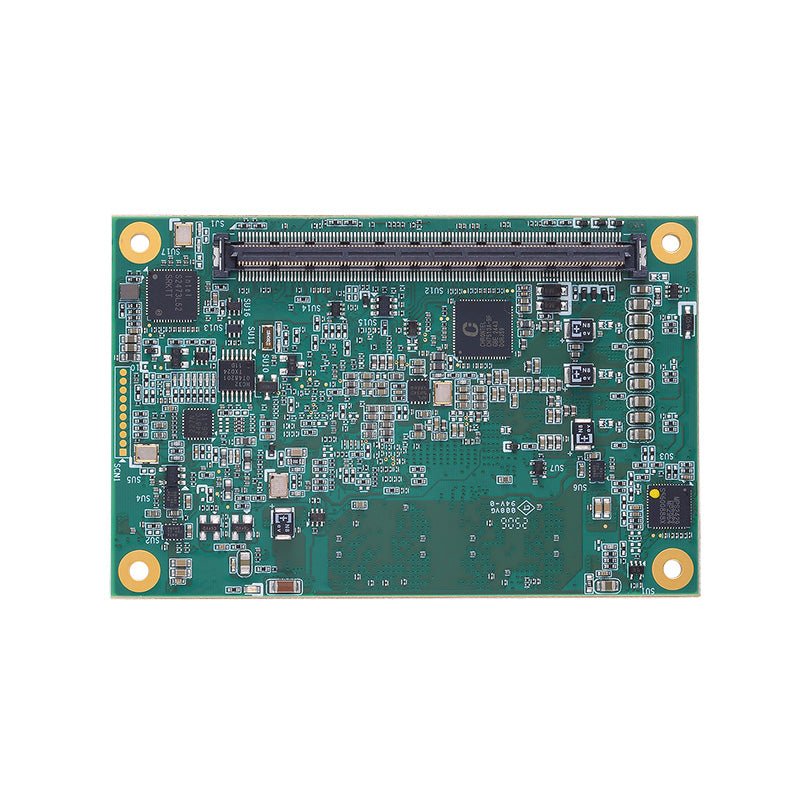

Industrial System on Module CEM330

• Intel Atom® X7000 or Intel® Core™ i3/N-series processors (Amston Lake/Alder Lake-N)
• Up to 16GB LPDDR5 memory onboard
• Supports up to 4 PCI Express lanes
• Up to 2 SATA 3.0
• 2 USB 3.2 and 8 USB 2.0
• eMMC and TPM 2.0 onboard

Axiomtek's CEM330 is a COM Express® Type 10 Mini module engineered to deliver a balanced combination of performance, compact design, and system flexibility for next-generation embedded and industrial applications. Powered by the Intel Atom® x7000 processor series or the Intel® Core™ i3 N-series processor, the CEM330 provides a scalable, cost-effective platform for system developers seeking fast time-to-market and long-term reliability.

Axiomtek's CEM330 is powered by Intel Atom® x7000 processor series or Intel® Core™ i3 N-series processor, offering an optimal balance of computing performance and power efficiency for embedded systems. It supports onboard LPDDR5-4800 memory up to 16GB and 32GB/64GB eMMC storage, ensuring fast data access and stable system operation. Intel® UHD Graphics delivers smooth visual performance for display-based applications.

Designed in the COM Express® Type 10 Mini form factor (84 x 55 mm), Axiomtek's CEM330 is ideal for space-constrained devices such as handheld systems and compact industrial equipment. Despite its small footprint, the module supports up to four PCI Express x1 lanes, up to two SATA 3.0 interfaces (optional), two USB 3.2 Gen 2 ports, and eight USB 2.0 ports, providing ample expansion flexibility for customized carrier board designs. Display options include LVDS and DDI, supporting resolutions up to 4K.

To accommodate diverse deployment environments, Axiomtek's CEM330 supports a wide input voltage range from 4.75V to 20V, maximizing compatibility across various power infrastructures. The module is available with industrial temperature support from -40°C to +85°C (with a proper thermal solution), making it suitable for harsh and mission-critical environments. Additional features such as TPM 2.0 and hardware monitoring further enhance system security and operational reliability.
