Moxa

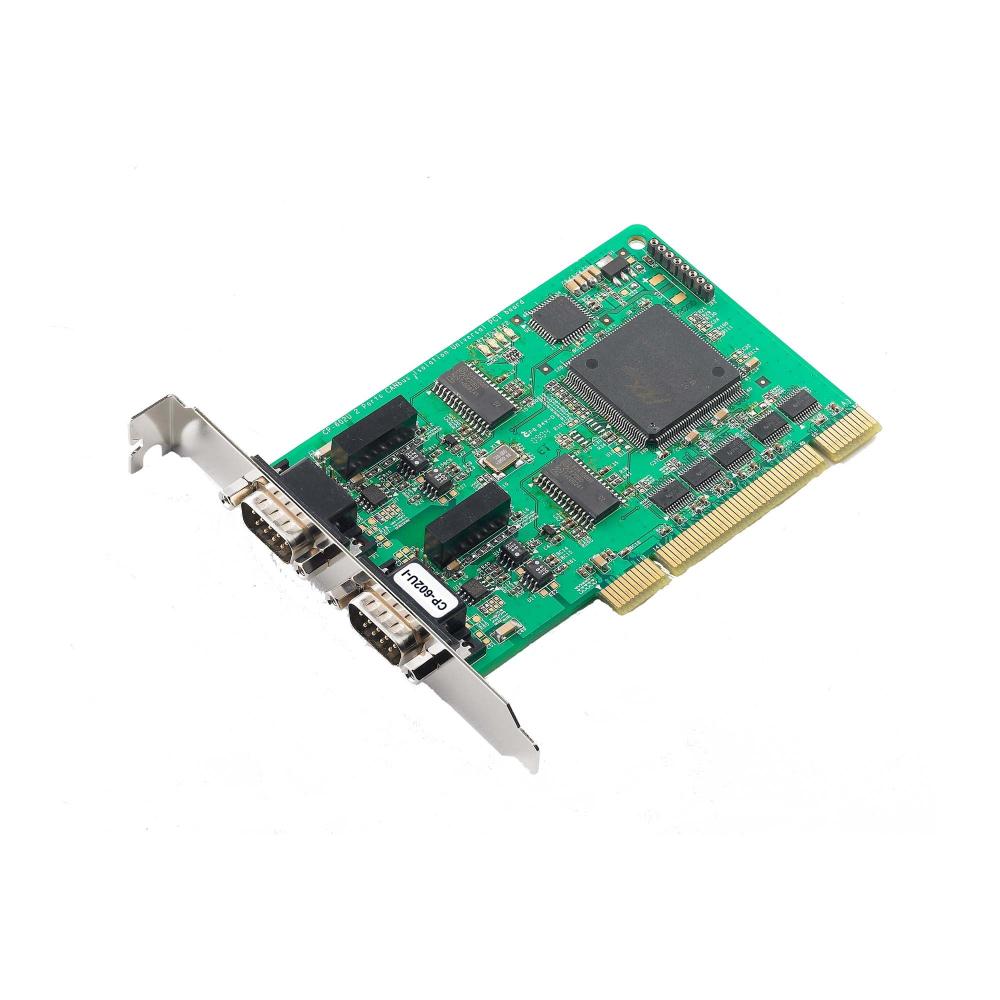

CANbus Universal PCI CP-602U-I

2 port CANbus Universal PCI board with 2 kV isolation

Datasheet
SGD $0.00
9% Tax included Shipping calculated at checkout.

- CAN 2.0A and CAN 2.0B supported
- Two independent CAN communication ports
- CAN transfer rate up to 1 Mbps
- 2 KV optical isolation protection
- LED for transmit/receive status on each port
- Optional 120 ohm terminal resistor for CAN bus network
- DLL library and examples included
- Windows driver provided



Moxa's CANbus serial boards are a result of more than 30 years of fieldbus interface board experience. These serial boards are rugged, high-quality CAN interface modules with features that include ESD surge protection and long-term driver support.

Moxa CP-602U-I CAN (Controller Area Network) interface board supports Universal PCI interface. As a stand-alone CAN controller, CP-602U-I provides two active CAN controllers with a DB9 connector on the same board. Featuring NXP SJA1000 and transceiver PCA82C251 to provide the bus arbitration and error detection.
