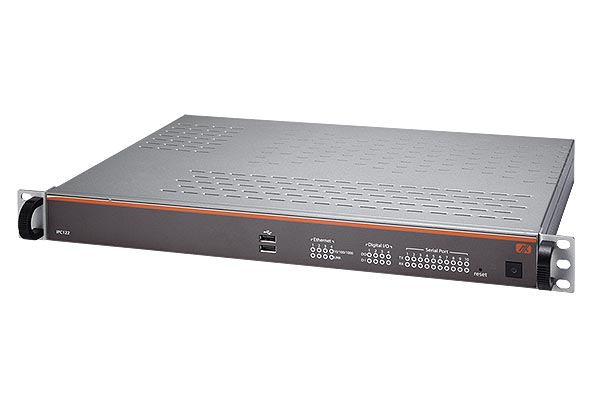

Fanless Computer IPC-122-833-FL

Features

- IEC 61850-3 and IEEE 1613 certified for substation automation
- Highly efficient heat conduction with fanless design
- Intel Atom processor N2800 (1.86 GHz)
- DDR3-800/1066 SO-DIMM supports up to 4 GB memory
- Isolated COM, LAN, CANBus and DIO ports
- One 2.5 inch SATA HDD and one CFast socket
- Wide temperature -10C ~ +55C for hash environment
- 100-240VAC and 134-370VDC wide range input

Introduction

Axiomtek IPC122-833-FL is certified by IEC 61850-3 and IEEE 1613 standards for electric power substation automation. The outstanding 1U rackmount industrial-grade computer system supports fanless operation and dual core Intel Atom processor N2800 as well as isolated CANBus, multiple isolated LAN ports, isolated COM ports and isolated DIO ports. Axiomteks new IPC122-833-FL hardened system offers wide range operating temperature from -10C to +55C and supports 100~240VAC and 134 ~ 240VDC wide range power input for mission-critical or unconstrained thermal environments, such as: electric power substation, condition monitoring, transportation, factory automation and more.IEC 61850-3 and IEEE 1613 certified for substation automation
