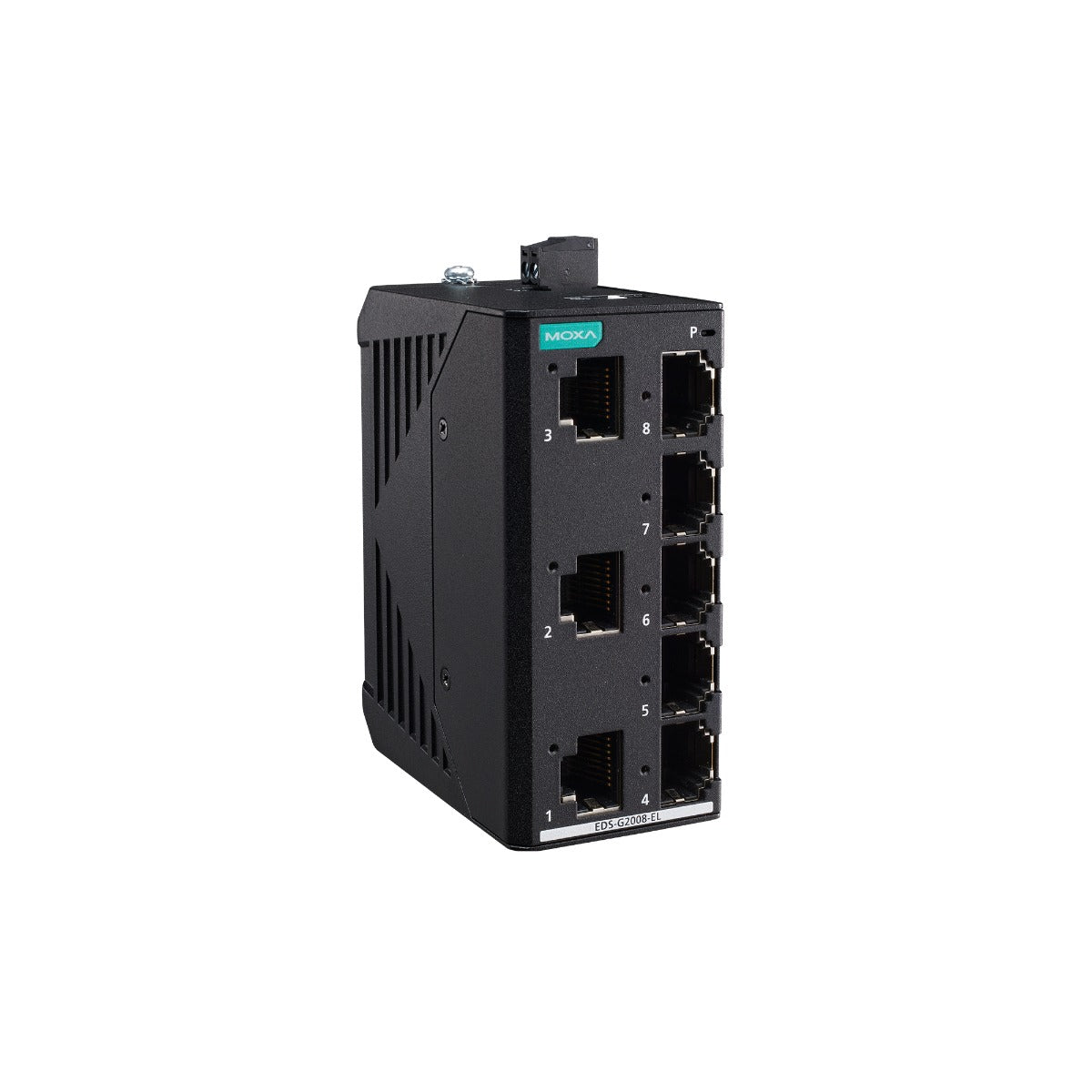

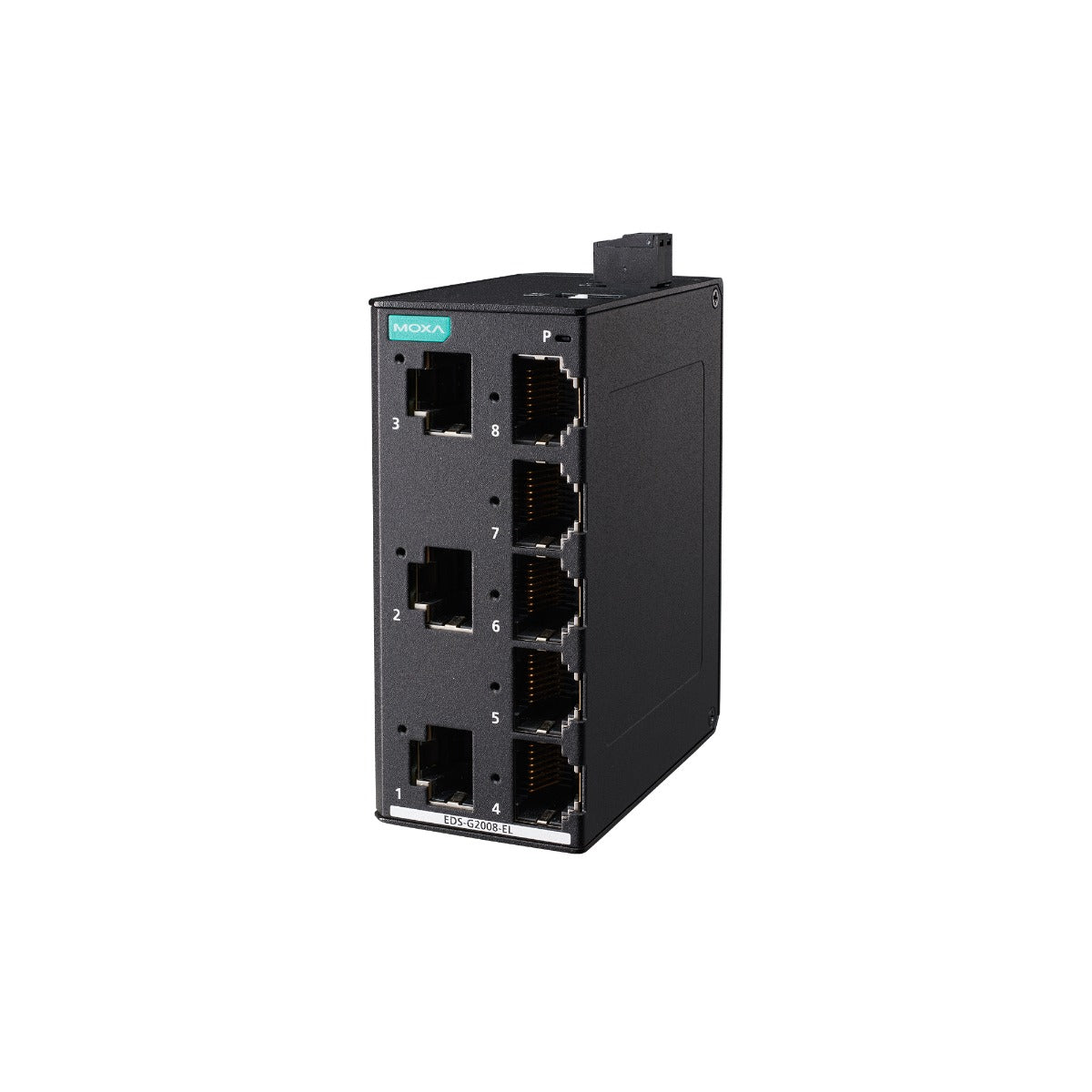

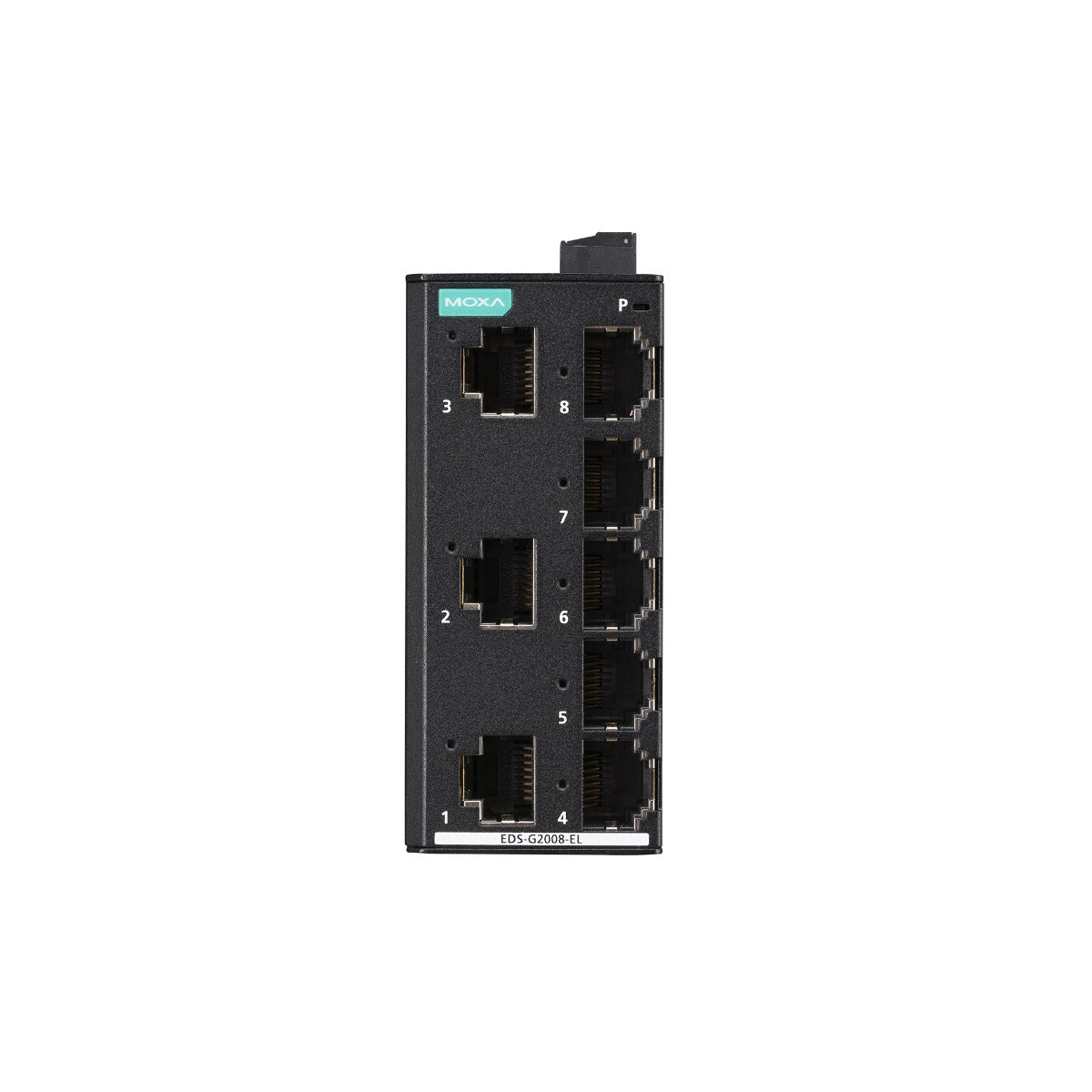

Ethernet Switch EDS G2008-EL

- Full Gigabit Ethernet ports
- 12/24/48 VDC power input
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- Overload current protection
- Reverse polarity protection
- Configurable broadcast storm protection
- IEC 61000-4 Certified EMS Protection Design against ESD, RS, EFT, Surge, CS and PFMF
- IP40-rated metal housing, weighs 120g (18 x 81 x 65mm)
- Wide operating temperature range -40 to 75C (optional -T models)

Moxa EDS-G2008-EL/ELP Series has a 8-port combination to simplify network expansion. There are two housing types available for the user to select depending on the requirements of their application. The ELP has a plastic housing and the EL has a metal housing. The compact switches provide a cost-effective solution for your industrial Ethernet connection requirements.

Moxa EDS-G2008-EL unmanaged industrial Ethernet switches offers eight Gigabit Ethernet ports. Suitable for applications that require simple industrial Ethernet connections. Moxa EDS-G2008-EL Series allows users to enable/disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. EDS-G2008-EL Series features a compact and rugged IP40 metal housing to ensure suitability for use in industrial environments.

EDS-G2008-EL featrues 12/24/48 VDC single power input and high-level EMI/EMC capabilities. Moxa EDS-G2008-EL will undergo a 100% burn-in test to ensure reliable operations after deployment. Moxa EDS-G2008-EL Series has a standard operating temperature range of -10 to 60°C. Wide-temperature (-40 to 75°C) models are available.
