Moxa

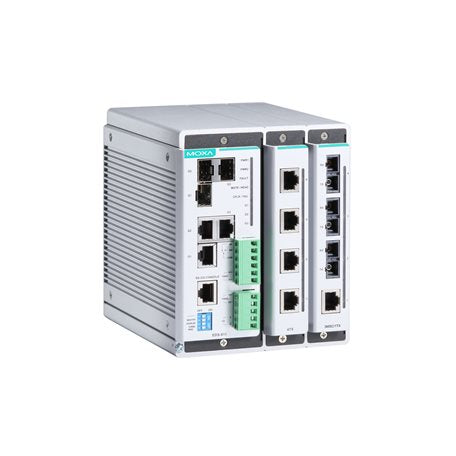

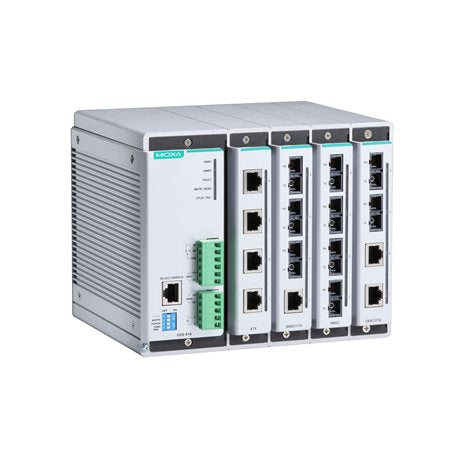

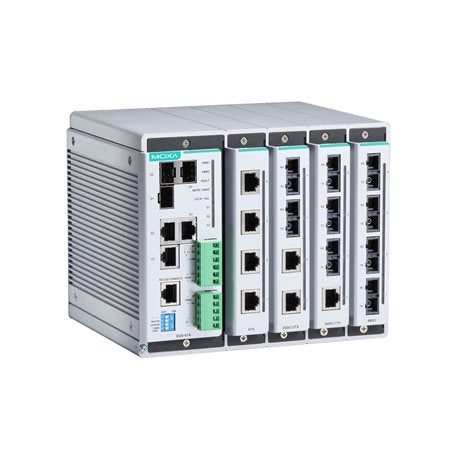

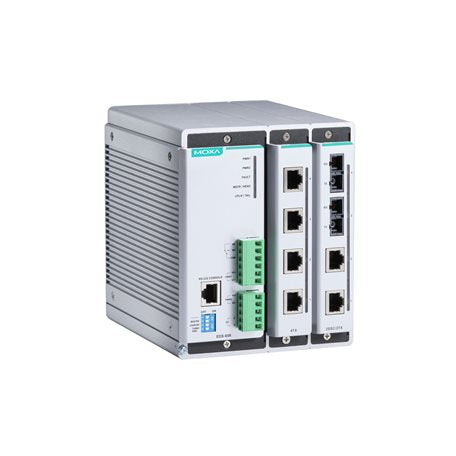

Ethernet Switch EDS 600 Series

Compact modular managed Ethernet switches

Datasheet
SGD $0.00
9% Tax included Shipping calculated at checkout.

- Hot swap media modules for continuous operation
- Turbo Ring and Turbo Chain (recovery time < 20 ms at full load), and RSTP/STP (IEEE 802.1w/D)
- IPv6 Certified
- SNMP Inform for ensuring reliable event management
- LLDP for automated topology discovery
- DHCP Option 82 for IP address assignment with different policies
- IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
- Modbus/TCP industrial Ethernet protocols supported
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
- Port Trunking for optimum bandwidth utilization
- SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- SNMPv1/v2c/v3 for different levels of network management
- RMON for efficient network monitoring and proactive capability
- Bandwidth management prevents unpredictable network status
- Lock port function for blocking unauthorized access based on MAC address
- Port mirroring for online debugging
- Automatic warning by exception through e-mail, relay output
- Digital inputs to integrate sensors and alarms with IP networks



Introduction



The versatile modular design of Moxa EDS-600 series Ethernet switch allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. EDS-600ﾒs modular design allows user to install up to 3 Gigabit Ethernet ports and 16 Fast Ethernet ports. Models with an extended operating temperature range of -40 to 75C are also available. The EDS-600 series supports several reliable and intelligent functions, including IEEE 1588 PTP V2, Modbus/TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SSH, SNMPv3 and more.



Additional Features and Benefits


Command line interface (CLI) for quickly configuring major managed functions

SNMP Inform for ensuring reliable event management

LLDP for automated topology discovery

DHCP Option 82 for IP address assignment with different policies

Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

Compatible with PROFINET protocol for transparent data transmission

Port mirroring for online debugging

IGMP snooping and GMRP for filtering multicast traffic

Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

Port Trunking for optimum bandwidth utilization

SNMPv1/v2c/v3 for different levels of network management

RMON for proactive and efficient network monitoring

Bandwidth management to prevent unpredictable network status

Lock port function for blocking unauthorized access based on MAC address

Automatic warning by exception through email and relay output
