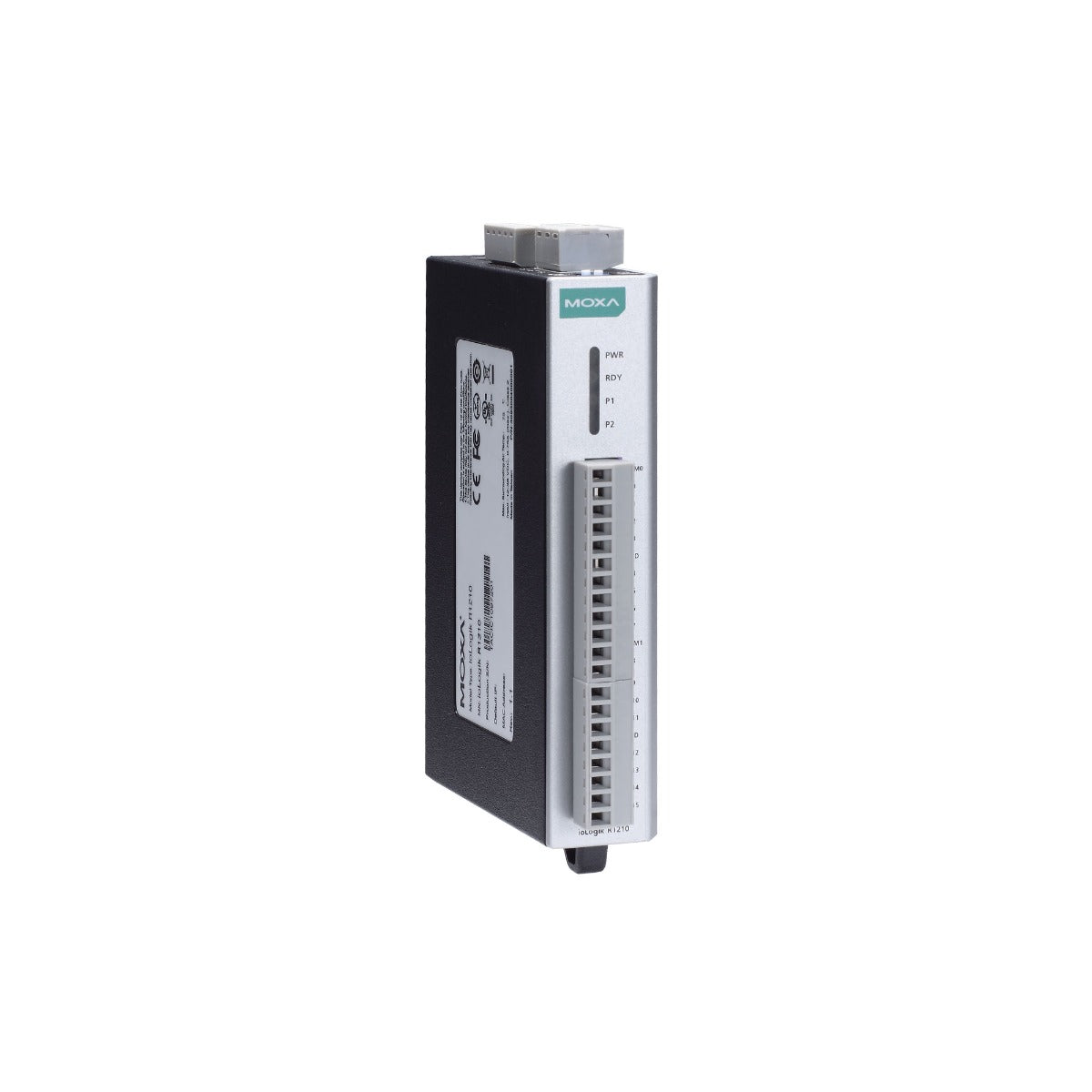

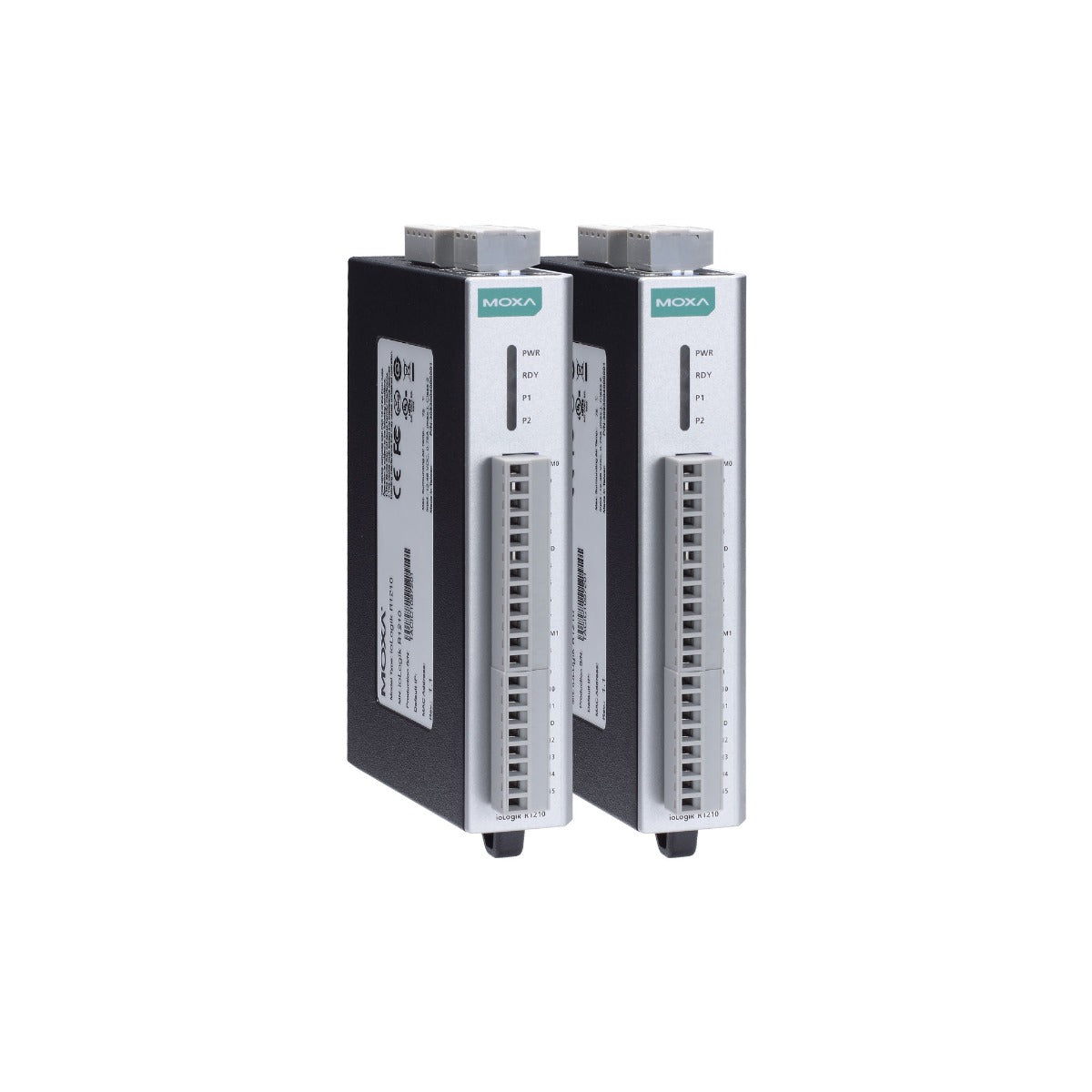

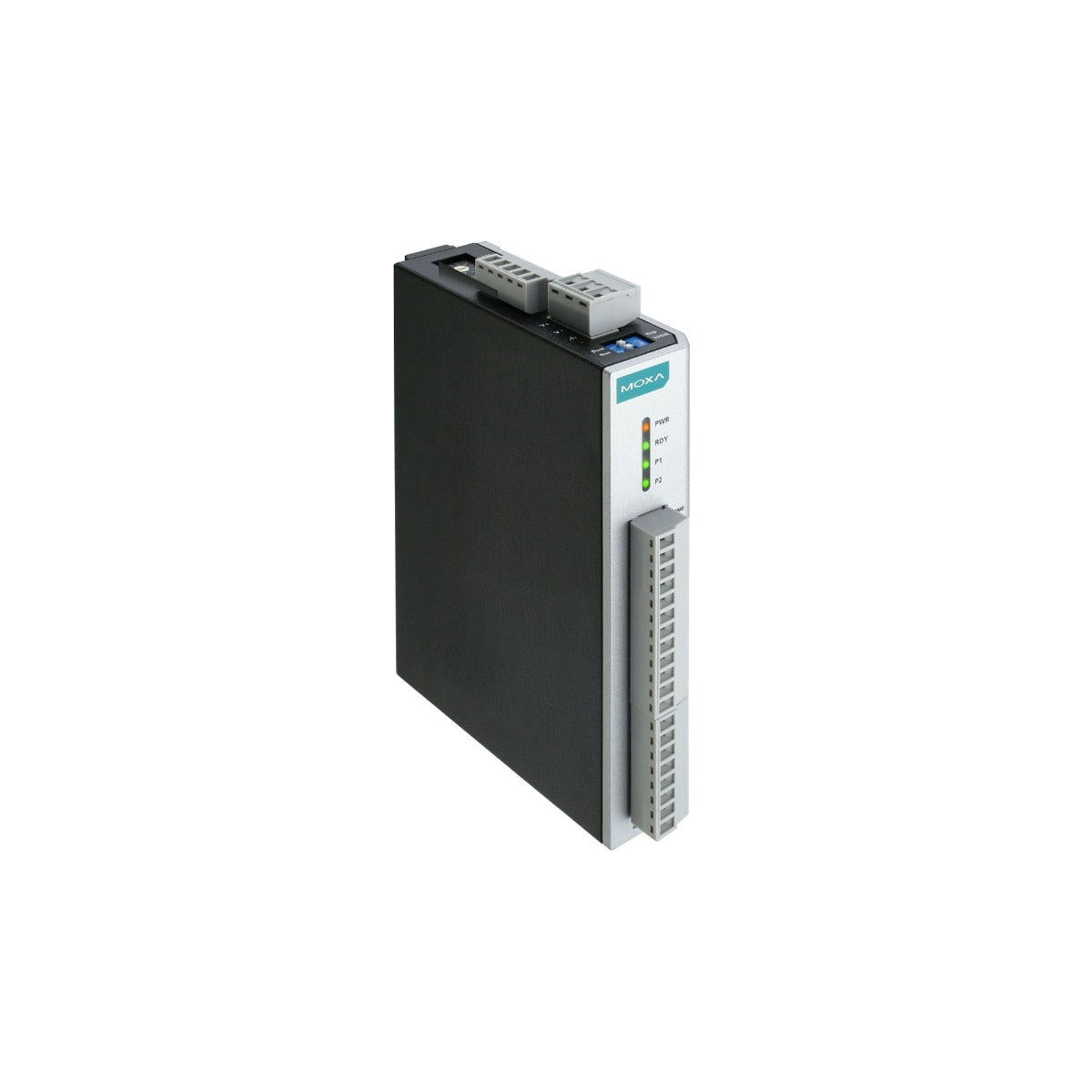

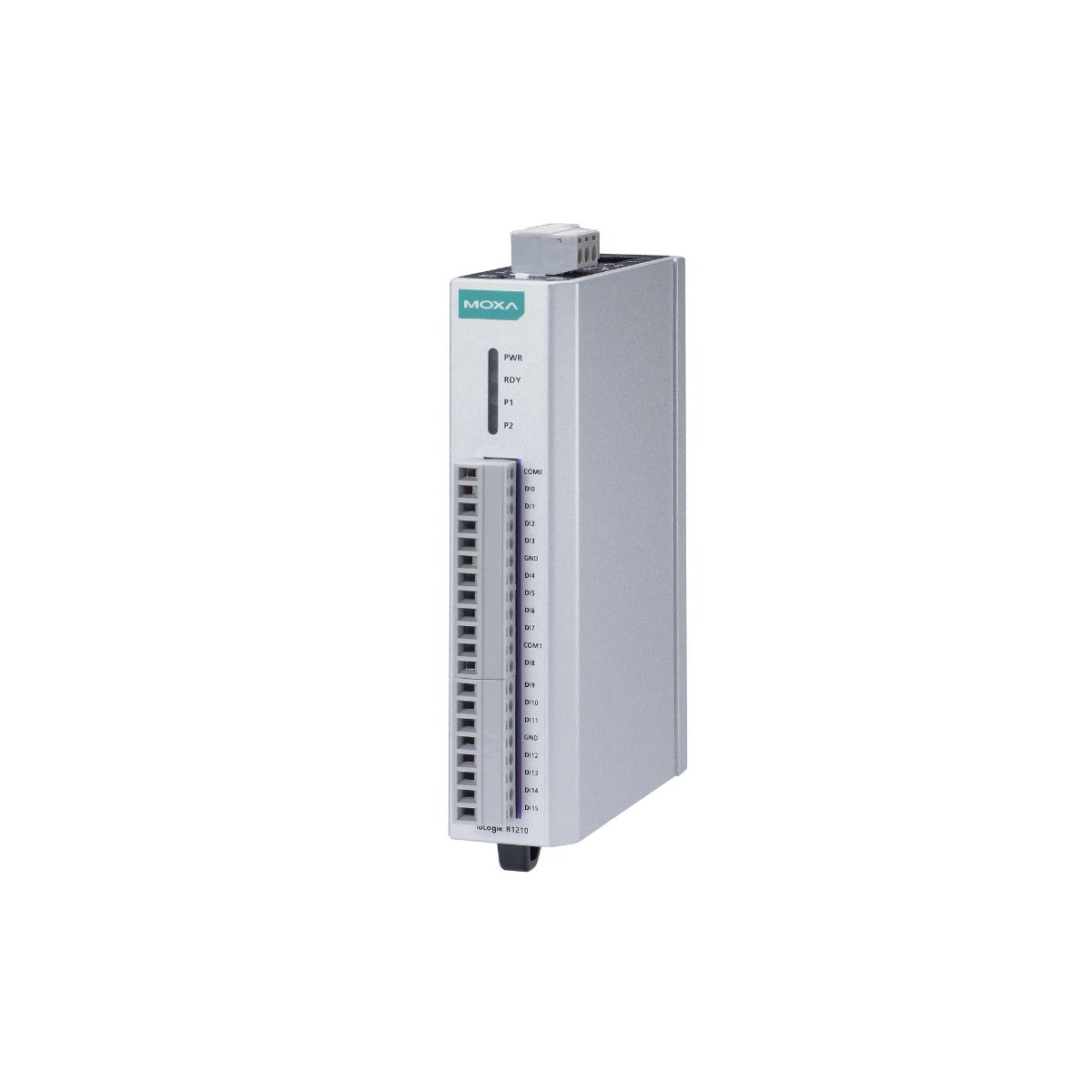

Serial Remote I/O ioLogik R1200 Series

- Dual RS-485 remote I/O with built-in repeater
- Supports the installation of multidrop communications parameters
- Install communications parameters and upgrade firmware via USB
- Upgrade firmware through an RS-485 connection
- Wide operating temperature models available for -40 to 85°C (-40 to 185°F) environments

Simplify integration of analogue and digital I/O with Moxa ioLogik serial remote I/O solutions. Using serial RS485 communication protocol for data transmission, Moxa serial remote I/O products converts data from Modbus RTU protocol. Each compact ioLogik R1200 product features inbuilt repeater which extends connected nodes from 32 to 99. Designed for harsh environment, iologik R1200 has isolation and surge protection. Wide temperature models operate from -40 to 85C.

Moxa ioLogik R1200 Series RS-485 serial remote I/O devices are perfect for establishing a cost-effective, dependable, and easy-to-maintain remote process control I/O system. Remote serial I/O products offer process engineers the benefit of simple wiring, as they only require two wires to communicate with the controller and other RS-485 devices while adopting the EIA/TIA RS-485 communication protocol to transmit and receive data at high speed over long distances. In addition to communication configuration by software or USB and dual RS-485 port design, Moxa’s remote I/O devices eliminate the nightmare of extensive labor associated with the setup and maintenance of data acquisition and automation systems. Moxa also offers different I/O combinations, which provide greater flexibility and are compatible with many different applications.

Easy-to-Use Software Interface for Easy Maintenance
Bundled with Moxa’s free easy-to-use ioSearch software, users can quickly access ioLogik R1200 device’s status and settings with a user-friendly GUI. Moxa ioSearch software also provides an easy method for updating firmware for all ioLogik R1200 devices over an RS-485 network. This allows remote firmware update.  When more than one ioLogik R1200 are on the same RS-485 network, you no longer need to turn hundreds of dials during setup. Instead, simply configure and duplicate each ioLogik R1200’s baudrate and mode through the graphical user interface. This convenient software feature reduces maintenance engineers' effort, and greatly simplifies upgrading your device's configuration compared to traditional approaches.

Innovative Hardware Design Reduces Deployment Effort and Enhances Maintenance Efficiency
As the industry’s first RS-485 serial remote I/O with USB design, Moxa provides an innovative solution for upgrading and configuring RS-485 remote I/O communication devices and firmware. Simply upload the configurations to a USB drive, plug it into the field device, and all the configurations and firmware updates will upload to the field device automatically.

Cost-Saving Hardware Design for Backup and Redundancy
Moxa’s ioLogik R1200 Series provides dual RS-485 ports so that when one of your RS-485 ports is damaged, you can quickly switch to the other RS-485 port for quick testing or repair. With the ioLogik R1200, dual RS-485 ports can be used to set up wiring, provide computer redundancy, or back up your network using two computer topologies. For wiring redundancy, when your computer detects that one of the RS-485 connections is not responding, it can quickly switch over to the other RS-485 line to guarantee continuous communication between field sensors and the central computer.
