Moxa

Embedded Computer DRP-A100 Series

Fanless Din-rail Embedded System with Intel Atom X processor and high-density connectivity interface

Datasheet
SGD $0.00
9% Tax included Shipping calculated at checkout.

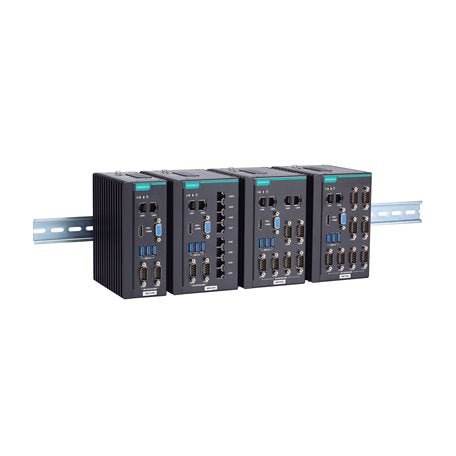

- Fanless, Compact DIN-rail mountable design
- Intel Atom Intel Atom x6211E dual-core 1.30 GHz or x6425E quad-core 2.0 GHz processor
- Rich interface options for up to 8 RS232/422/485 serial and 10 10/100/1000 Ethernet ports
- VGA and HDMI display output
- 3 USB 3.0 ports
- Support for Windows 10, 11 and Linux Operating System
- Operating temperature range -30 to 60C
- DNV, CID2, ATEX and IECEx certified

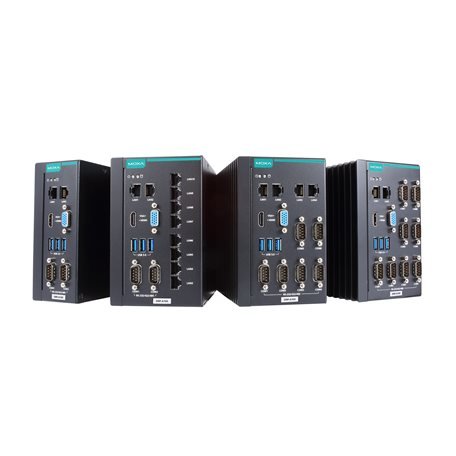

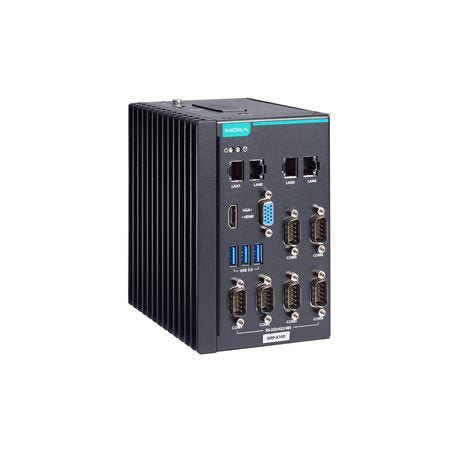

Moxa DRP-A100 Series DIN-rail mountable computers are powered by either an Intel Atom® x6211E dual-core 1.30 GHz or an Intel Atom® x6425E quad-core 2.0 GHz processor. This embedded platform features a rich set of interface of up to 8 software-selectable RS-232/422/485 serial ports and up to 10 gigabit Ethernet ports. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion.



Moxa DRP-A100 compact computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. A unique battery-fastener cover secures the battery in place and ensures stability in all operating environments while a trap-door design for the battery slot enables easy battery swapping without having to remove the cover. The DRP-A100 Series is a reliable, durable, and versatile yet user-friendly computing platform for industrial applications.



Moxa industrial computers are integrated with Windows drivers and I/O controller utilities based on the Microsoft Windows up-to-date version so that you can use the most compatible hardware-software combinations in your application field. Moxa also offers x86 Linux SDK for easy deployment. Moxa Linux SDK includes peripheral drivers, peripheral control tools, and configuration files. The SDK also provides deployment functions such as build & installation log, dry-run, and self-test on target models.
