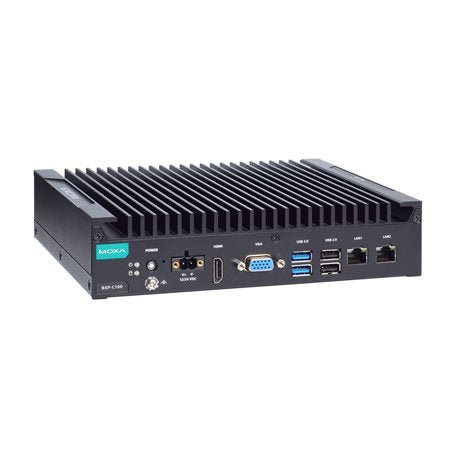

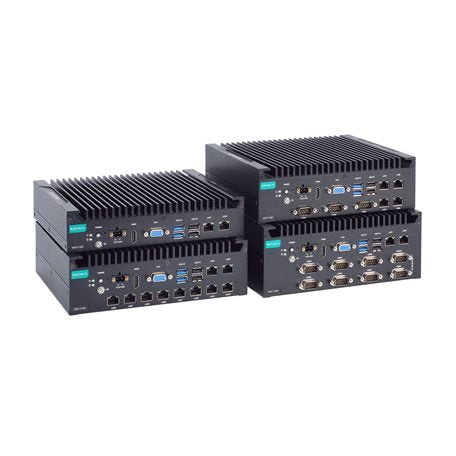

Embedded Computer BXP-C100 Series

- Industrial box-type computer with fanless design
- 11th Gen Intel® Celeron® or Intel® Core® processor

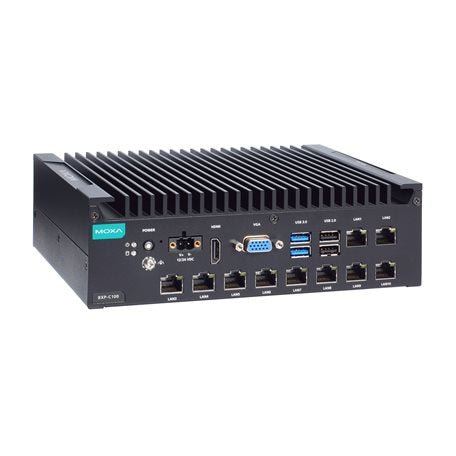

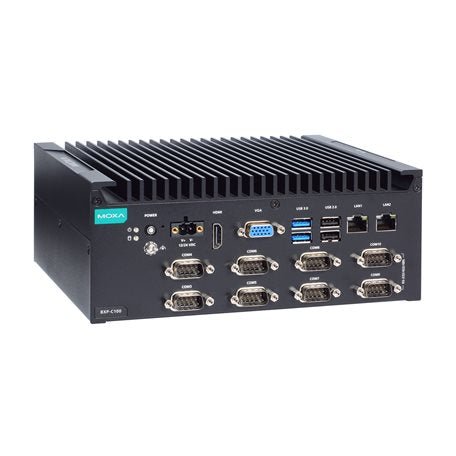

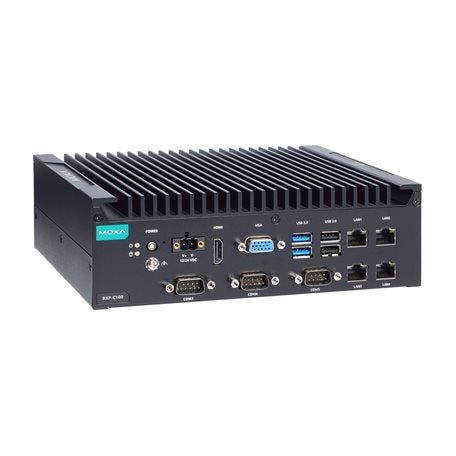

- Rich interface for up to 10 RS232/422/485 serial and 10 10/100/1000 Ethernet ports

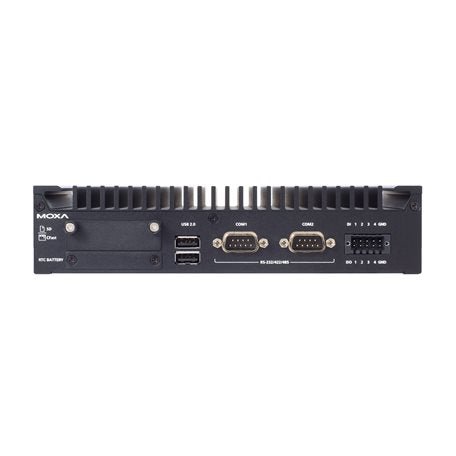

- 4 digital inputs and 4 digital outputs in a terminal block
- VGA and HDMI display output in front panel
- 2 USB 3.0 ports and 4 USB 2.0 ports
- Compact size to fit most field applications
- Operating temperature range -30 to 60°C

Moxa BXP-C100 Series wall-mount computers are compact, well-designed, and rugged for industrial applications. LED indicators help users monitor performance and identify trouble spots, multiple serial ports allow you to connect different devices for wireless operation. Moxa BXP-C100 wall-mount computers are powered by a 11th Gen Intel Celeron or Intel Core i5, or i7 processor. This industrial embedded system come with a rich set of interface options including up to 10 software-selectable RS-232/422/485 serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs.

The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. The unique battery fastener cover design for the battery slot secures the battery in place to ensures stability in all operating environments. Moxa BXP-C100 embedded system can withstand a temperature range of -30 to 60°C. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C100 Series is an intelligent computing platform that fulfills both OT and IT requirements in industrial environments.

Moxa industrial computers are integrated with Windows drivers and I/O controller utilities based on the Microsoft Windows up-to-date version so that you can use the most compatible hardware-software combinations in your application field. Moxa also offers x86 Linux SDK for easy deployment. Moxa Linux SDK includes peripheral drivers, peripheral control tools, and configuration files. The SDK also provides deployment functions such as build & installation log, dry-run, and self-test on target models.
