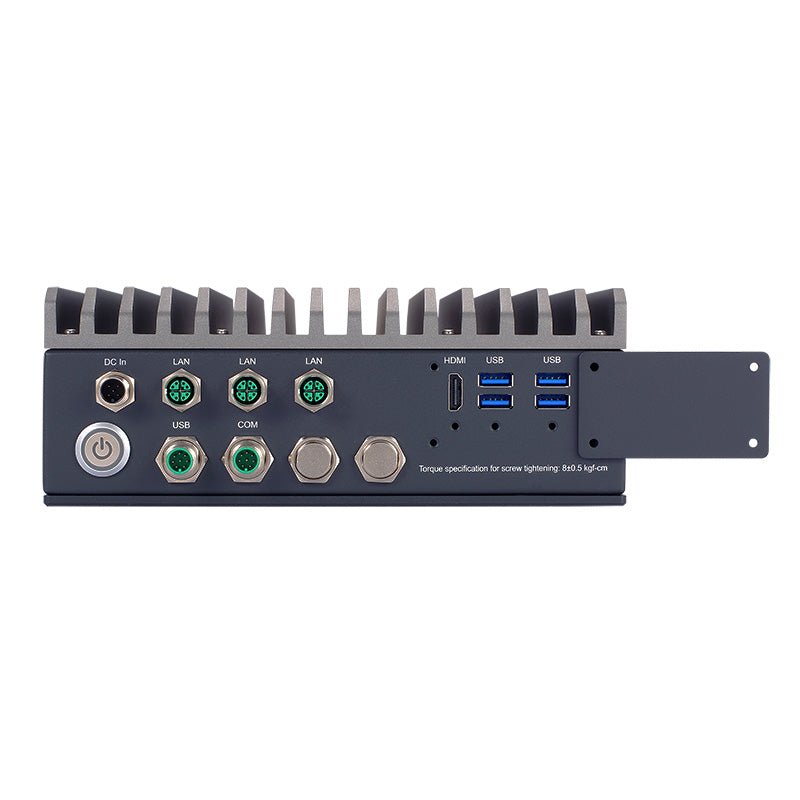

Embedded Computer IPC980

• M12 connectors and IP67 housing
• Optional I/O for expansion
• Intelligent power management: Ignition, and USB power on/off control
• EN 61000-6-2 certified

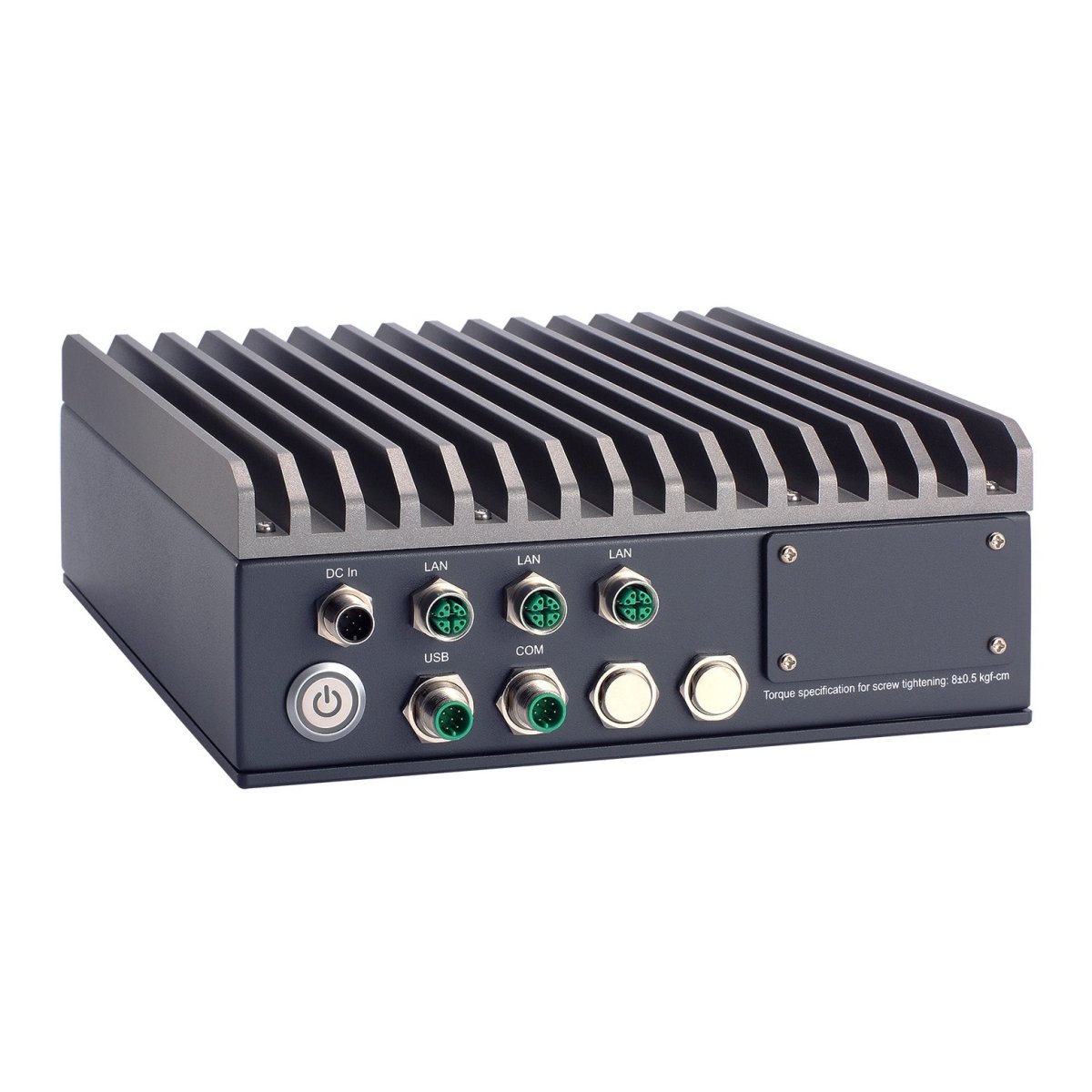

Axiomtek's IPC980 is a compact, powerful, and highly flexible IP67-rated industrial system designed for reliable operation in demanding industrial environments.

Powered by Intel® Core™ processors and supporting high-speed DDR5 memory, the IPC980 delivers robust computing performance in a fanless, sealed enclosure. Its compact form factor and front-access I/O design enable flexible installation while ensuring stable operation in environments exposed to dust, moisture, vibration, and temperature variations. Featuring rugged M12 connectors and intelligent power management with ignition control and USB power on/off functionality, Axiomtek IPC980 is ideally suited for industrial automation, rail monitoring, and outdoor energy infrastructure applications.

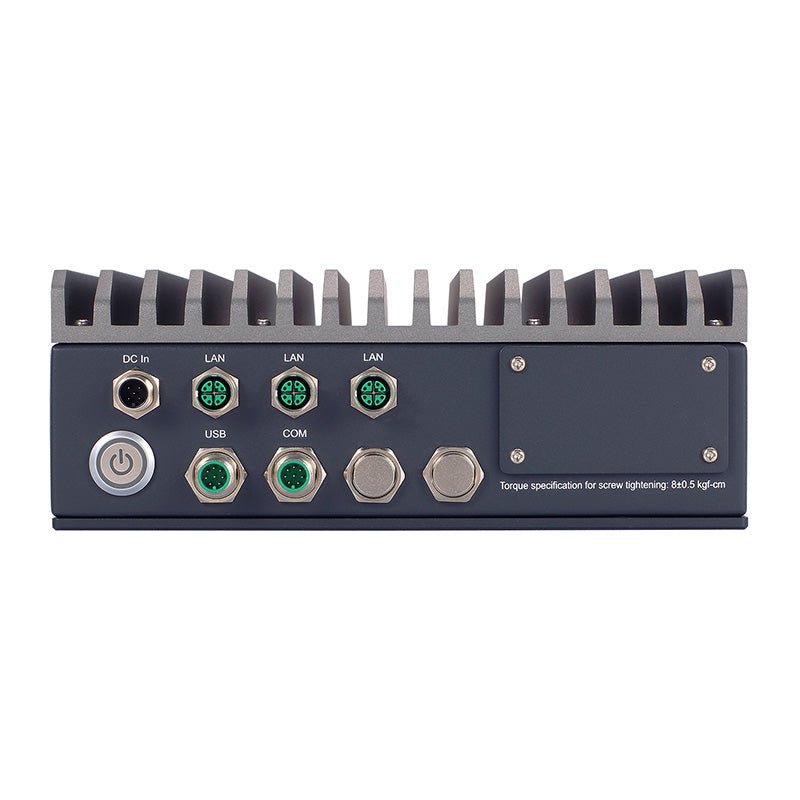

Axiomtek's IPC980 is equipped with industrial-grade M12 A-coded and X-coded connectors for power, Ethernet, serial, and USB interfaces, ensuring secure and vibration-resistant connections in transportation and industrial settings. In addition to high-speed 2.5GbE and GbE Ethernet, the system supports serial communication, multiple USB interfaces, and HDMI display output, enabling seamless integration with a wide range of industrial peripherals, sensors, and local display devices.

Built-in ignition control allows Axiomtek's IPC980 to synchronize system power with field equipment status, while smart USB power on/off control enables precise management of connected peripherals to reduce power consumption and protect devices during startup and shutdown cycles. A dedicated front-access maintenance I/O window provides convenient ports for diagnostics and configuration, allowing technicians to perform on-site servicing efficiently without removing the system from its installation and helping minimize downtime and maintenance effort.

To meet the requirements of mission-critical deployments, Axiomtek IPC980 features onboard dTPM 2.0, providing hardware-based security for secure boots, data protection, and system integrity. Combined with comprehensive hardware monitoring capabilities, the system allows operators to track system health and operational status in real time, helping to prevent unexpected failures. Designed to withstand harsh physical conditions, the IPC980 complies with MIL-STD shock and vibration resistance, ensuring reliable performance in environments subject to constant movement, mechanical stress, or impact, such as rail monitoring systems and industrial machinery.

Axiomtek IPC980 features a motherboard-level expansion architecture with optional I/O and flexible storage configurations, enabling fast customization for diverse application needs. This scalable design simplifies system integration and shortens deployment cycles, allowing solution providers to deliver application-ready systems with minimal engineering effort.
