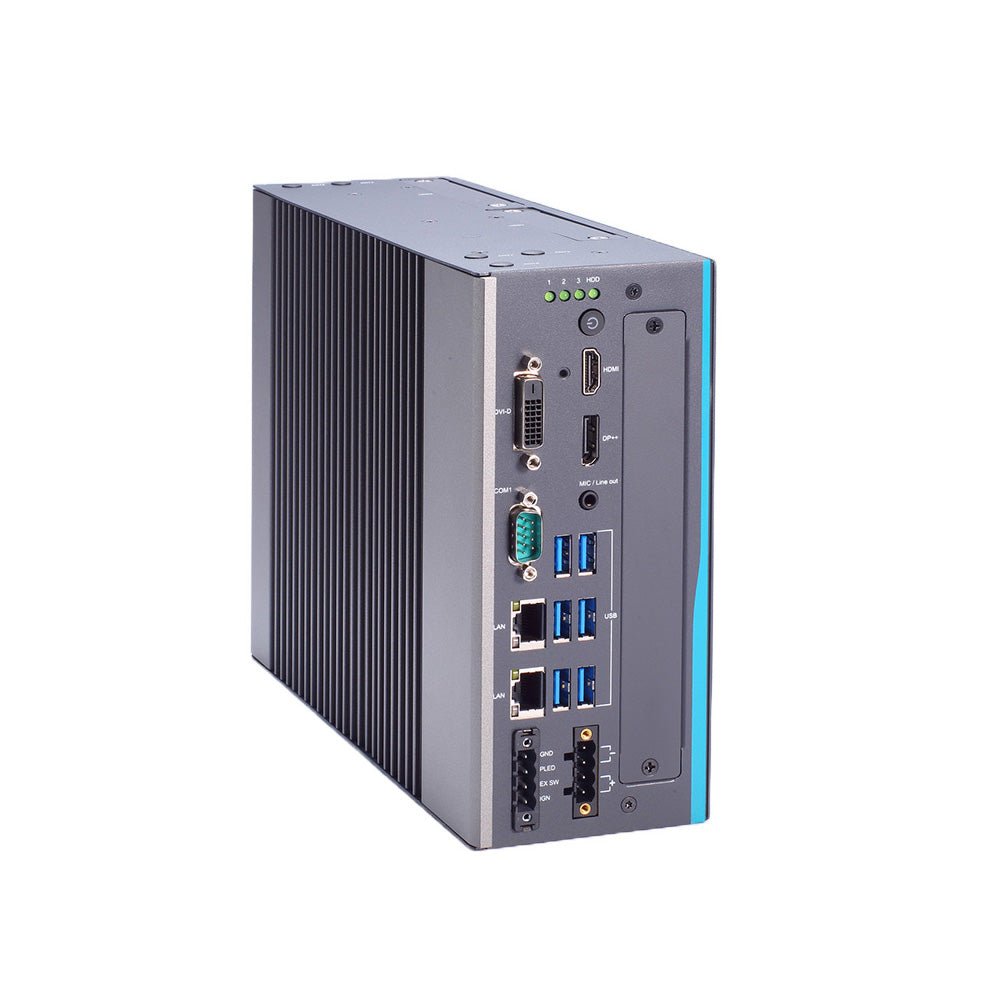

Embedded Computer IPC960A

Axiomtek IPC960A features one 4-pin terminal block for DC input and one 4-pin terminal block for ignition control, remote power, and remote LED. Axiomtek IPC960 has a rugged design for deployment in harsh environments. IPC960 has a wide operating temperature range of -20°C to +60°C and a power input of 18 to 36 VDC.  Axiomtek IPC960 Series features two hot swappable 2.5" hard-drive bays to make it easy for users to install and maintain the system. Axiomtek IPC960 series supports Windows® 11 64-bit, Windows® 10 64-bit and Ubuntu and embedded OS.

AxiomtekIPC960A offers one optional I/O expansion module slot and I/O module options include Axiomtek’s AX93511, AX93512, AX93516, AX93519, MIO160, MIO530. Through the MIO530 featuring one M.2 Key E 2230 socket and one M.2 Key B 3042/3050/3052/3060 socket with a SIM slot, Axiomtek IPC960A is available for 5G module (Intel® Q670E) while there are more and more 5G needs to reach the market,” said Ivy Lee, the product manager of AIoT Product PM Division at Axiomtek. Moreover, the industrial system has a wide operating temperature range of -20°C to +60°C and a wide range of power input from 18 to 36 VDC for operation in mission-critical environments and supports TPM 2.0 for security through major data encryption priorities.

Axiomtek intelligent edge computing system IPC960A is equipped with dual DDR5 4800/4000 SO-DIMM for up to 64GB of system memory. By supporting two 2.5" HDD/SSD and one optional M.2 Key M 2280 socket (PCIe x4 Gen4), the high-performance industrial computer delivers sufficient storage for massive data processing. It also offers one full-size PCI Express Mini Card slot with a SIM slot. It supports rich I/O options, including one 2.5GbE LAN port (Intel I226V), one GbE LAN port with Intel AMT, one RS-232/422/485, six USB 3.2 Gen2x1 (10G) ports, one internal USB 2.0 port, one DisplayPort++, one HDMI with 4096 x 2304 resolution, one DVI-D with 1920 x 1200 resolution, one 3.5mm jack for Mic-in and Line-out, one switch for power on/off with LED (default ATX), 4-pin terminal block for DC.
