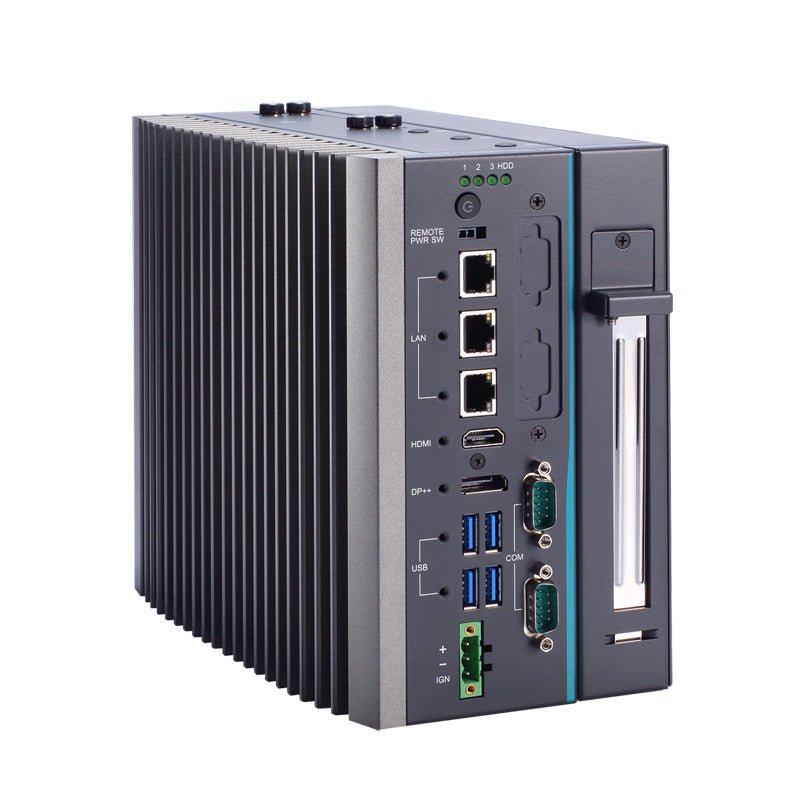

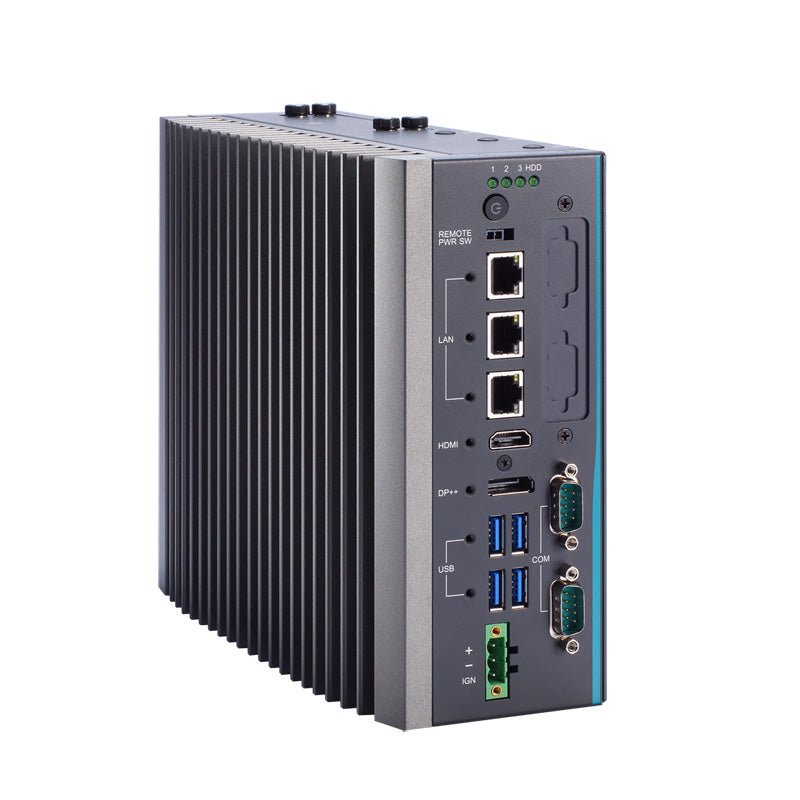

Embedded Computer IPC920

• Intelligent power management: Ignition and USB power on/off control
• Supports Intel® RAID (R680E)
• Easy expansion via flexible I/O window
• Supports connectors with pull-resistance design
• Optional DIN-rail, bookshelf, and wall mount kit
• EN 61000-6-2 certified

Axiomtek's IPC920, an EN 61000-6-2 certified industrial edge system powered by the 13th/12th gen Intel® Core™ processor with the Intel® H610E/R680E chipset. Axiomtek IPC920 features a cable lock design to boast a robust design; in addition, its wide operating temperature range of -20°C to +60°C ensures reliable performance in challenging industrial environments. This highly adaptable industrial edge computer is primed for rapid integration through a PCIe x16 slot, catering to various applications including AI, vision inspection, objective classification, and factory automation.

Axiomtek IPC920 has advanced intelligent power management function that provides ignition power on/off delay through BIOS. With USB power on/off control, users can restart USB devices through software to ensure optimal overall functionality, said Ivy Lee, the product manager of AIoT Product PM Division at Axiomtek. Moreover, Axiomtek IPC920 accelerates time to market with its streamlined design, facilitating easy and versatile expansion options through a flexible I/O window and PCIe x16 slot. It allows for swift integration of additional components or peripherals, empowering system integrators to adapt quickly to changing requirements and seize new opportunities with comprehensive configurations.

Axiomtek IPC920 features dual 262-pin DDR5 4800/4000 ECC/non-ECC SO-DIMM slots, providing up to 64GB of system memory capacity. With support for two 2.5" HDD/SSD drives compatible with RAID 0,1 (exclusive to the R680E version) and one M.2 Key M 2280 socket (PCIe x4), this high-performance industrial computer ensures ample storage for extensive data processing needs.

Additionally, it features a full-size PCI Express Mini Card slot with a SIM slot for expanded connectivity options. Axiomtek IPC920 boasts versatile I/O capabilities, including two 2.5GbE LAN ports (Intel® I226-V), one GbE LAN port (Intel® I219-LM) with Intel® AMT support in the R680E version, and two RS-232/422/485 ports. It also offers a DisplayPort++ 1.2 and a HDMI 1.4b port, both supporting resolutions up to 4096 x 2160. The H610E version includes two USB 3.2 Gen2x1 (10G) ports, two USB 3.2 Gen1x1 (5G) ports, and one USB 2.0 port, while the R680E version provides four USB 3.2 Gen2x1 (10G) ports and one USB 2.0 port for enhanced connectivity and data transfer speeds.
