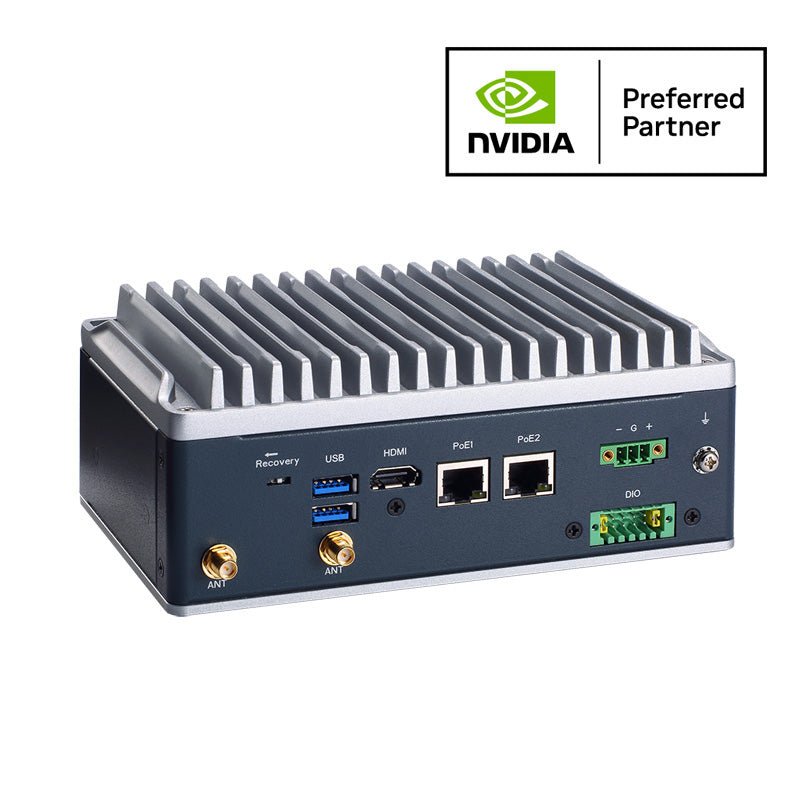

Edge AI Computer AIE510-ONX

• NVIDIA® Jetson Orin™ NX (100 TOPS)
• Seamless connectivity with 5G, Wi-Fi 6E, and 2.5 GbE combined
• Effortless management with USB and PoE device power control
• Supports dual PoE for camera and sensor connectivity
• Wide operating temperature from -25°C to +60°C
• Supports the NVIDIA Isaac™ Robot Operating System (ROS) SDK for AI-powered robot development
• Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon

Axiomtek's AIE510-ONX embarks its new E-Mark certified edge AI system powered by the NVIDIA® Jetson Orin™ NX, delivering outstanding AI performance with up to 100 TOPS. Axiomtek's AIE510-ONX seamlessly integrates 5G, Wi-Fi 6E, and 2.5 GbE to offer unparalleled connectivity, enabling rapid data transfer and real-time communication essential for mission-critical applications. With a wide voltage range operating from 9 to 36 VDC and equipped with ignition power control, Axiomtek's AIE510-ONX ensures optimal power efficiency and dependable operation for in-vehicle usage. The GMSL interfaces version AIE510-ONX also excels at transmitting high-speed data between automotive cameras and sensors. To accelerate AI-enabled robotics development and facilitate autonomous applications, the AIE510-ONX supports the NVIDIA Isaac™ Robot Operating System (ROS) SDK for AI development.

Axiomtek's AIE510-ONX stands as a ready-to-deploy edge AI solution, integrating cutting-edge technologies to ensure effortless speed, streamlined management, and robust connectivity. The function of USB and PoE device power control on Axiomtek's AIE510-ONX ensures smooth management of connected devices, enhancing operational efficiency and reducing downtime. It supports dual PoE and 4-CH GMSL to seamlessly connect LiDAR, automotive cameras, and sensors, rendering it ideal for in-vehicle applications, as well as service robots, last-mile delivery, autonomous tractors, autonomous machines, and beyond,” said Annie Fu, a Product Manager of the AIoT Team at Axiomtek. “Built to withstand the harshest environments, Axiomtek's AIE510-ONX features a wide operating temperature range from -25°C to +60°C and supports an IP67 version tailored to specific project requirements to ensure durability and reliability in demanding outdoor conditions, such as smart roadside units and intelligent traffic management.”

Axiomtek's AIE510-ONX is powered by the NVIDIA® Jetson Orin™ NX platform which features an 8-core Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3) and integrates an advanced 1024-core NVIDIA Ampere GPU with 32 Tensor Cores. It features 16GB 128-bit LPDDR5 onboard. One M.2 Key M 2280 slot with a high-speed PCIe x4 NVMe SSD interface is available for extensive storage needs. Its diverse expansion interfaces include one M.2 Key E 2230 slot for Wi-Fi 6E, one full-size PCI Express Mini Card slot (USB + PCI Express signal) for Wi-Fi/LTE, one M.2 Key B 3042/3052 slot for 5G/LTE, and one Nano SIM slot.

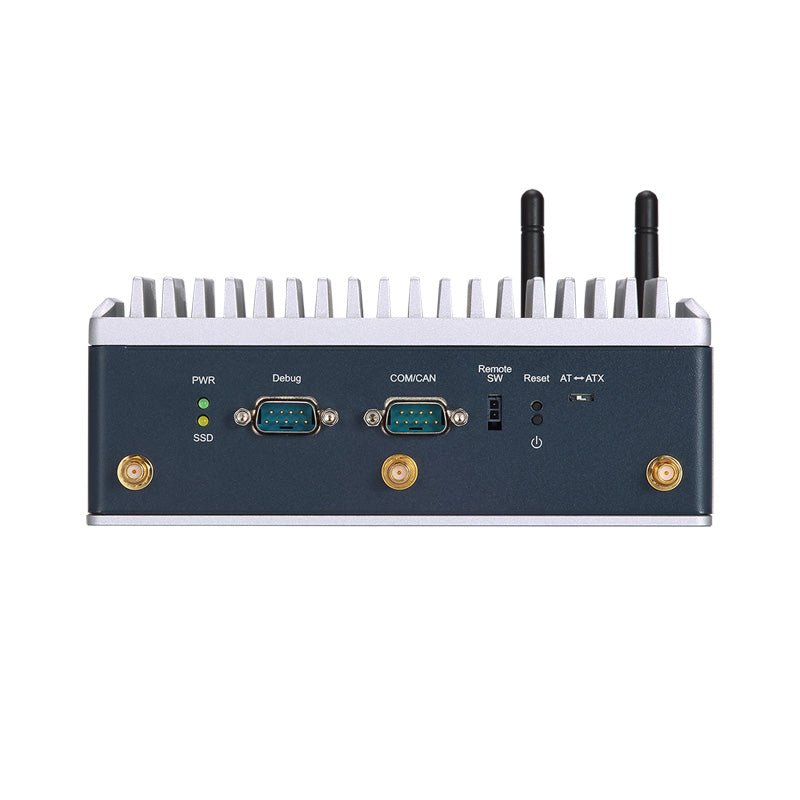

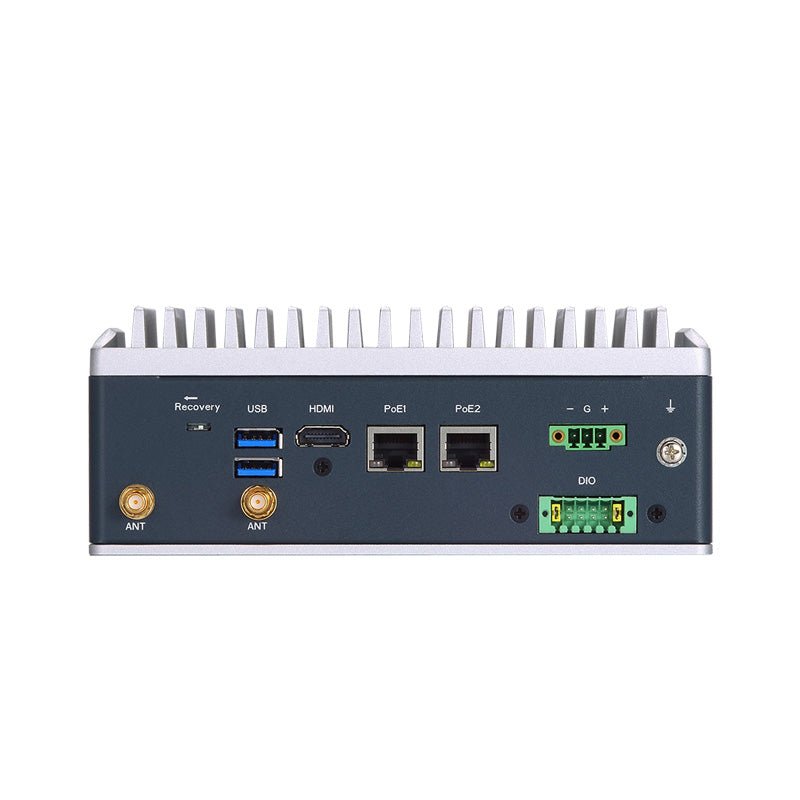

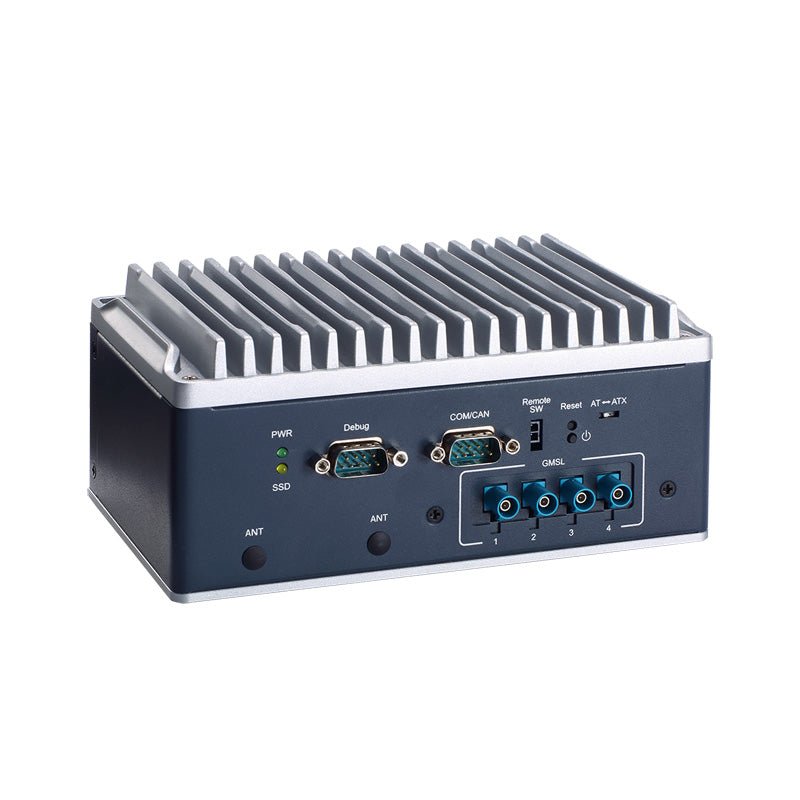

Axiomtek's AIE510-ONX offers rich I/O connectivity. It has one HDMI 2.1 with 4K2K supported, one GbE PoE (via Orin™ NX), one 2.5GbE PoE (Intel® I226-IT), two USB 3.2 Gen2 ports, four Fakra-Z connectors for GMSL1/2 automotive camera (only for AIE510-ONX-GMSL), one isolated DIO (4-in/4-out), one DB9 for debug port, one DB9 for COM & CAN, one recovery switch (for image update), one remote power switch, one AT/ATX switch, one reset button, one power button, one ignition connector, and five SMA-type antennas openings. In addition, Axiomtek's AIE510-ONX supports device monitoring and management services by Allxon, bringing comprehensive remote management onto edge AI devices.
