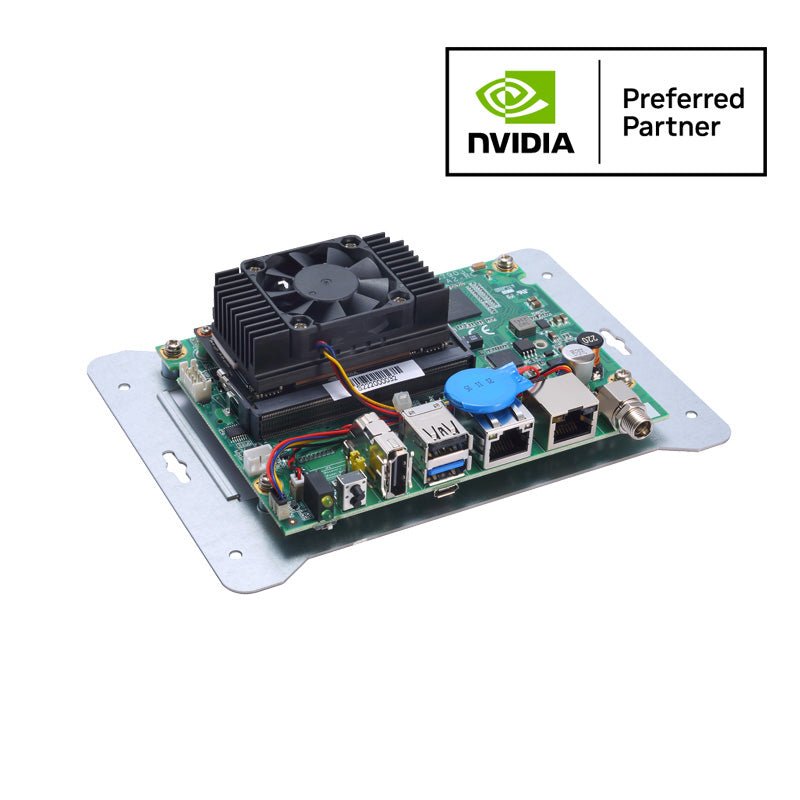

Edge AI Computer AIE110-ONX

• NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
• 1 USB 2.0, 1 USB 3.2 Gen2, and 1 GbE LAN
• Supports one 15W GbE PoE for camera
• 1 M.2 Key M NVMe SSD slot
• 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
• Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon

Axiomtek's AIE110-ONX showcases its new fanless edge AI developer kit that provides up to 100 TOPS of accelerated AI computing performance. Axiomtek AIE110-ONX is powered by the NVIDIA® Jetson Orin™ NX system-on-module which has a 6-core/8-core NVIDIA ARM® Cortex A78AE v8.2 64-bit CPU and a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores. This small yet powerful edge AI developer kit, tailored for quick development with no minimum order, is well-suited for makers, learners, and system integrators seeking to effortlessly enhance AI innovation.

The global surge in AI is accessible to everyone, ushering in a new era of widespread availability. Axiomtek's AIE110-ONX, featuring the powerful NVIDIA Jetson Orin™ NX, is designed to assist customers in accelerating the development and prototyping of domain-specific applications. With up to 5X the performance of the Jetson Xavier NX, it empowers any applications with advanced AI capabilities,” said Annie Fu, a Product Manager of the AIoT Team at Axiomtek. “In addition, this cutting-edge AI developer kit enhances operational efficiency. It facilitates 24/7 secure remote monitoring, control, and Over-The-Air (OTA) deployment, empowered by Allxon. Axiomtek AIE110-ONX has a rugged design for harsh environments, allowing it to operate under a wide temperature range from -10°C to +60°C and vibration of up to 3 Grms.

Axiomtek’s AIE110-ONX has 8GB/16GB 128-bit LPDDR5 onboard via the Jetson Orin NX module. It is also equipped with one M.2 Key M 2280 with PCIe x4 NVMe SSD slot for massive data processing. Featuring rich I/O interfaces, it has one USB 3.2 Gen2 port, one USB 2.0 port, one Micro USB port for image flash, one 8-CH DI/DO, one GbE LAN, one 15W GbE PoE, and one HDMI 2.1 with 4K2K supported. It also has one recovery switch, one reset button, one power button, one 12 VDC power input and two SMA-type antenna openings. In addition, this industry-focused edge AI developer kit has one full-size PCI Express Mini Card slot and one SIM slot for 3G/4G, GPS, Wi-Fi, and Bluetooth connections.
