Edge AI Computer AIE100-T2NX

• NVIDIA® Jetson™ TX2 NX (1.33 TFLOPS)
• Ideal for edge AI smart city applications
• Supports one 15W GbE PoE for camera
• Wide operating temperature from -30°C to +60°C
• Optional IP42 cover kit for semi-outdoor applications
• Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon

Axiomtek's AIE100-T2NX is an ultra-compact fanless edge AI system with the flexibility of PoE PSE support and HDMI input. Axiomtek AIE100-T2NX is powered by the NVIDIA® Jetson™ TX2 NX module which integrates the dual-core NVIDIA Denver 2 64-bit CPU, quad-core Arm® Cortex®-A57 MPCore processor complex, and NVIDIA Pascal architecture GPU with 256 CUDA® cores. Axiomtek AIE100-T2NX is an ideal solution for intelligent edge AI applications, such as smart manufacturing, smart agriculture, smart farming, smart city, and more.

Axiomtek AIE100-T2NX with solid fanless design operates under a wide range of temperatures from -30°C to +60°C and withstands vibration up to 3 Grms. In addition, it offers an optional waterproof IP42-rated cover kit for enhanced protection in semi-outdoor environments,” said Annie Fu, a product manager of Product PM Division at Axiomtek. "To easily deploy an IP camera, Axiomtek AIE100-T2NX has one 15W GbE PoE port for both power and video transmission. This user-friendly AI-powered system offers support for the NVIDIA JetPack software for ease of development in AI computing and deep learning applications such as access control, animal behavior analysis, quality control and traffic management. Moreover, Axiomtek AIE100-T2NX integrates Allxon Device Management Solutions (Allxon DMS) to provide a cost-effective and simplified device management solution with comprehensive remote management capabilities.

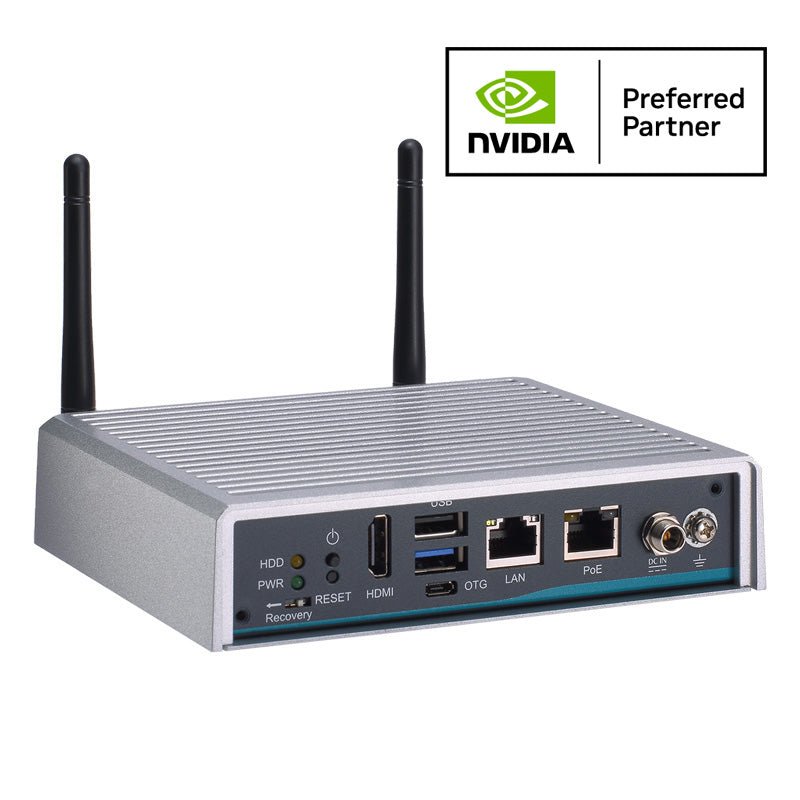

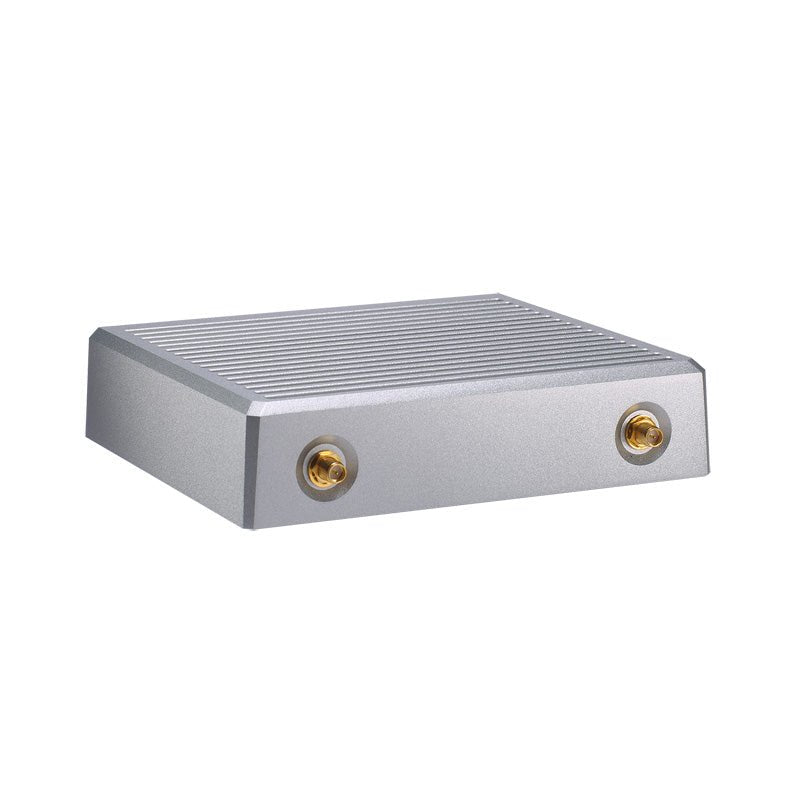

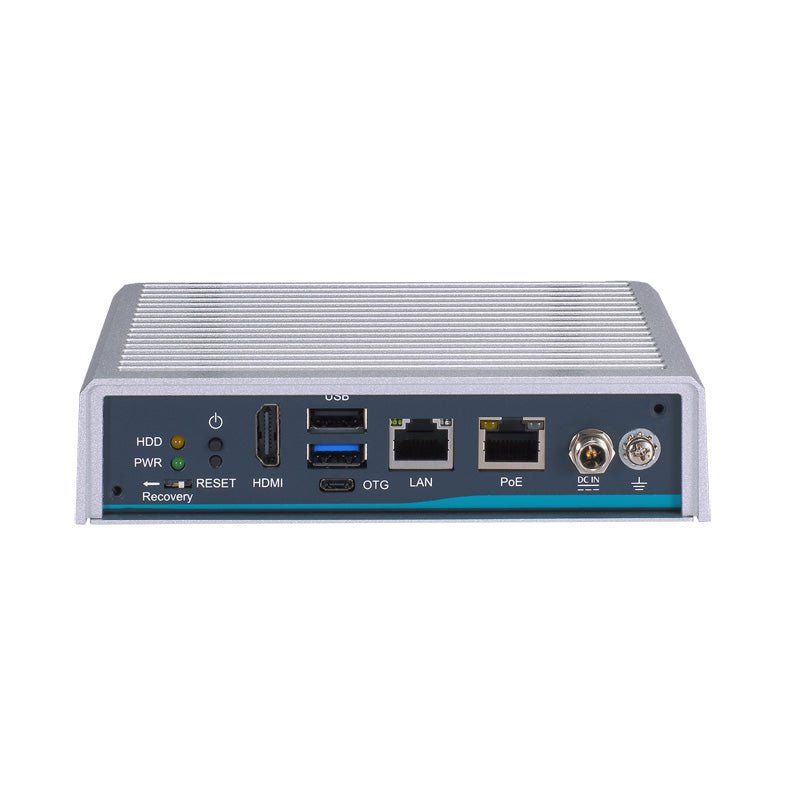

Axiomtek’s AIE100-T2NX has a 16GB eMMC onboard via the Jetson TX2 NX module. It is also equipped with one M.2 Key M 2280 with PCIe x4 NVMe SSD slot and one Micro SD slot for massive data processing. Featuring rich I/O interfaces, it has one USB 3.1 Gen1 port, one USB 2.0 port, one Micro USB port, one GbE LAN, one GbE PoE and one HDMI 2.0 with 4K2K supported. It also has one recovery switch, one reset button, one power button, one 12 VDC power input and two SMA-type antenna openings. In addition, this reliable embedded system has one full-size PCI Express Mini Card slot and one SIM slot for 3G/4G, GPS, Wi-Fi, and Bluetooth connections.
