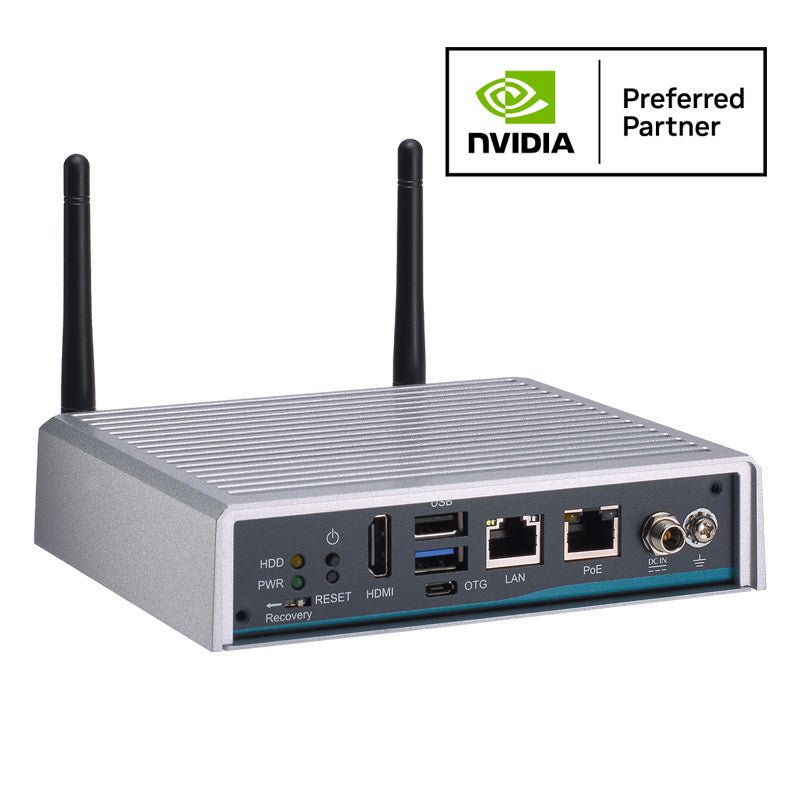

Edge AI Computer AIE100-ONX

• NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
• Ideal for edge AI smart city applications
• Supports one 15W GbE PoE for camera
• Wide operating temperature from -25°C to +60°C
• Optional IP42 cover kit for semi-outdoor applications
• Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon

Axiomtek's AIE100-ONX new fanless edge AI system powered by the NVIDIA® Jetson Orin™ NX platform which features the 6-core/8-core NVIDIA ARM® ® Cortex A78AE v8.2 64-bit CPU delivering up to 100 TOPS of accelerated AI computing performance and integrates an advanced 1024-core NVIDIA Ampere GPU with 32 Tensor Cores. To help customers to simplify the integration with the camera and sensor, Axiomtek AIE100-ONX offers one 15W GbE PoE port for robotics and intelligent video analytics deployment. The edge AI system also comes with a rugged design for harsh environments, allowing it to operate under a wide temperature range from -25°C to +50°C and withstand vibration up to 3 Grms. Axiomtek's AIE100-ONX is ready for autonomous machines, intelligent manufacturing, smart city, and smart retail.

Accelerating progress in AI and automation is creating opportunities for all walks of life. Axiomtek AIE100-ONX is powered by the NVIDIA Jetson Orin™ NX which delivers up to 5X the performance of the Jetson Xavier NX, bringing advanced AI capabilities to your applications. In addition to fanless operation, it offers an optional waterproof IP42-rated cover kit for enhanced protection in semi-outdoor environments,” said Annie Fu, a Product Manager of the AIoT Team at Axiomtek. “In addition, the powerful edge AI system AIE100-ONX can be quickly transited to the new generation platform NVIDIA® Jetson Orin™ Nano for next-level applications.

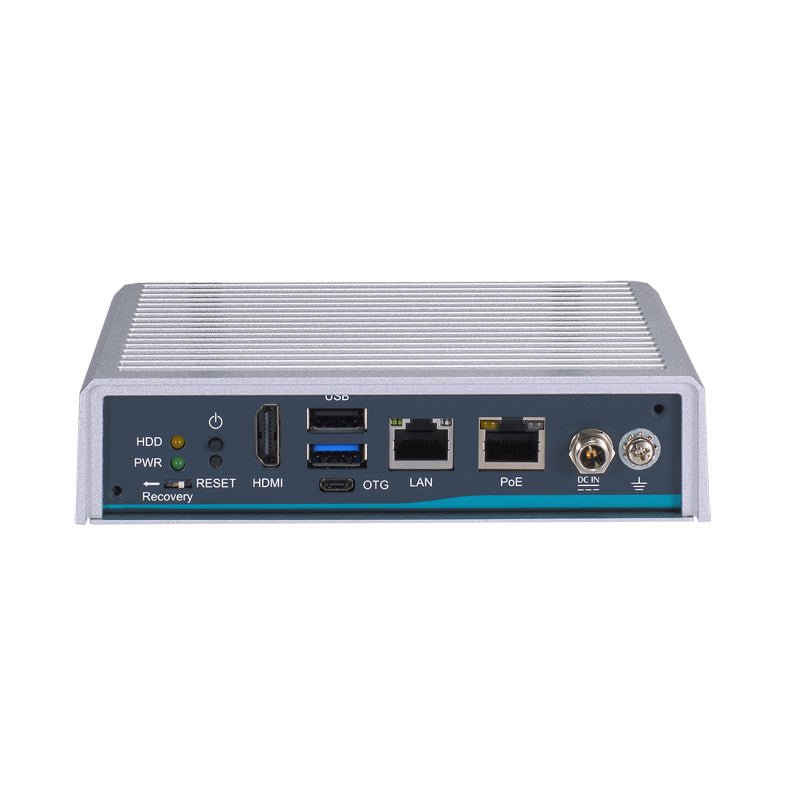

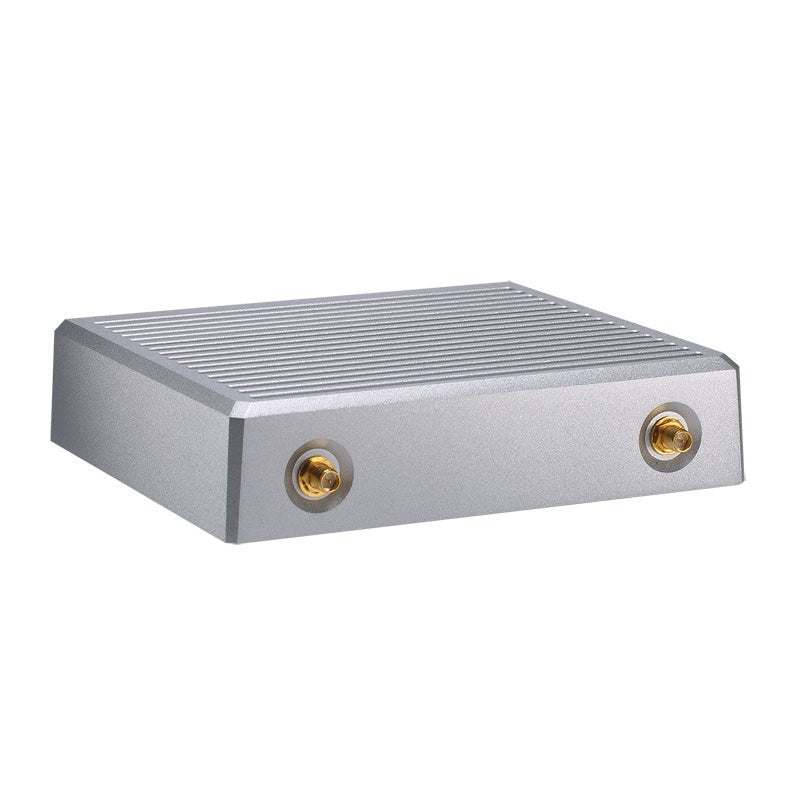

Axiomtek’s AIE100-ONX has 8GB/16GB 128-bit LPDDR5 onboard via the Jetson Orin NX module. It is also equipped with one M.2 Key M 2280 with PCIe x4 NVMe SSD slot for massive data processing. Featuring rich I/O interfaces, it has one USB 3.2 Gen2 port, one USB 2.0 port, one Micro USB port for image flash, one GbE LAN, one 15W GbE PoE and one HDMI 2.1 with 4K2K supported. It also has one recovery switch, one reset button, one power button, one 12 VDC power input and two SMA-type antenna openings. In addition, this reliable embedded system has one full-size PCI Express Mini Card slot and one SIM slot for 3G/4G, GPS, Wi-Fi, and Bluetooth connections.
