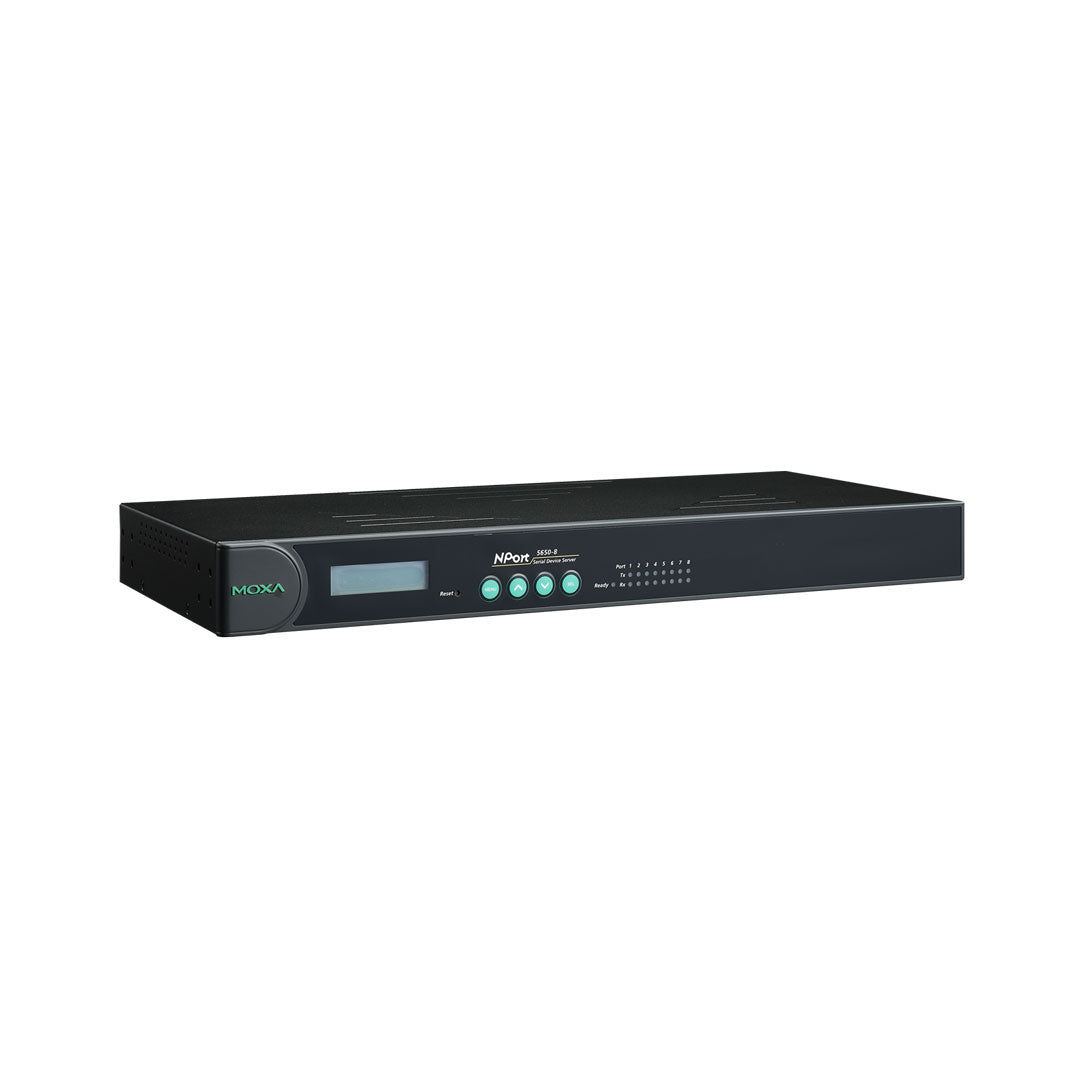

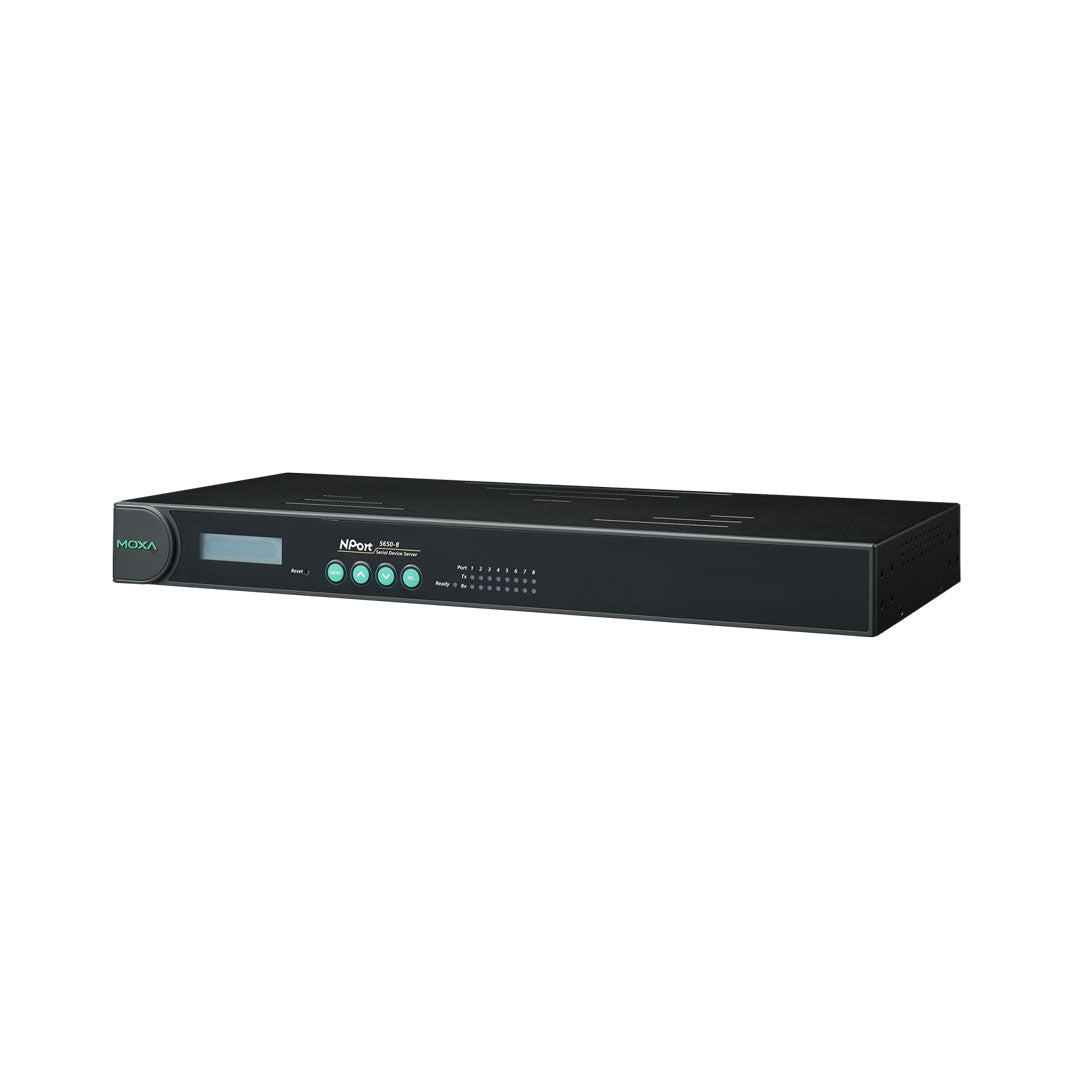

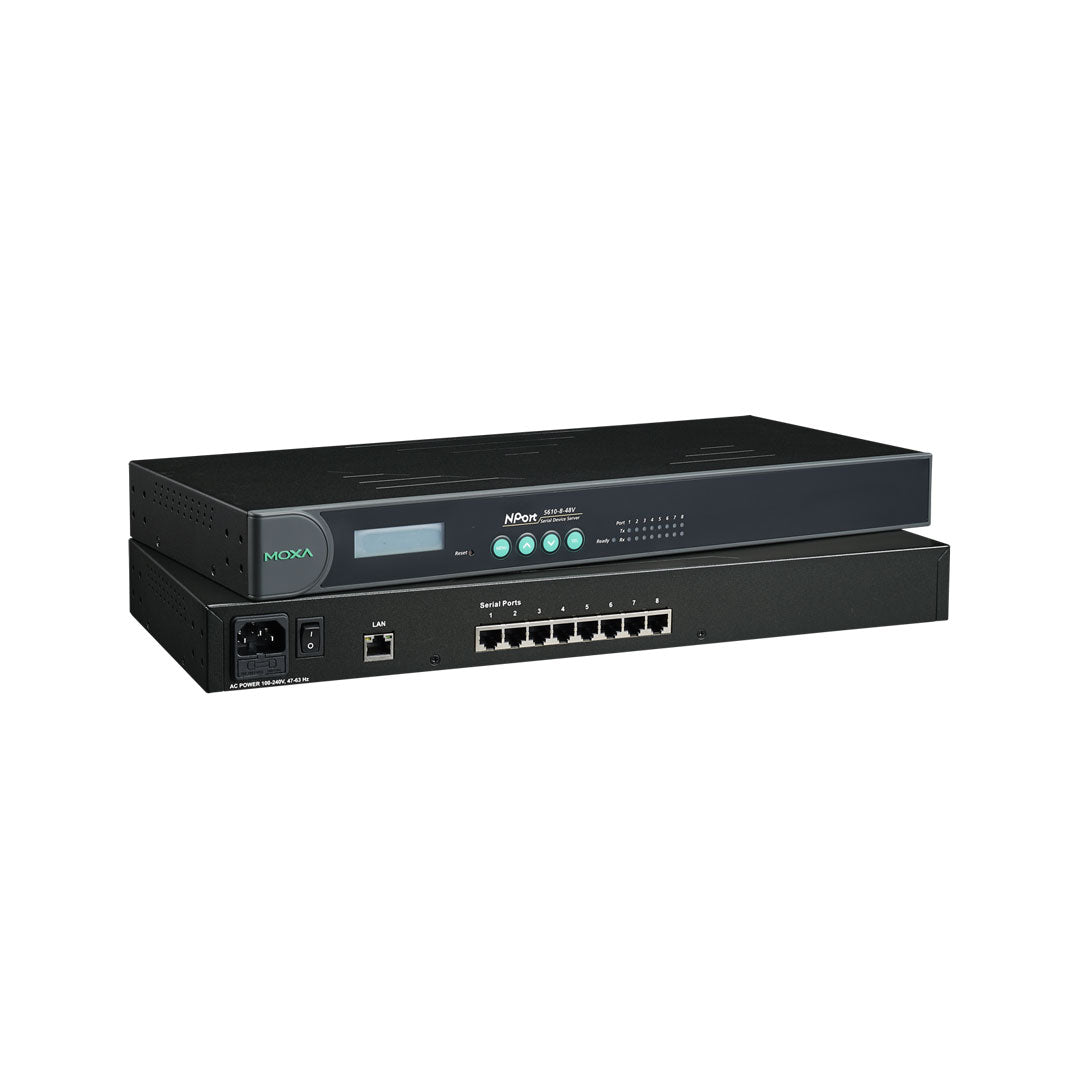

Device Server NPort 5650-8

8 port RS232/422/485 Rackmount Serial to Ethernet Converter (serial cables sold separately)

$0.00
9% Tax included Shipping calculated at checkout.

- 8 serial ports supporting RS232/RS422/RS485
- Standard 19-inch rackmount size
- 10/100M auto-sensing Ethernet
- Built-in 15 KV ESD protection for all serial signals
- Easy IP address configuration with LCD panel
- Choice of configuration methods: Web console, Telnet console and Windows utility
- Versatile socket operation modes, including TCP Server, TCP Client, UDP and Real COM
- SNMP MIB-II for network management



Real COM/TTY Ports
Real COM/TTY drivers are provided to make serial ports on Moxa NPort® 5610-16 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, NPort drivers also support RTS, CTS, DTR, DSR, and DCD control signals.



LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.



Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort 5650-8 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
