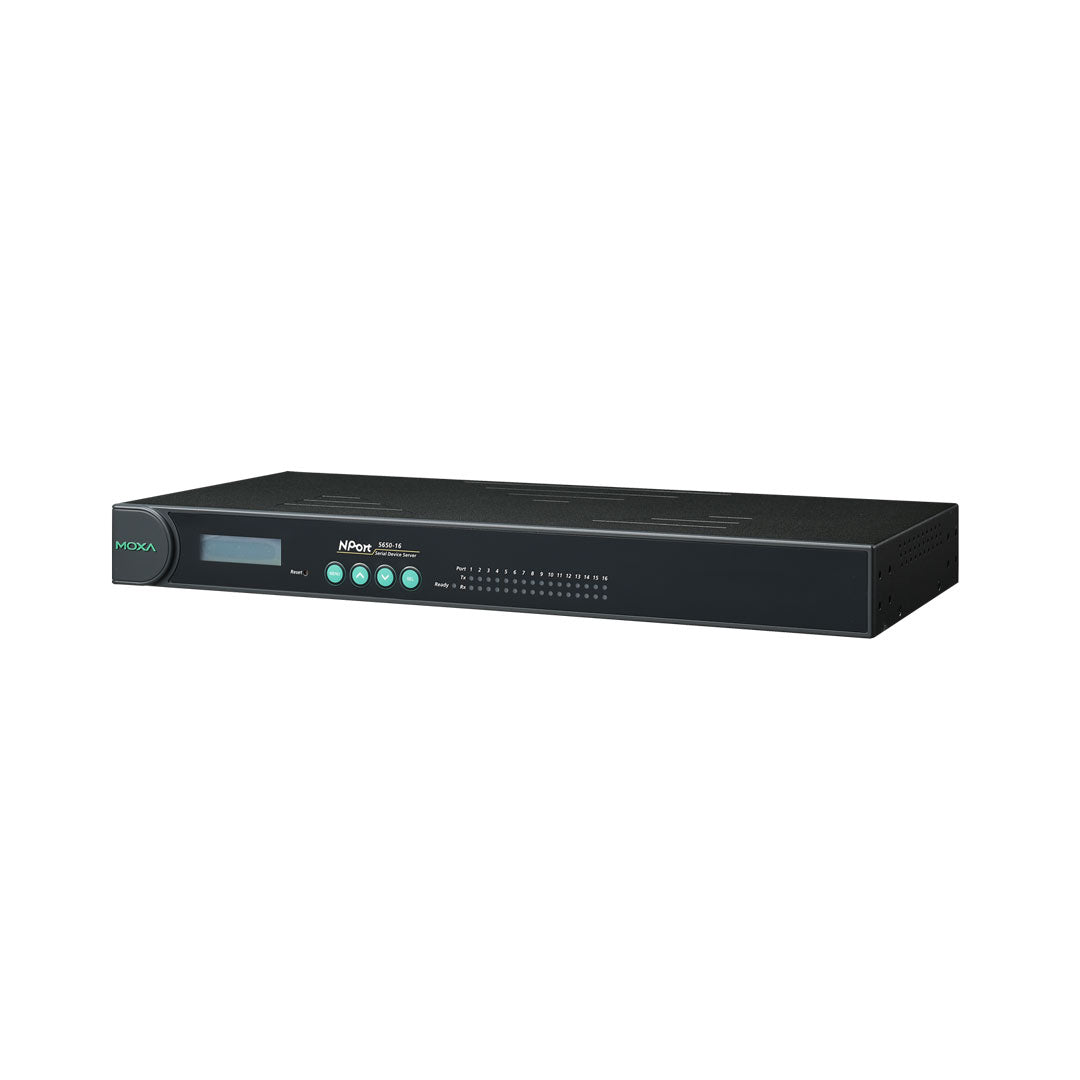

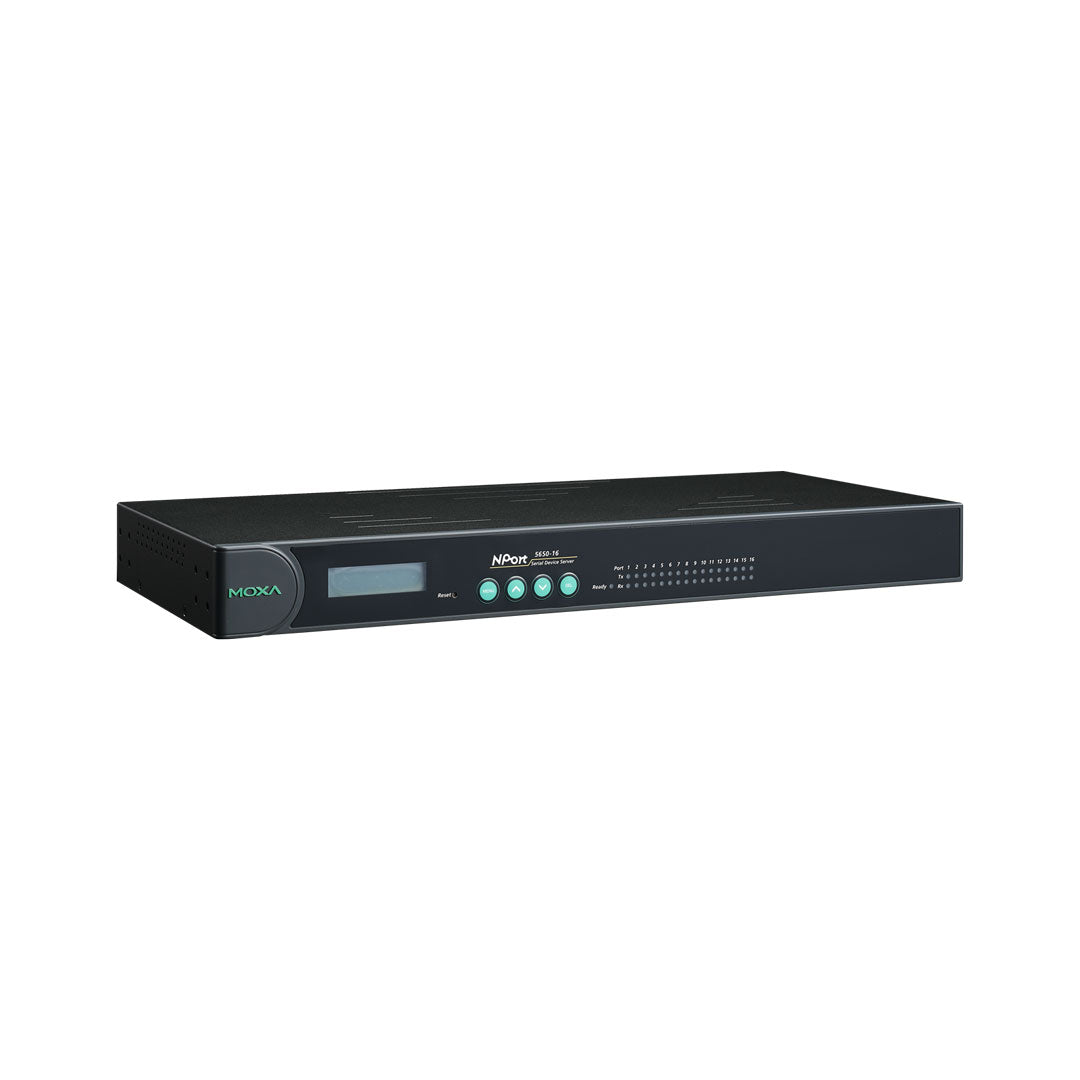

Device Server NPort 5650-16

- 16 serial ports supporting RS232/RS422/RS485
- Standard 19-inch rackmount size
- 10/100M auto-sensing Ethernet
- Built-in 15 KV ESD protection for all serial signals
- Easy IP address configuration with LCD panel
- Choice of configuration methods: Web console, Telnet console and Windows utility
- Versatile socket operation modes, including TCP Server, TCP Client, UDP and Real COM
- SNMP MIB-II for network management

Moxa NPort 5650-16 rackmount device server conveniently and transparently connect up to 16 serial RS232/422/485 devices to an Ethernet. Allowing you to network existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bi-directional. By using NPort device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices, and distribute management hosts over the network.

Network Readiness for up to 16 Serial Devices
Only basic configuration is needed with the NPort 5650 to connect up to 16 serial devices to an Ethernet network.

19-Inch Rackmount Device Server

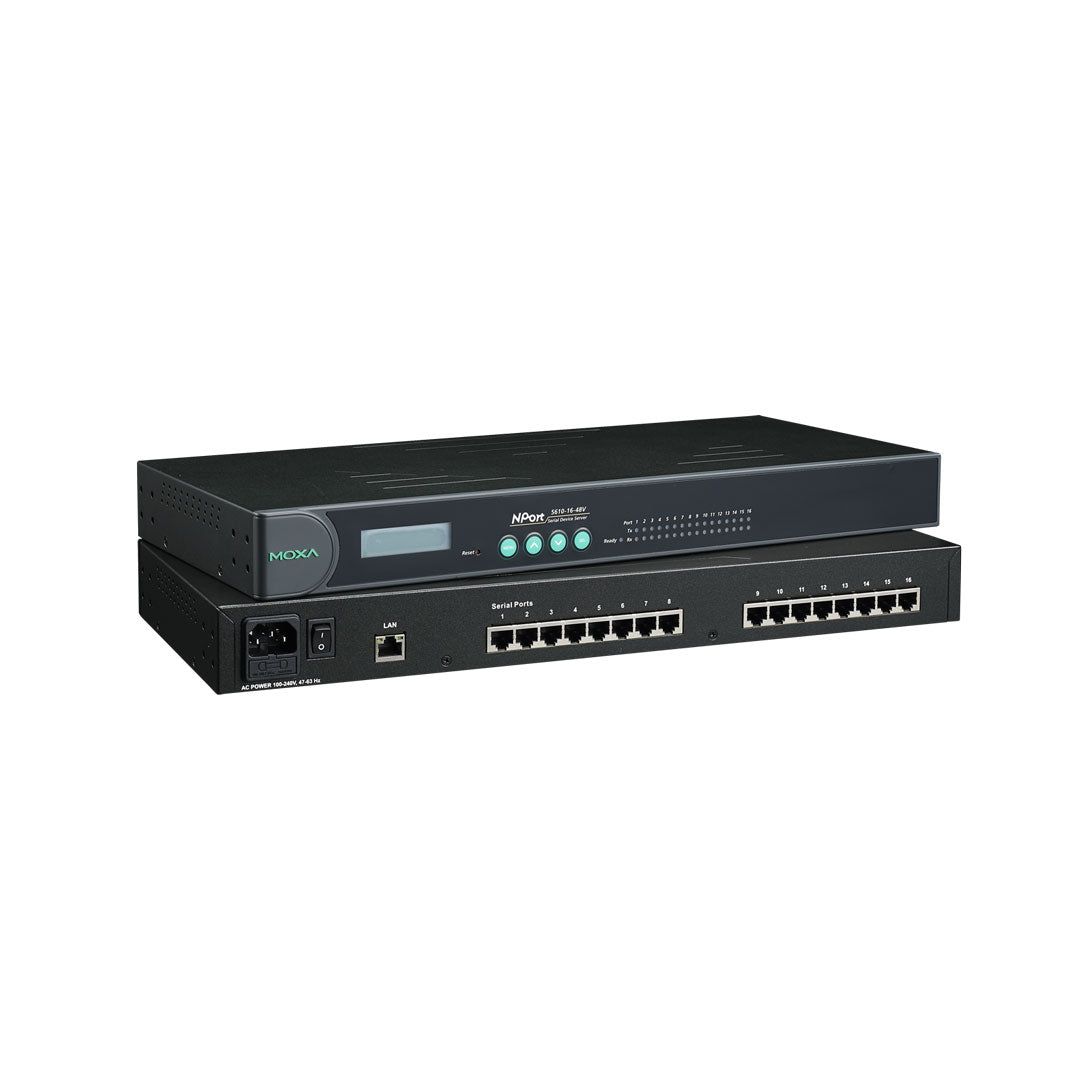

NPort 5650-16 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 16 RJ45 serial port connectors on the rear panel. This makes the NPort 5650 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.

Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports on the NPort 5650 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.

LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.

Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, Moxa NPort 5650-16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
