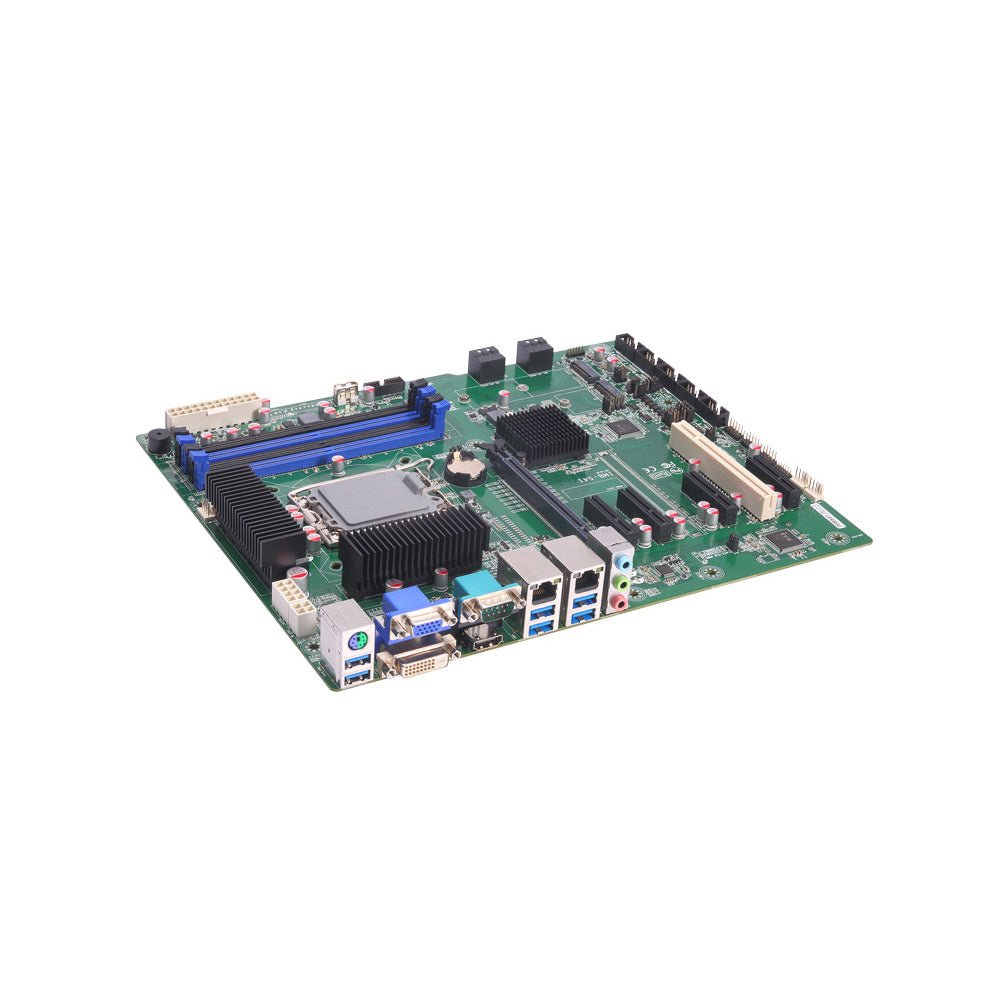

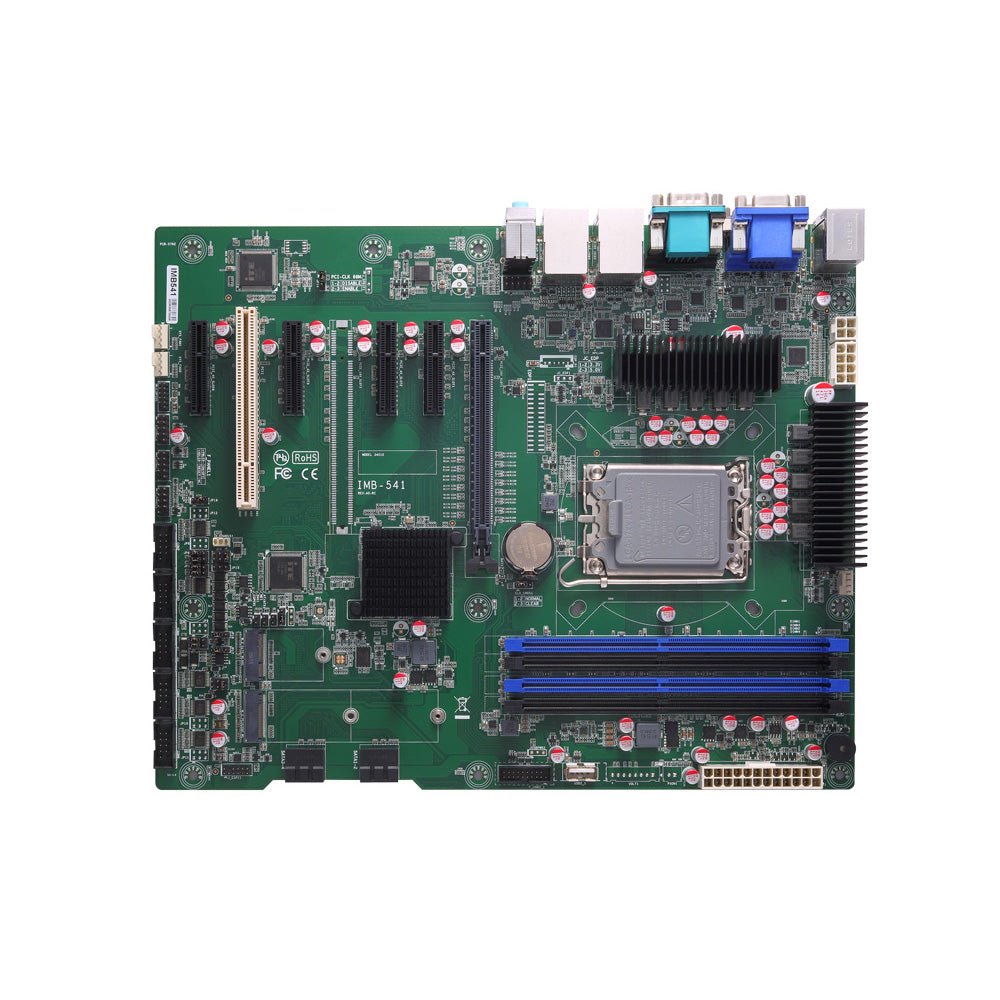

ATX Motherboard IMB541

• LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
• Four 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
• Supports triple-view with VGA, DVI-D, and HDMI interfaces
• Supports M.2 Key M 2280 and Key E 2230
• 6 USB 3.2 Gen1x1 and 2 USB 3.2 Gen1x1 (internal)
• TPM 2.0 supported (optional)

Axiomtek's IMB541 is an industrial ATX motherboard with Intel® Q670E chipset featuring the LGA1700 socket for the 12th Gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® or Intel® Celeron® processor (code name: Alder Lake-S). Designed to be future-proof, Axiomtek's IMB541 will soon support the latest 13th and 14th Gen Intel® Core™ processors as well. The ATX motherboard has a PCIe Gen4 x16 slot, ensuring heightened bandwidth and graphics performance for fast data transfer, impeccable frame rates, and minimal latency. Tailored for high-performance industrial edge applications, Axiomtek's IMB541 is a cost-effective choice with an impressive cost reduction compared to mainstream alternatives.

Axiomtek's IMB541 ATX motherboard seamlessly integrates into your 1U, 2U, 4U, or tower chassis configurations. It is equipped with six PCIe slots, including one PCIe 4.0 x16 slot, four PCIe 3.0 x4 slots, and one PCIe slot, catering to GPU, AI acceleration, frame grabber, and motion control card configuration. In addition, it supports M.2 Key M 2280 for storage and M.2 Key B 2230 for PCIe x1 and USB expansion, said Kasper Tsai, the product manager of AIoT Team at Axiomtek.

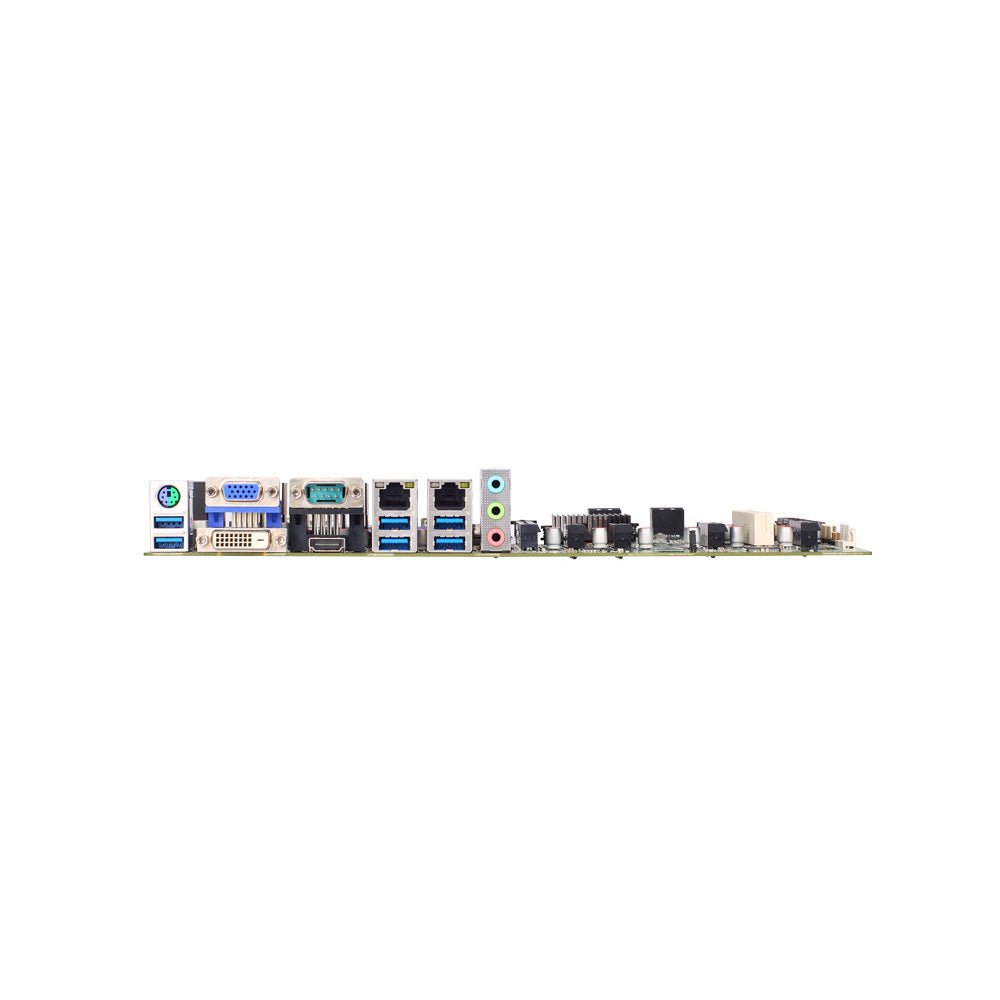

Axiomtek’s IMB541 features a robust memory configuration of four 288-pin DDR4-3200 non-ECC Long-DIMM slots with a collective capacity of 128GB. Featuring a wide array of I/O interfaces, the IMB541 supports six USB 3.2 Gen1x1, two USB 3.2 Gen1x1 (internal), five USB 2.0, four RS-232, one RS-232/485, one RS-232/422/485, one 2.5GbE LAN port, one GbE LAN port, 8-channel programmable digital I/O, and one PS/2 keyboard. Axiomtek's IMB541 facilitates versatile display options with VGA, HDMI, and DVI-D ports, supporting triple-view display. It incorporates four SATA-600 ports with RAID 0/1/5/10 functionality for enhanced storage capabilities. Trusted Platform Module 2.0 (TPM 2.0) is available to ensure critical information security. More functions include hardware monitoring for CPU/system temperature, voltage detection, and smart fan control.
