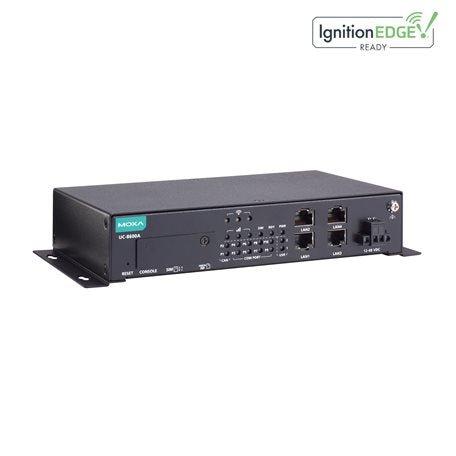

ARM-based Linux IIoT Gateway UC-8600A Series

•  Arm Cortex-A72 dual-core 1.5 GHz processor
•  4 auto-sensing 10/100/1000 Mbps Ethernet ports
•  8 RS-232/422/485 serial ports
•  2 CAN ports (CAN 2.0A/CAN 2.0B) with 3 kV isolation protection
•  M.2 M key SSD slot and Micro SD socket for storage expansion

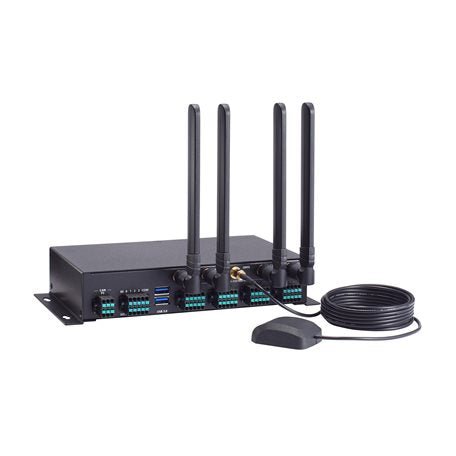

•  Supports cellular and Wi-Fi 6E via an expansion slot
•  Moxa Industrial Linux with 10-year superior long-term support
•  EN 18031-1 compliant wireless cybersecurity
•  Compliance with IEC 62443-4-2 Security Level 2 requirements
•  -40 to 75°C operating temperature range (-40 to 70°C with cellular module enabled)

Moxa's UC-8600A Series Arm-based box-type computing platform is designed for embedded data-acquisition and edge-computing applications.

Moxa's UC-8600A comes with four 10/100/1000 Ethernet ports, eight RS-232/422/485 serial ports, four DI/DO channels, two CAN ports, enabling robust connectivity for a wide variety of field devices. Moxa's UC-8600A also supports storage expansion via an M.2 M key slot for SSD and a Micro SD card slot. In addition, a wireless expansion slot that supports Wi-Fi 6E and cellular modules enables reliable wireless communication for remote applications. The versatile communication and expansion capabilities of the UC-8600A Series facilitates efficient deployment in diverse industrial environments.
