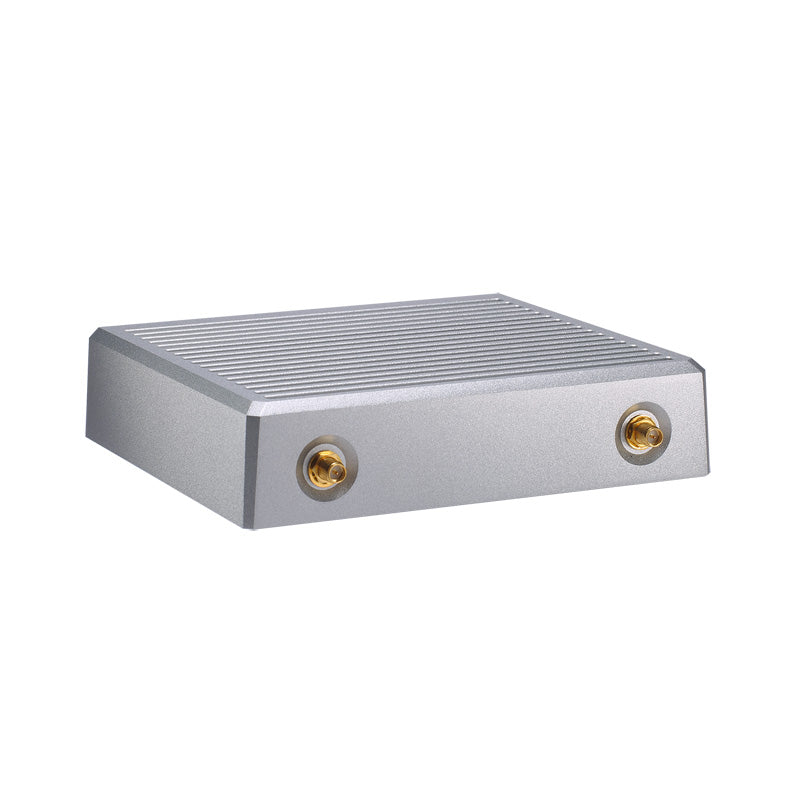

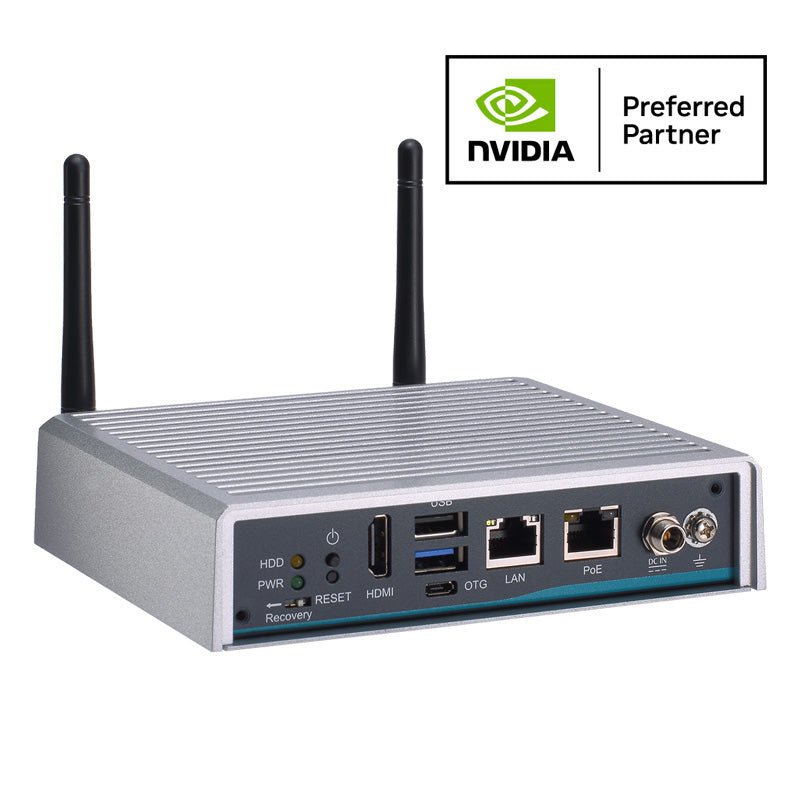

Edge AI Computer AIE100-903-FL-NX

• NVIDIA® Jetson Xavier™ NX (21 TOPS)
• Ideal for edge AI smart city applications
• Supports one 15W GbE PoE for camera
• Wide operating temperature from -30°C to +50°C
• Optional IP42 cover kit for semi-outdoor applications
• Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon

Axiomtek's AIE100-903-FL-NX showcases its ultra-compact and state-of-the-art edge AI system. The high-performance AIE100-903-FL-NX is powered by the NVIDIA® Jetson Xavier™ NX module which has a powerful 6-core NVIDIA® Carmel ARM® v8.2 64-bit processor and 384-core NVIDIA® Volta™ GPU architecture with 48 Tensor cores; in addition, it integrates Allxon Device Management Solutions (Allxon DMS) to provide a cost-effective and simplified device management solution with comprehensive remote management capabilities. The AIE100-903-FL-NX is ideal for smart city, smart manufacturing, smart retail, and other intelligent edge AI applications.

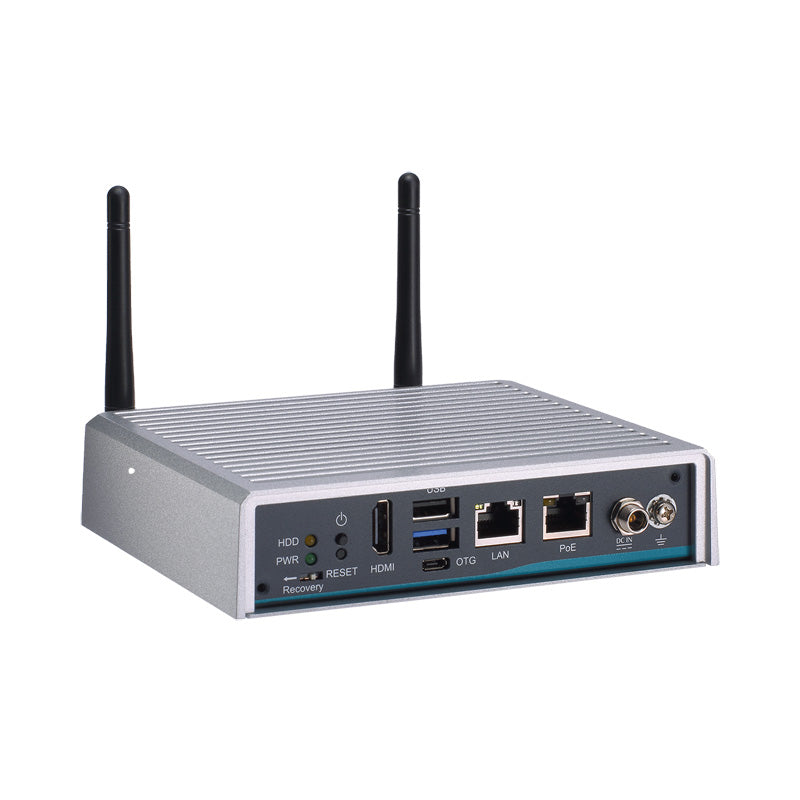

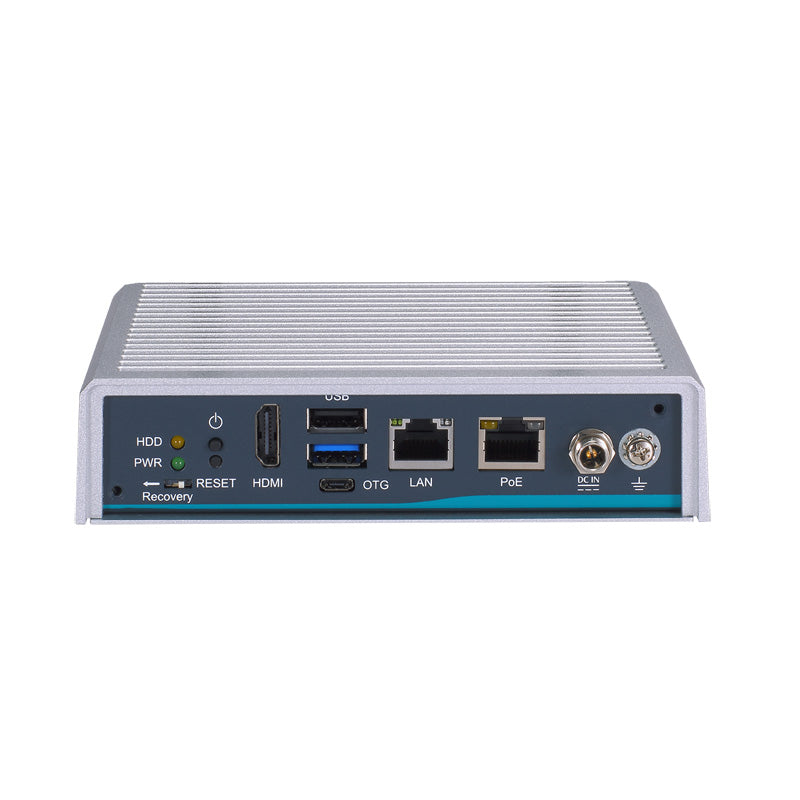

Axiomtek AIE100-903-FL-NX offers support for NVIDIA® JetPack 4.4 for ease of development in AI computing and deep learning applications. It has abundant I/O connectivity, including one USB 3.1 Gen2 port, one USB 2.0 port, one Micro USB port, one GbE LAN port, one GbE PoE port and one HDMI 2.0 port supporting 4K2K. It also has one recovery switch, one reset button, one power button, one 12V DC power input and two SMA-type antenna openings. Users can use the recovery switch and Micro USB to easily flash the image without opening the chassis. Axiomtek AIE100-903-FL-NX has a 16GB eMMC onboard and is equipped with one M.2 Key M 2280 SSD slot with PCIe x4 NVMe and one Micro SD slot for real-time massive workload processing at the edge. Furthermore, the AIE100-903-FL-NX has one full-size PCIe Mini Card slot supporting USB and PCIe signal and one SIM slot for 3G/4G, GPS, Wi-Fi and Bluetooth connections.
