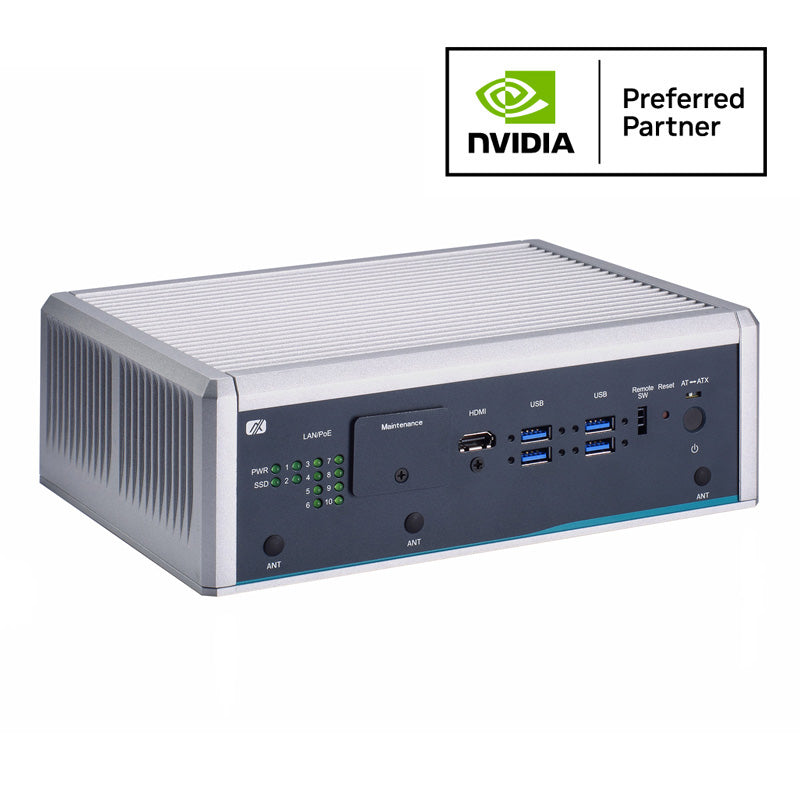

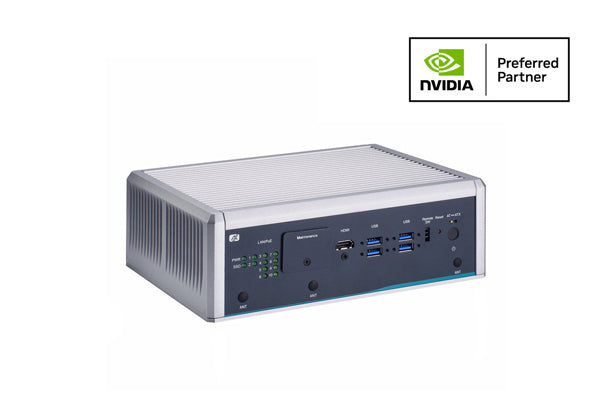

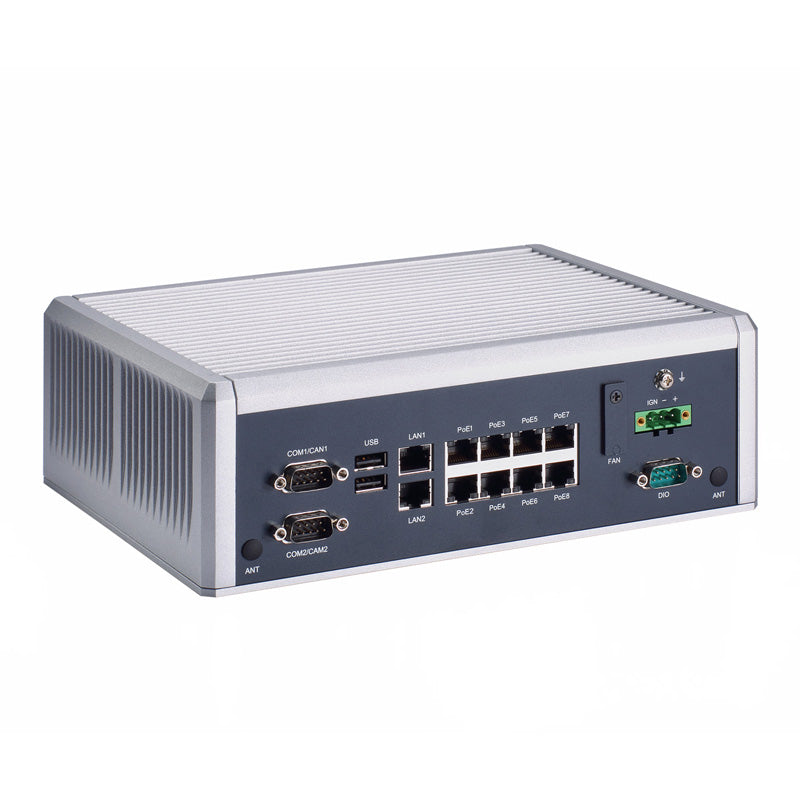

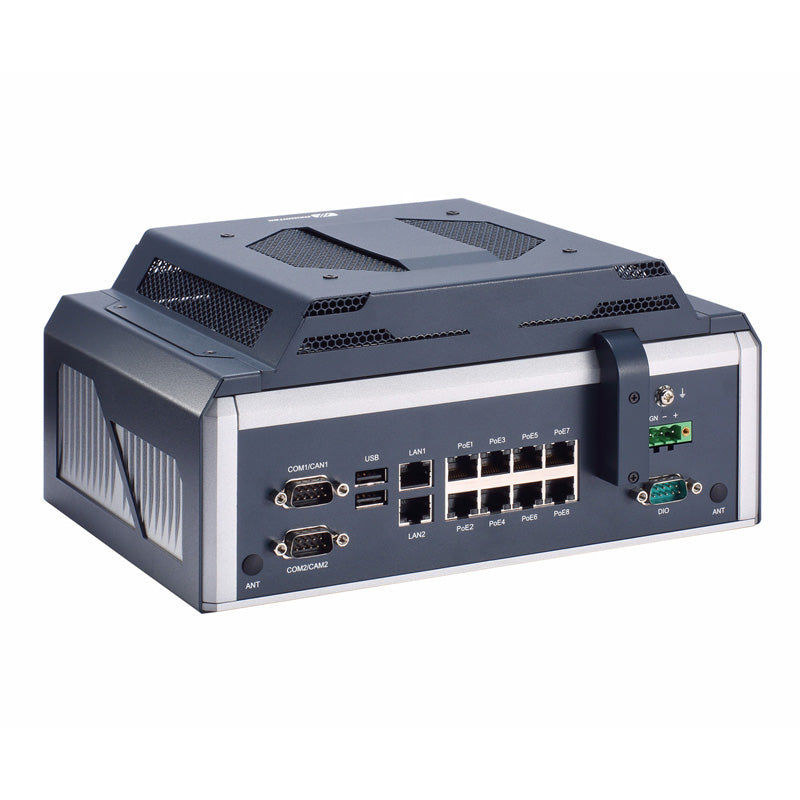

Edge AI Computer AIE900A-AO Series

• NVIDIA® Jetson AGX Orin™ (up to 275 TOPS)
• Seamless connectivity with 5G, Wi-Fi 6E, and 2.5 GbE combined
• 9 to 36VDC with Ignition (E-Mark compliance)
• Supports 8 PoE and GMSL for camera and LiDAR connectivity
• -25°C to +60°C operating temperature range
• Supports device management and optional OTA deployment, powered by Allxon

Axiomtek's AIE900A-AO showcases a new edge AI computing system powered by the NVIDIA® Jetson AGX Orin™ platform which features an Arm® Cortex®-A78AE v8.2 64-bit CPU delivering up to 200 TOPS of AI performance and integrates an advanced 1792-core NVIDIA Ampere™ GPU with 56 Tensor Cores. The next-level AI system comes with eight PoE ports (60 W) and two 2.5 GbE LAN ports for 3D LiDAR, IP cameras, and more vision navigation sensors. It comes with E-mark compliance and supports 24VDC with ignition power control plus 5G and Wi-Fi 6E connectivity with M.2 slots, which is also a great stride for higher efficiency of next-gen robotics. Axiomtek's AIE900A-AO is a perfect platform for deploying AI-powered robots, drones, AMRs, and other autonomous machines.

Axiomtek's AIE900A-AO has a rugged design for harsh environments, allowing it to operate over a wide temperature range from -25°C to +50°C and at vibrations up to 3 Grms. Axiomtek's AIE900A-AO has 32GB of LPDDR5 memory and 64GB eMMC onboard. One M.2 Key M 2280 SSD socket with a high-speed PCIe x4 NVMe interface and one Micro SD slot are available for extensive storage needs. For the benefit of low-latency data transmission, Axiomtek's AIE900A-AO supports two 2.5GbE LAN ports for high-speed wired connectivity, an M.2 Key E 2230 slot for Wi-Fi 6E, and an M.2 Key B 3052/3042 slot for 5G/LTE, as well as one Nano SIM slot. Axiomtek's AIE900A-AO also comes with 24 VDC with ignition power control. More I/O options include one lockable HDMI 2.1 with 4K2K supported, six USB ports, one GbE LAN, two DB9 for RS-232/422/485/CAN (selected by command line), 8-CH DI/DO, and five SMA-type antenna openings. Axiomtek's AIE900A-AO bundles with the Linux Ubuntu 20.04 OS environment and supports the NVIDIA JetPack 5.1.1 software development kit to foster the development of cross-industry AI-assisted operations. In addition, Axiomtek's AIE900A-AO has reserved the MIPI CSI-2 interface, offering compatibility with GMSL, FPD-LINK, and V-by-One cameras to enhance its capabilities for autonomous machine applications.
