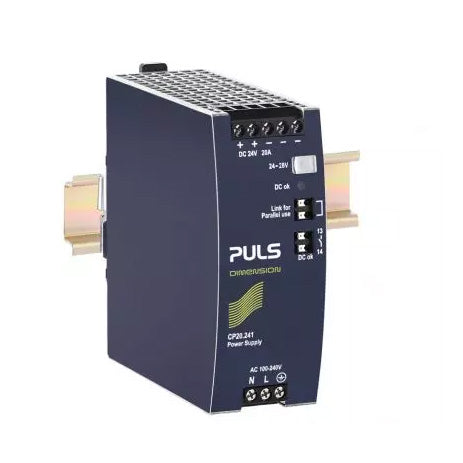

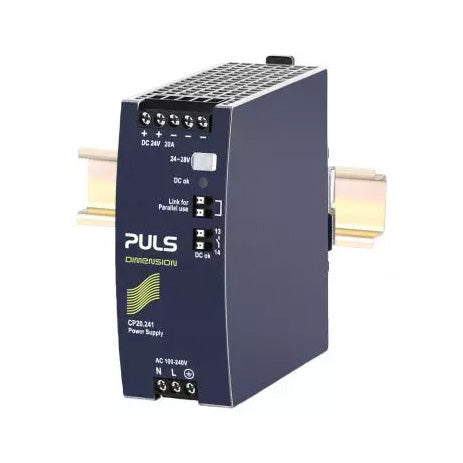

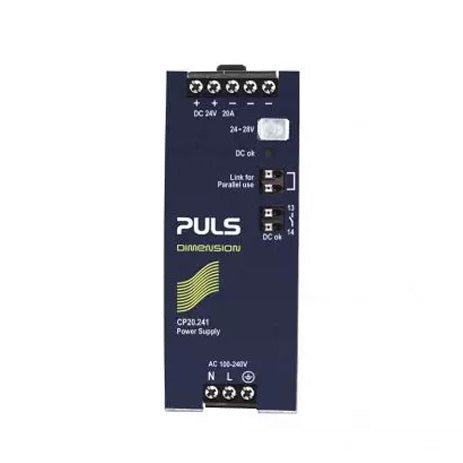

480W Din-Rail Power Supply CP20.241

- AC 100-240V Wide-range input
- Compact design, width measuring 48mm
- Efficiency up to 95.6%
- Excellent partial load efficiency
- 20% Output power reserves
- Easy fuse breaking - 3 times nominal current for 12ms
- Safe HiccupPLUS overload mode
- Active power factor correction (PFC)
- Minimal inrush current surge
- Full power between -25°C and +60°C
- DC-OK relay contact
- Current sharing feature for parallel use

PULS Dimension CP20-Series industrial power supply offers high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range in a compact din-rail form factor. PULS CP20-Series have a power reserve of 20%, which may be used continuously up to +45°C. There is high immunity to transients and power surges as well as low electromagnetic emission. It features a DC-OK relay contact. Certified by numerous international approval bodies, PULS CP20-Series safety features range from output over-voltage protection, input transient protection, isolation resistance safety feature and more. Supplementary redundancy modules can be added for redundant system design.

PULS CP20-Series can be operated in several modes*

(a) Parallel use to increase output power
(b) Parallel use for redundancy
(c) Series operation
(d) Charging of VRLA/SLA batteries
(e) Two phase operation

*Please refer to datasheet on full details
