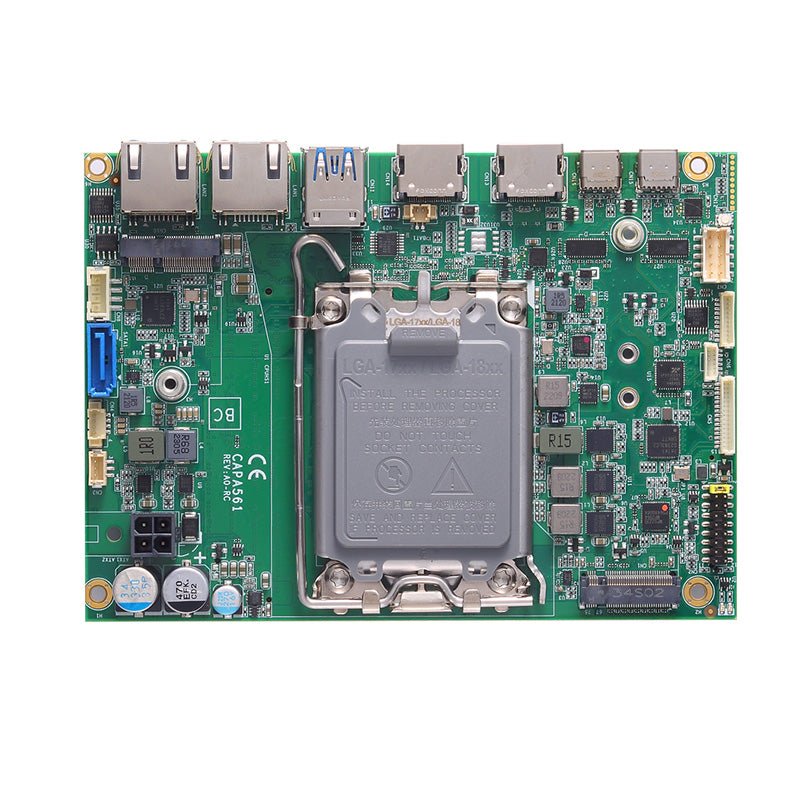

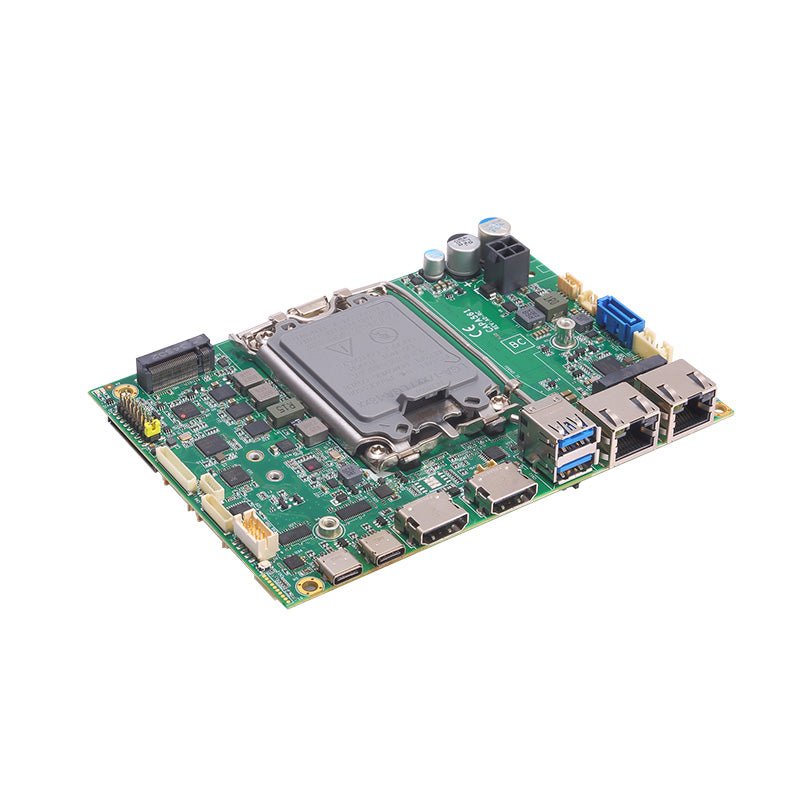

3.5-inch CAPA561

• LGA1700 socket
• 2 DDR5 SO-DIMM for up to 64GB of memory
• GbE LAN and 2.5GbE LAN ports
• 3 M.2 expansion slots

Axiomtek's CAPA561 is a powerful 3.5-inch embedded single board computer designed to drive next-generation edge AI, industrial automation, and smart retail applications. Combining high-performance computing, flexible expansion, and advanced multi-display capabilities, Axiomtek's CAPA561 delivers strong, reliable performance within a compact form factor.

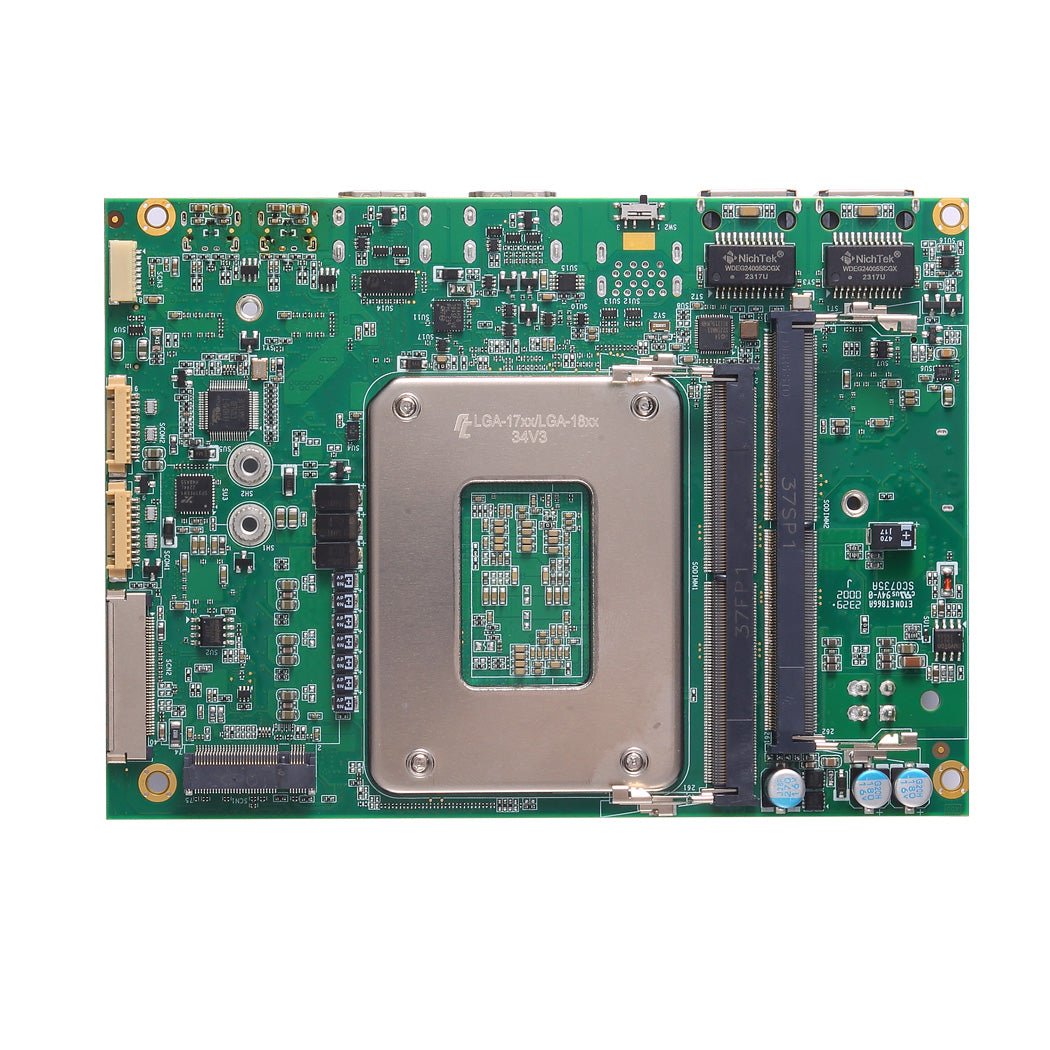

Powered by 13th/12th Gen Intel® Core™ i7/i5/i3 and Celeron® processors (up to 15W TDP), Axiomtek's CAPA561 offers scalable computing performance and power efficiency for diverse edge workloads. Its LGA1700 socket design provides easy CPU upgrades, extending product longevity and accelerating deployment. With dual SO-DIMM slots supporting up to 64GB of DDR5-4800 memory, the board ensures fast data throughput and smooth multitasking for AI inference, machine vision, and industrial applications.

Axiomtek's CAPA561 integrates five display interfaces, including two HDMI 1.4 ports, one eDP, and two DisplayPort connections via USB Type-C (DP Alt Mode), enabling up to four independent displays. This flexibility enables system integrators to configure versatile multi-screen setups without the need for additional graphics modules—ideal for digital signage, control systems, and monitoring dashboards that demand rich, synchronized visual output. Its powerful display capability enhances real-time monitoring, user engagement, and immersive visual experiences, even in space-constrained embedded environments.

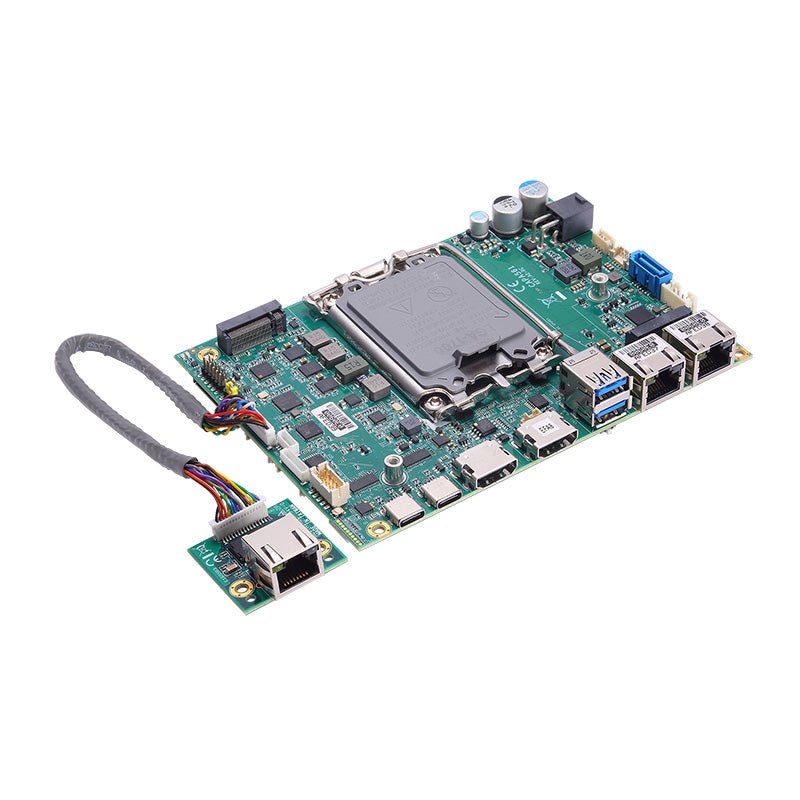

Designed for seamless system integration, Axiomtek's CAPA561 offers three M.2 slots—Key E for Wi-Fi, Key B for LTE/5G, and Key M for NVMe SSD—delivering wireless connectivity and ultra-fast storage on a single board without the need for additional daughterboards. It also offers three LAN ports (dual 2.5GbE and one GbE) and a full suite of USB interfaces, including two USB 3.2 Type-A, two USB 3.2 Type-C with DisplayPort support, and two USB 2.0, providing flexible, high-speed connections for a wide range of peripherals and industrial applications. Furthermore, the onboard TPM 2.0 module enhances hardware-level security, safeguarding critical data and ensuring system integrity.

Measuring just 146 x 104 mm, Axiomtek's CAPA561 delivers high performance in a compact footprint. It operates reliably under 0°C to 60°C with 10%–95% relative humidity, ensuring stable, long-term performance in factory automation, medical equipment, transportation, and surveillance applications that demand durability and efficiency.
