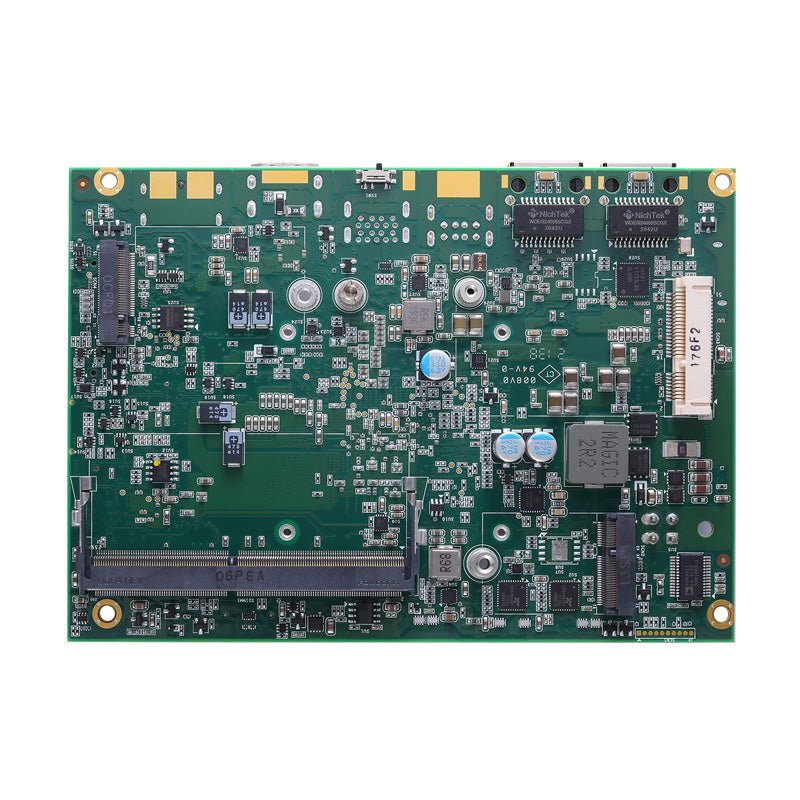

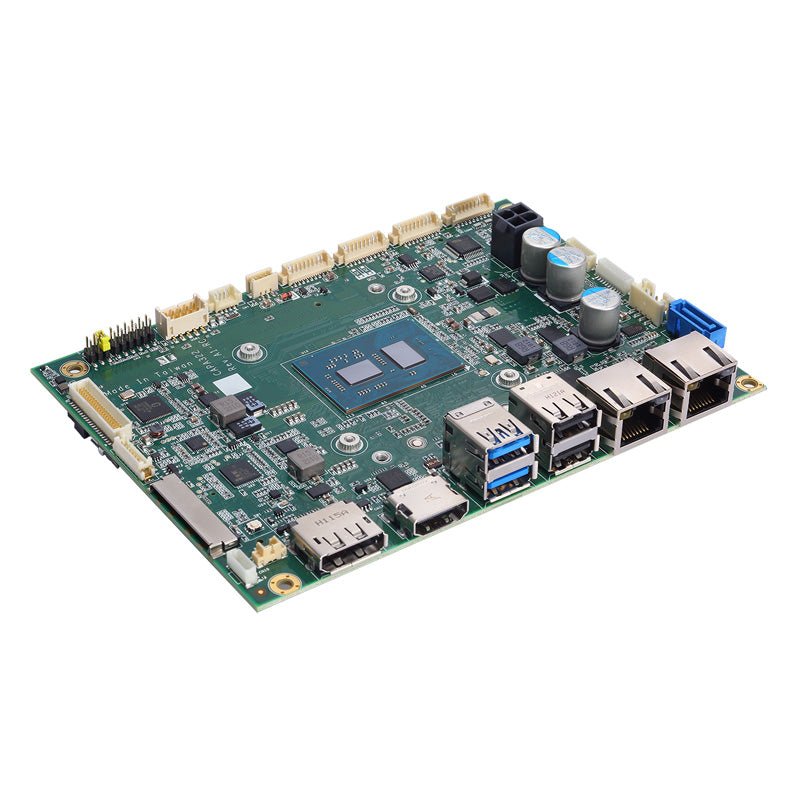

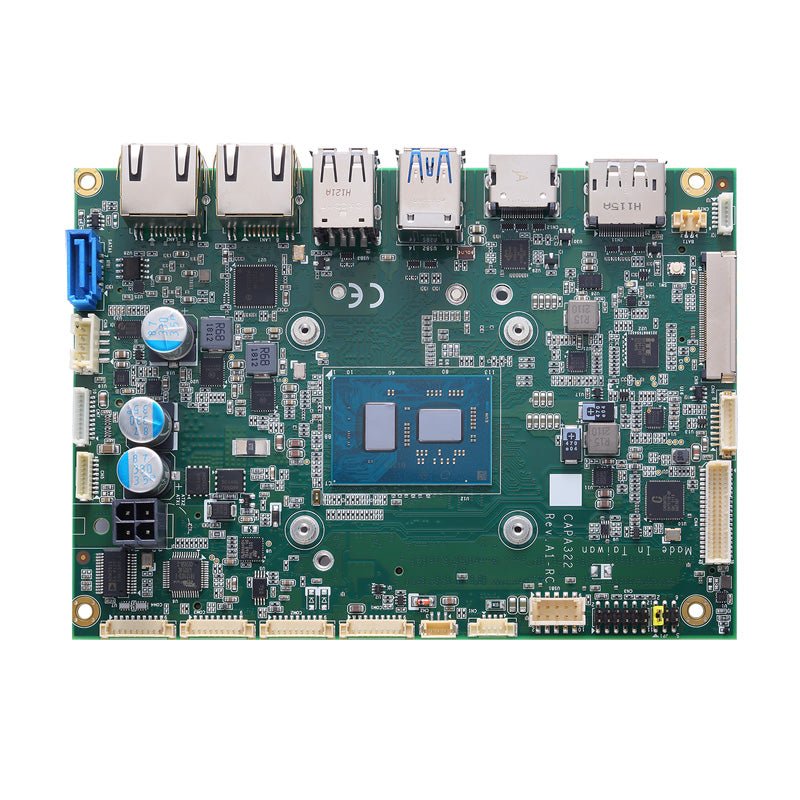

3.5-inch CAPA322

• Intel® Celeron® processor N6210/J6412 or Intel Atom® x6413E processor
• 1 DDR4 SO-DIMM for up to 32GB
• 4 USB 2.0 and 2 USB 3.2 Gen2
• 1 PCI Express Mini Card or mSATA
• 1 M.2 Key E and 1 M.2 Key B

Axiomtek's CAPA322 is an Intel Atom®-based 3.5-inch embedded board featuring two M.2 slots (Key E and Key B), a 2.5GbE LAN port and triple view display. The single-board computer is upgraded tremendously in connection speed and expandability to meet various demands for expansion and connectivity in IoT applications.

Axiomtek’s CAPA322 is powered by the onboard Intel® Celeron® processor N6210/J6412 and Atom® x6413E processor (code name: Elkhart Lake), which provide enhanced performance with better burst frequency. Especially the Atom® x6413E even supports the latest in-band ECC memory to improve safety and reliability. The wide operating temperature ranges from -20°C to +70°C or -40°C to +85°C maximizes the deployment potential. The input power adapts 12 to 24V DC in.

To speed up the data transmission in IoT applications, in addition to a GbE LAN port, the CAPA322 features a 2.5GbE LAN port as well. Then, the SBC now brings one M.2 Key B 3042/3050 slot for the cellular network, like 5G/ LTE/4G and one M.2 Key E 2230 slot for Wi-Fi connection, making the board applicable in a variety of applications that require connectivity. In addition, Axiomtek’s CAPA322 provides a triple view which includes HDMI 2.0 and DisplayPort++; while the LVDS co-layouts with the eDP, the user could choose either one according to the demand.

The tiny 3.5-inch embedded SBC has a 260-pin DDR4-3200 SO-DIMM and the system memory can reach 32GB at maximum. In terms of storage, the embedded board provides one SATA-600 (3.0) slot and an mSATA slot. The board supports optional TPM 2.0 to ensure the security of data and operation. The SBC features abundant I/O including two USB 3.2, four USB 2.0, two RS-232, two RS-232/422/485, and 8-channel DIO. It supports Windows® 10 and Linux operating systems.
