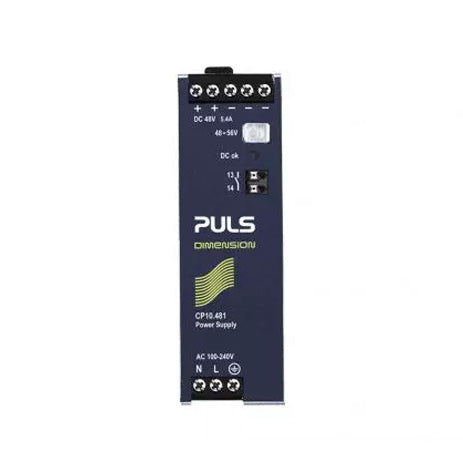

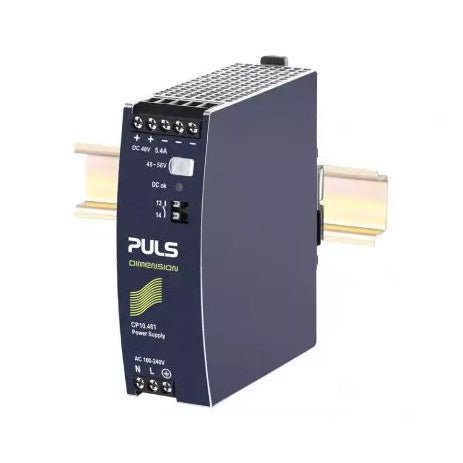

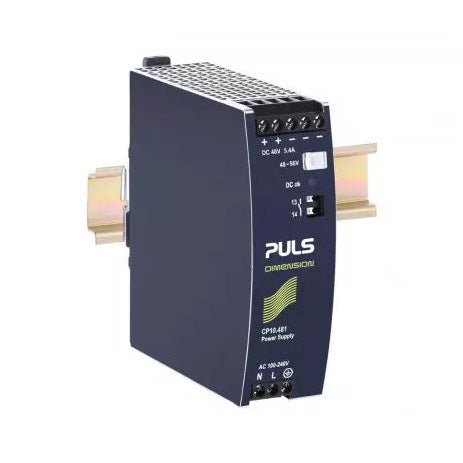

260W Din-Rail Power Supply CP10.481

260 Watt, 48V, 5.4A compact industrial din-rail power supplies for 1-phase system

$0.00
9% Tax included Shipping calculated at checkout.

- AC 100-240V Wide-range input
- Compact design, width measuring 39mm
- Efficiency up to 95.5%
- Excellent partial load efficiency
- Safe HiccupPLUS overload mode
- Active power factor correction (PFC)
- Minimal inrush current surge
- Full power between -25°C and +60°C
- DC-OK relay contact



PULS Dimension CP10 Series industrial power supply offers high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range in a compact din-rail form factor. PULS CP10 Series offers a power reserve of 10% up to +60°C and 20% up to +45°C included, which may even be used continuously. PULS CP10 can deliver three times the nominal output current for at least 12ms which helps to trip fuses on faulty output branches. High immunity to transients and power surges as well as low electromagnetic emission.



PULS CP10 Series features a DC-OK relay contact. Certified by numerous international approval bodies, PULS CP10 Series safety features range from output over-voltage protection, input transient protection, isolation resistance safety feature and more. Supplementary redundancy modules can be added for redundant system design.



PULS CP10.481 Series can be operated in several modes*

(a) Parallel use to increase output power
(b) Parallel use for redundancy
(c) Series operation
(d) Inductive and capacitive loads
(e) Charging of VRLA/SLA batteries
(f) Two phase operation

*Please refer to datasheet on full details
