Axiomtek

ATX Motherboard IMB541

ATX Motherboard with LGA1700 Socket 12th Gen Intel Core i9/i7/i5/i3, Pentium or Celeron Processor, Intel Q670E, USB 3.2 Gen1x1 , SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI

$0.00
9% Tax included Shipping calculated at checkout.
Datasheet

- LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Alder Lake S)
- Four 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
- Supports triple-view with VGA, DVI-D, and HDMI connectivity
- Supports M.2 Key M 2280 and Key B 2230
- 6 USB 3.2 Gen1x1 and 2 USB 3.2 Gen1x1 (internal)
- TPM 2.0 supported (optional)



Axiomtek IMB541, an industrial ATX motherboard with Intel Q670E chipset featuring the LGA1700 socket for the 12th Gen Intel Core i9/i7/i5/i3, Intel Pentium or Intel Celeron processor (code name: Alder Lake-S). Designed to be future-proof, the IMB541 will soon support the latest 13th and 14th Gen Intel Core processors as well. The ATX motherboard has a PCIe Gen4 x16 slot, ensuring heightened bandwidth and graphics performance for fast data transfer, impeccable frame rates, and minimal latency.



IMB541 ATX motherboard seamlessly integrates into 1U, 2U, 4U, or tower chassis configurations. It features six PCIe slots. One PCIe 4.0 x16 slot, four PCIe 3.0 x4 slots, and one PCIe slot, catering to GPU, AI acceleration, frame grabber, and motion control card configuration. In addition, it supports M.2 Key M 2280 for storage and M.2 Key B 2230 for PCIe x1 and USB expansion. Axiomtek’s IMB541 features a robust memory configuration of four 288-pin DDR4-3200 non-ECC Long-DIMM slots with a collective capacity of 128GB. Incorporating a wide array of I/O interfaces, Axiomtek IMB541 supports six USB 3.2 Gen1x1, two USB 3.2 Gen1x1 (internal), five USB 2.0, four RS-232, one RS-232/485, one RS-232/422/485, one 2.5GbE LAN port, one GbE LAN port, 8-channel programmable digital I/O, and one PS/2 keyboard.



IMB541 has versatile display options with VGA, HDMI, and DVI-D ports, supporting triple-view display. It incorporates four SATA-600 ports with RAID 0/1/5/10 functionality for enhanced storage capabilities. Trusted Platform Module 2.0 (TPM 2.0) is available to ensure critical information security. More functions include hardware monitoring for CPU/system temperature, voltage detection, and smart fan control.

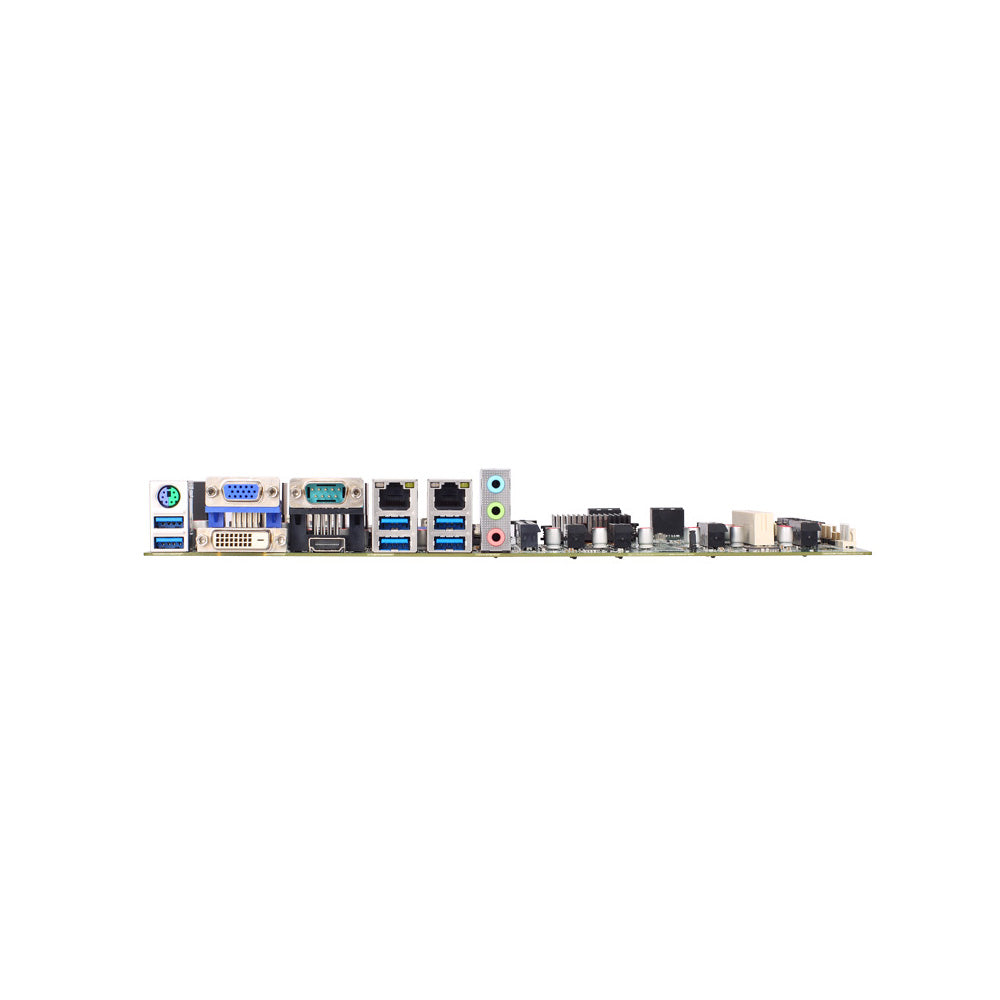

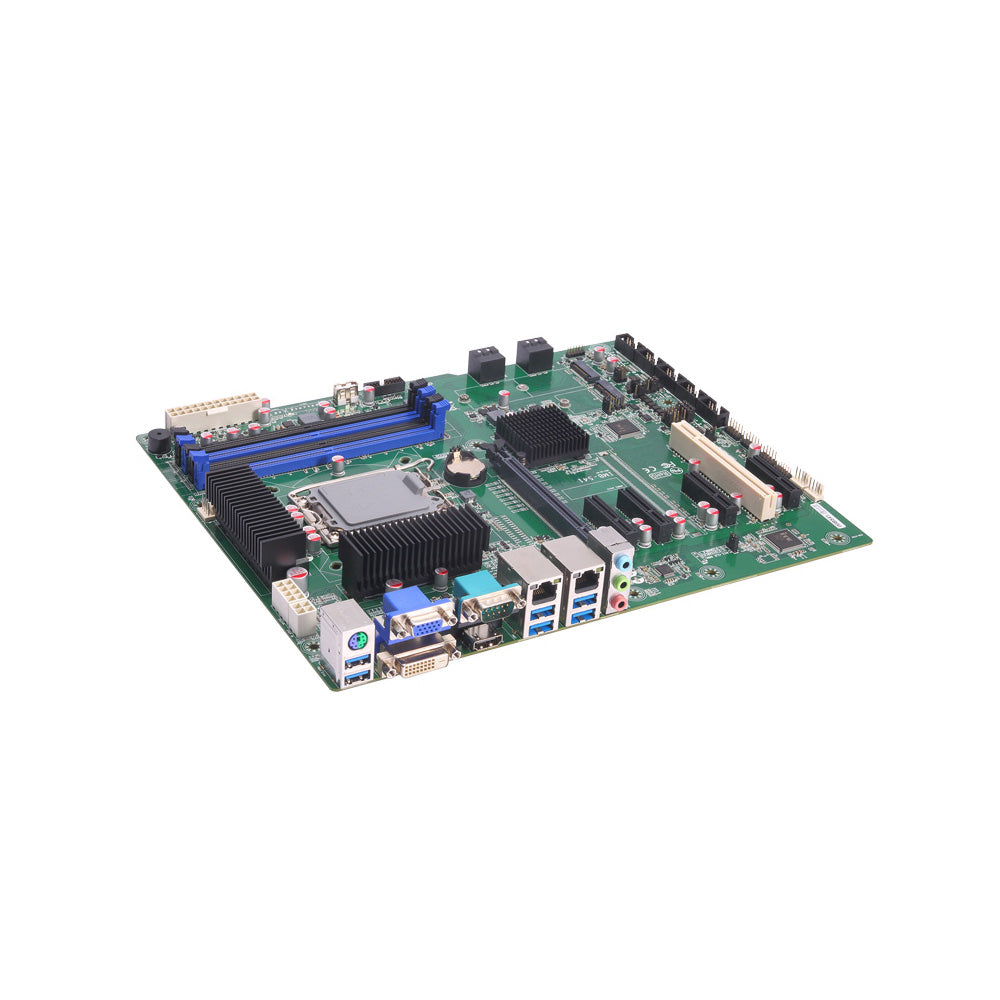

ATX Motherboard Axiomtek IMB541
