USB Converter UPort 1150

- Automatic Recovery Data Communication (ARDC)
- Additional I/O or IRQ not required
- Compatible with USB 2.0
- Full-speed USB operation at up to 12 Mbps
- Serial transmission speed up to 921.6 kbps for fast data transmission
- Virtual machine supported for VMWare Fusion/ESXi and Parallels
- 64-byte FIFO and built-in hardware and software flow control
- Support for RS-422, 2-wire RS-485, and 4-wire RS-485
- Full range of drivers supported for Windows, Linux, macOS, Andriod
- LEDs status indicators for USB and TxD/RxD activity
- 15 KV ESD protection for all serial ports
- Includes mini DB9 female to terminal block adaptor for easy wiring

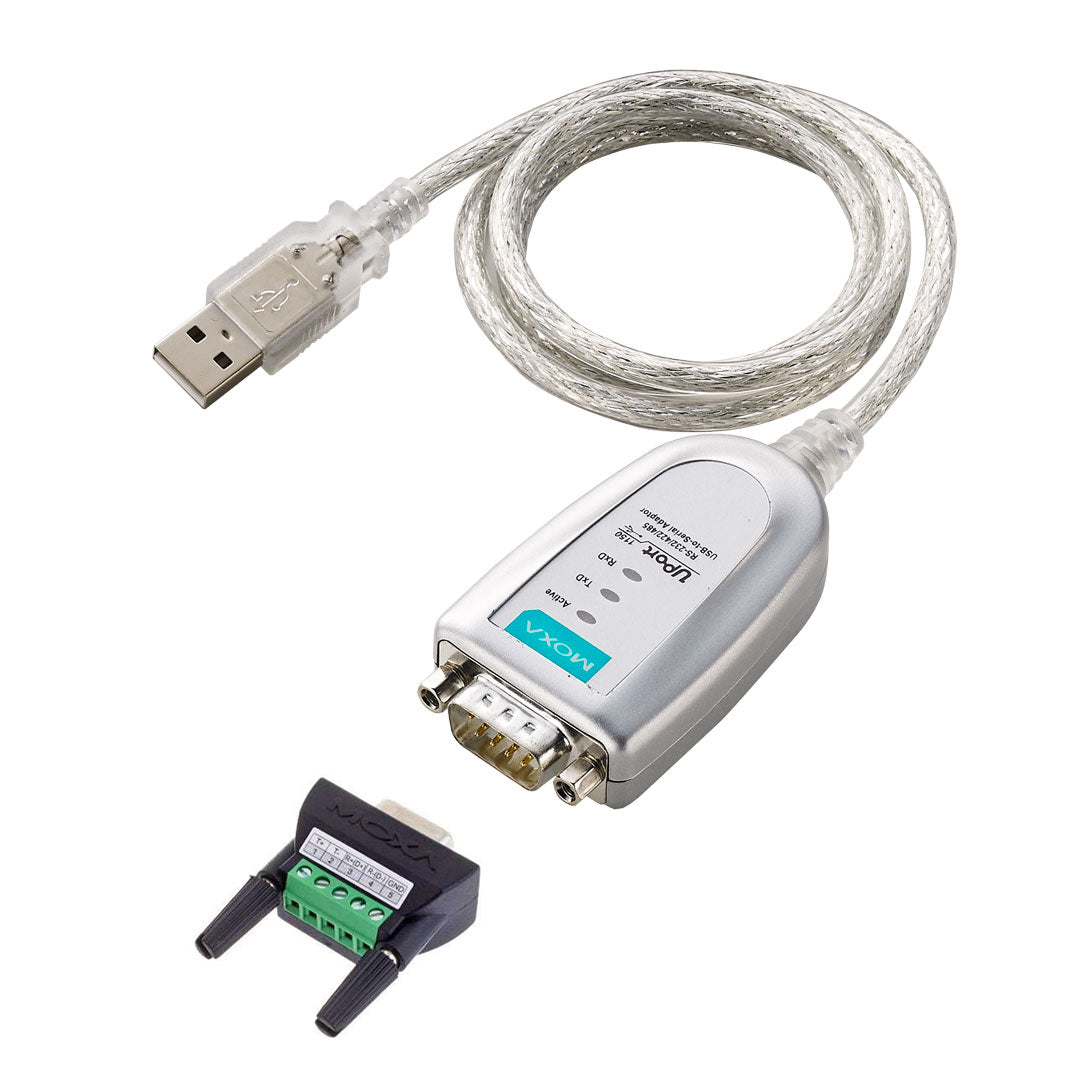

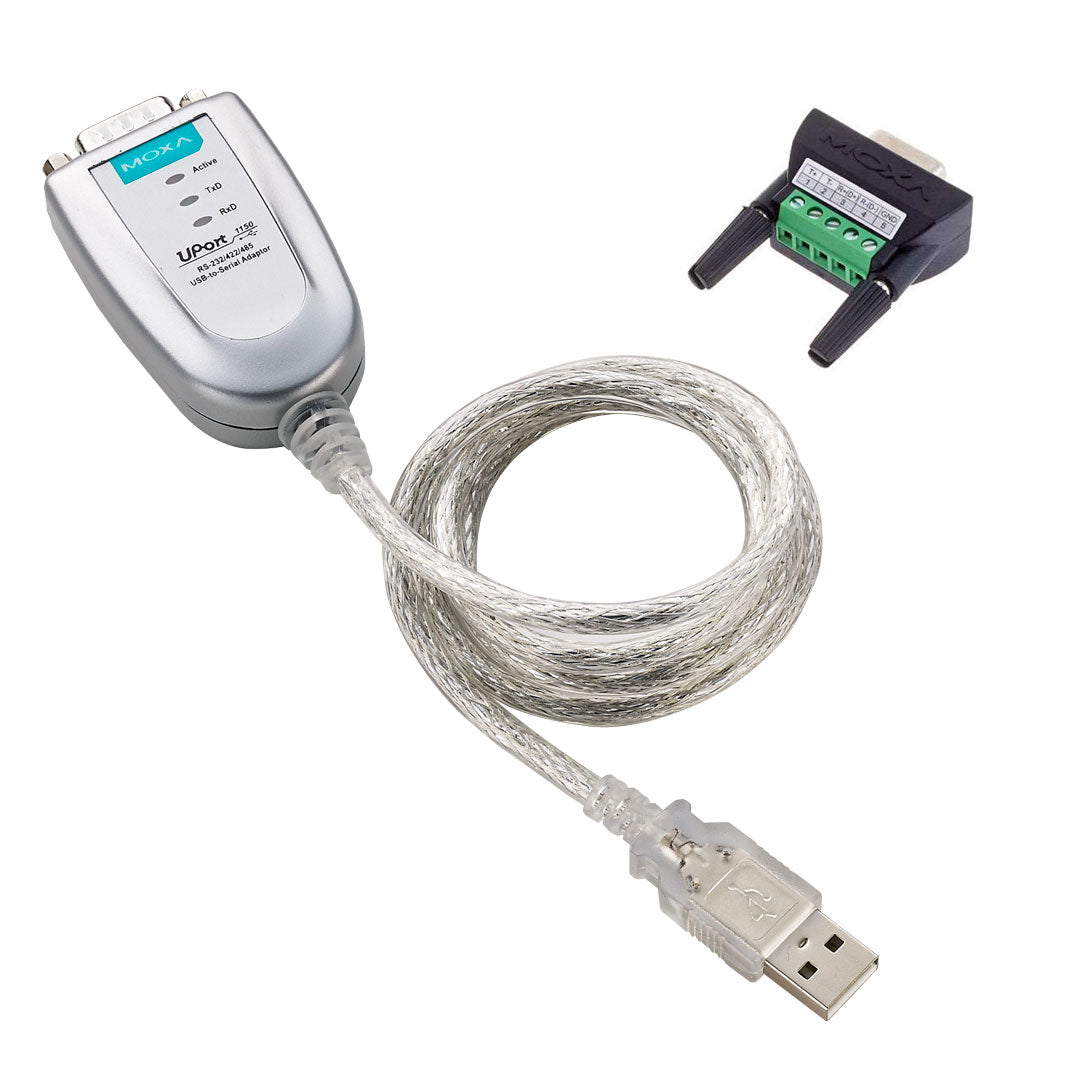

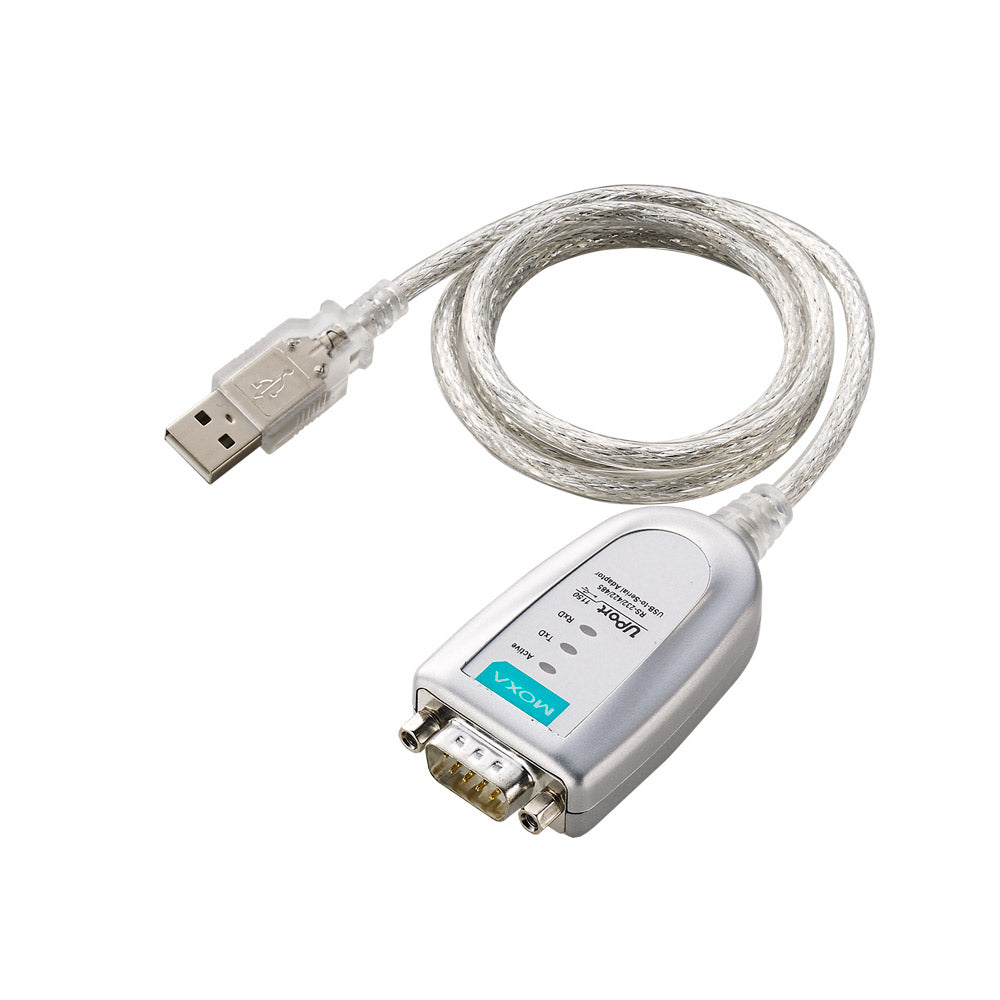

Moxa UPort 1150 USB to serial converter provides a reliable and easy way to add serial COM port to your laptop/computer. UPort 1150 adds one RS-232, RS-422, 2 wire RS-485, or 4 wire RS-485 port to your computer (Default setting is RS-232). Simply install the drivers, connect the UPort to your computer, plug in your serial devices, and you’re ready to go. Programming is not required, and you do not need to worry about IRQs, configuring a board, power requirements, or connection schemes.

Moxa Uport series is compatible with legacy and latest windows operating systems, macOS, Linux and Android platforms. Making it a very useful tool for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector. It is a useful and reliable tool for engineers to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

Prevent Data Loss - Automatic Recovery Data Communication (ARDC) Feature

Moxa's Uport ARDC feature makes it easier to recover data transmission, even if the  cable is accidentally unplugged. This means that you do not need to worry about reconfiguring complex  settings to ensure smooth data  transmission. If the USB cable is accidentally unplugged, reconnect back to the same port. Moxa Uport 1150 will automatically reconnect with the host and continue your data transfer process. This eliminates the need for reconfiguration and lowers probability of data loss.

Easy Installation Process

Installation of Moxa Uport 1150 for serial to USB connectivity is simple. First, install the driver; then, plug the converter into a USB port. When Uport 1150 converter is connected, Windows will load the correct drivers for the converter and the new COM port. For best results, TNS recommends installing the driver before plugging the converter into USB port. After the driver and hardware have been successfully installed, the new COM port will have a COM number and  can be accessed and controlled just like your PC’s built-in COM ports. If you need to change the baudrate, parity, or other COM port settings, you may use your serial communication application to make those changes.

Advanced Functions: Fixed-base COM Mode

Moxa’s UPort 1100 series provides the unique Fixed-base COM function that allows users to set a specific beginning COM port number. Regardless of which UPort is plugged into the host, the COM port numbers for the
UPort’s serial ports will be numbered sequentially—starting with the initial COM port number.

Moxa Uport 1150 Serial Port Assignments

Moxa UPort 1150 uses male DB9 connectors. Pin assignments are shown in the following diagram:

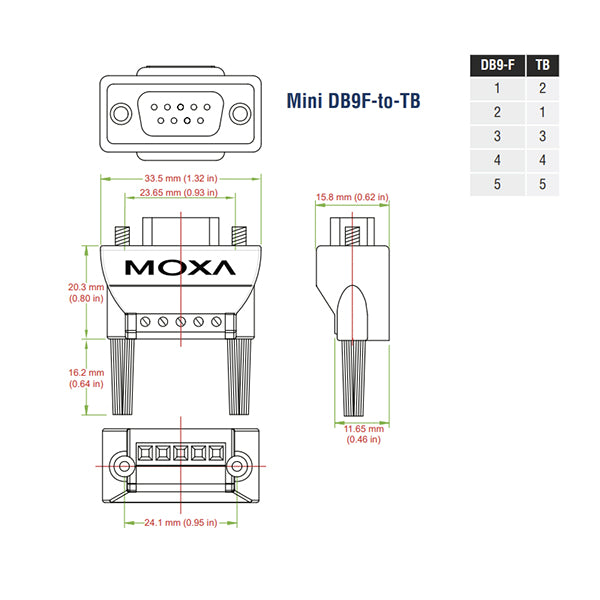

A compact terminal block converter (DB9F to terminal block) is included with UPort 1150 to simplify wiring to serial devices. Note that Uport 1150 converter maps pin 1 on the DB9 connector to pin 2 on the terminal block, and pin 2 on the DB9 connector to pin 1 on the terminal block.Pin assignments as shown below:
