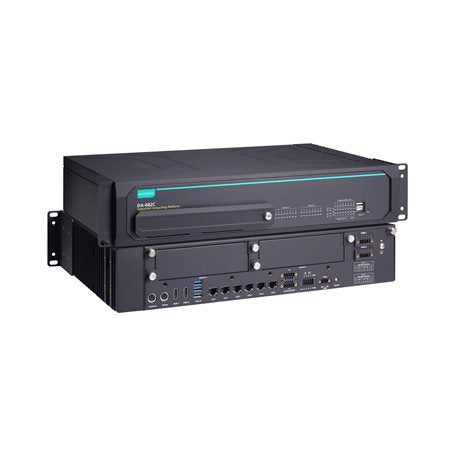

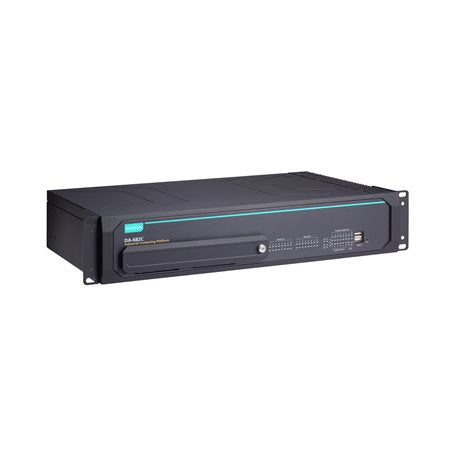

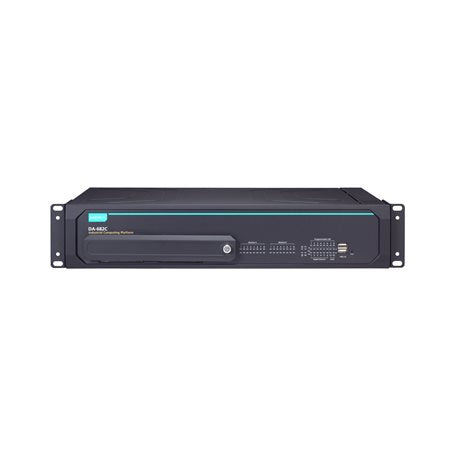

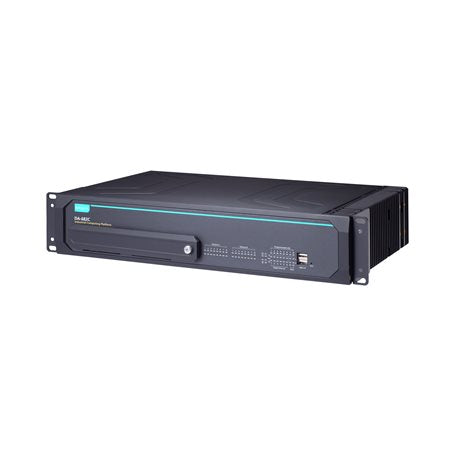

Power Substation Computer DA-682C

- IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
- 7th Generation Intel Core Processor
- DDR4 memory slot; up to 32 GB capacity
- Two hot-swappable 2.5-inch HDD or SSD storage expansion trays
- EN 50121-4 compliant for railway wayside applications
- Redundant power supply (100 to 240 VAC/VDC)

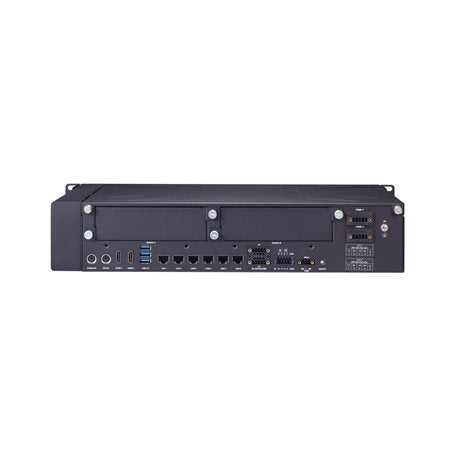

Moxa DA-682C computer is built around Intel Celeron or Intel® Core™ i3, i5, or i7 CPU and comes with dual display ports (2 x HDMI), 6 USB ports, 6 Gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 6 digital input ports, and 2 digital output ports. The DA-682C is equipped with 2 hot-swappable 2.5” HDD/SSD slots and supports the Intel RST RAID 0/1 functionality. The modular design incorporates two independent slots for flexible system integration and expansion. A variety of communications modules are available. This includes 8-port RS232/422/485 module and 4 port 10/100/1000 Mbps LAN module.

With IEC 61850-3 and IEEE 1613 compliance, Moxa DA-682C delivers stable and reliable system operation for power applications. It also complies with the IEC 60255 standard, which covers the protection of electrical relays in a smart substation. IEC 60255 is one of the most widely used standards for testing relays and protection equipment, and compliance with the standard ensures that the DA-682C will work reliably and seamlessly with IEDs as part of a robust substation automation system.

EN 50121-4 compliance confirms that the DA-682C can deliver stable and reliable system operations in rail wayside applications, such as station SCADA systems, wayside disaster prevention, traction power, and signaling and safety systems to provide an integrated view of your smart rail setup. The housing is a standard 2U, 19-inch wide, rack-mountable rugged enclosure. This robust, rackmount design provides the hardened protection needed for industrial environment applications.
