Axiomtek

Embedded Computer UST200-83H-FL

Robust and Compact DIN-rail Fanless Embedded System with Intel Atom x5-E3930 Processor for In-vehicle Gateway Application

Datasheet
SGD $0.00
9% Tax included Shipping calculated at checkout.

- CE, FCC certified; ISO 7637-2 compliant
- Intel Atom x5-E3930 processor
- Cost-effective with fanless and cableless design
- Wide operating temperature range from -40°C to +70°C
- Supports 12 & 24 VDC typical in-vehicle power input
- Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
- 1 COM or CAN, 2 USB, 2 GbE LAN
- 8-bit programmable DIO for IoT gateway applications
- Supports SocketCAN
- AMS.AXView intelligent remote monitoring

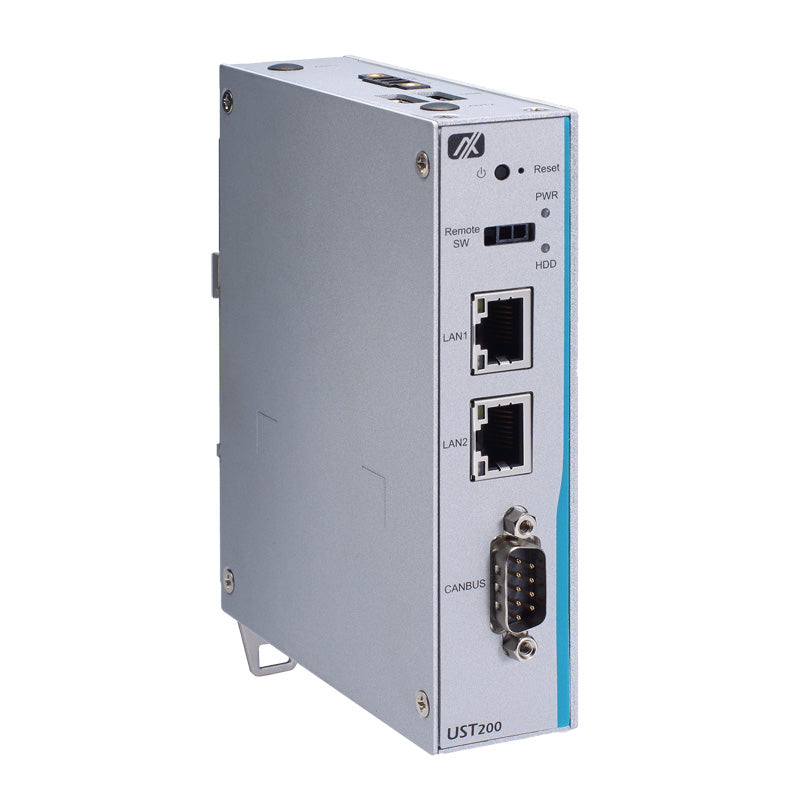

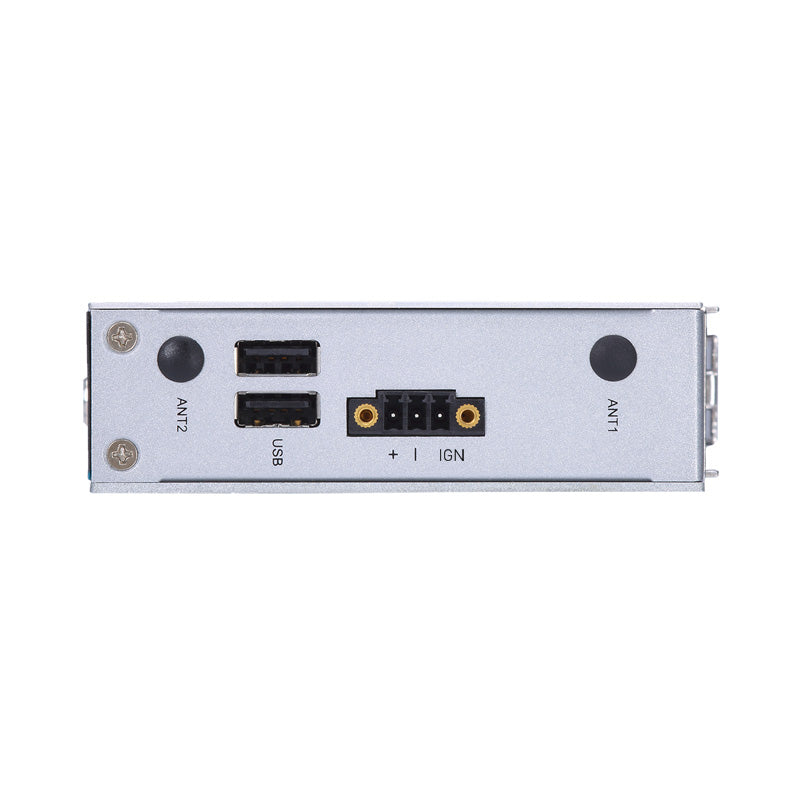

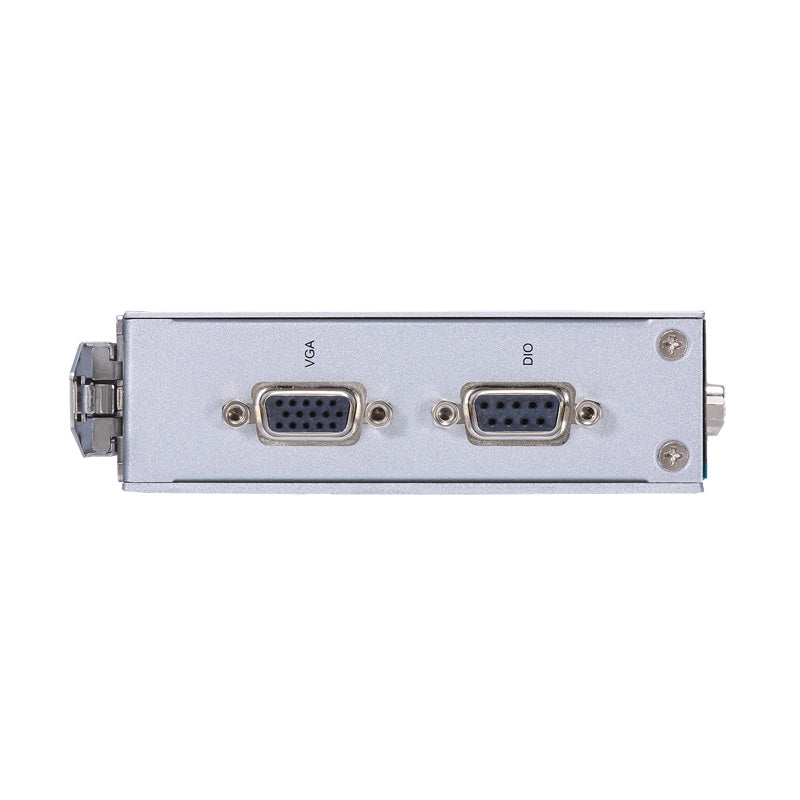

Axiomtek UST200-83H-FL offers a power-efficient design to maximize operational efficiency. This in-vehicle embedded system features smart ignition power control. It supports 12 and 24 VDC typical automotive power input or wide-range 9 to 36V DC power input. UST200-83H-FL has one DDR3L-1866 SO-DIMM slot for up to 8GB of system memory. It has one full-size PCI Express Mini Card slot (USB/PCIe interface with SIM socket) and one half-size PCI Express Mini Card slot (mSATA/USB/PCIe interface) for a wide selection of modules. It has a half-size mSATA shared with its PCI Express Mini Card slot for storage. I/O options include one DB9 RS-232/422/485 or CANBus 2.0 A/B supporting SocketCAN, one VGA port, two USB 2.0 ports, two RJ-45 LAN ports with isolation and one DB9 8-bit programmable DIO. This cost-efficient in-vehicle PC is compatible with Windows 10 IoT, Linux and Axiomtek AXView remote monitoring software.

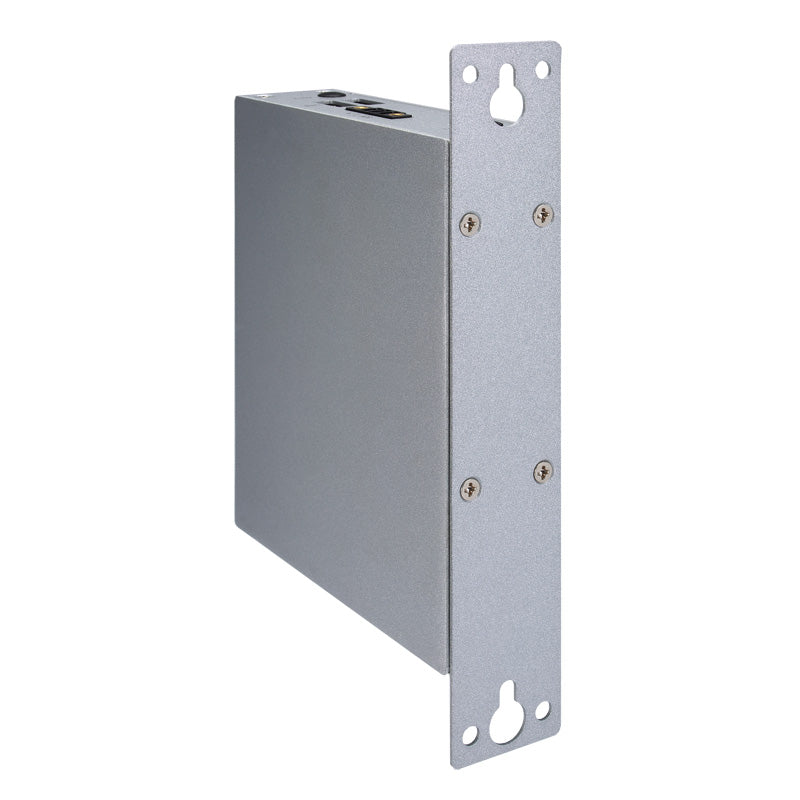

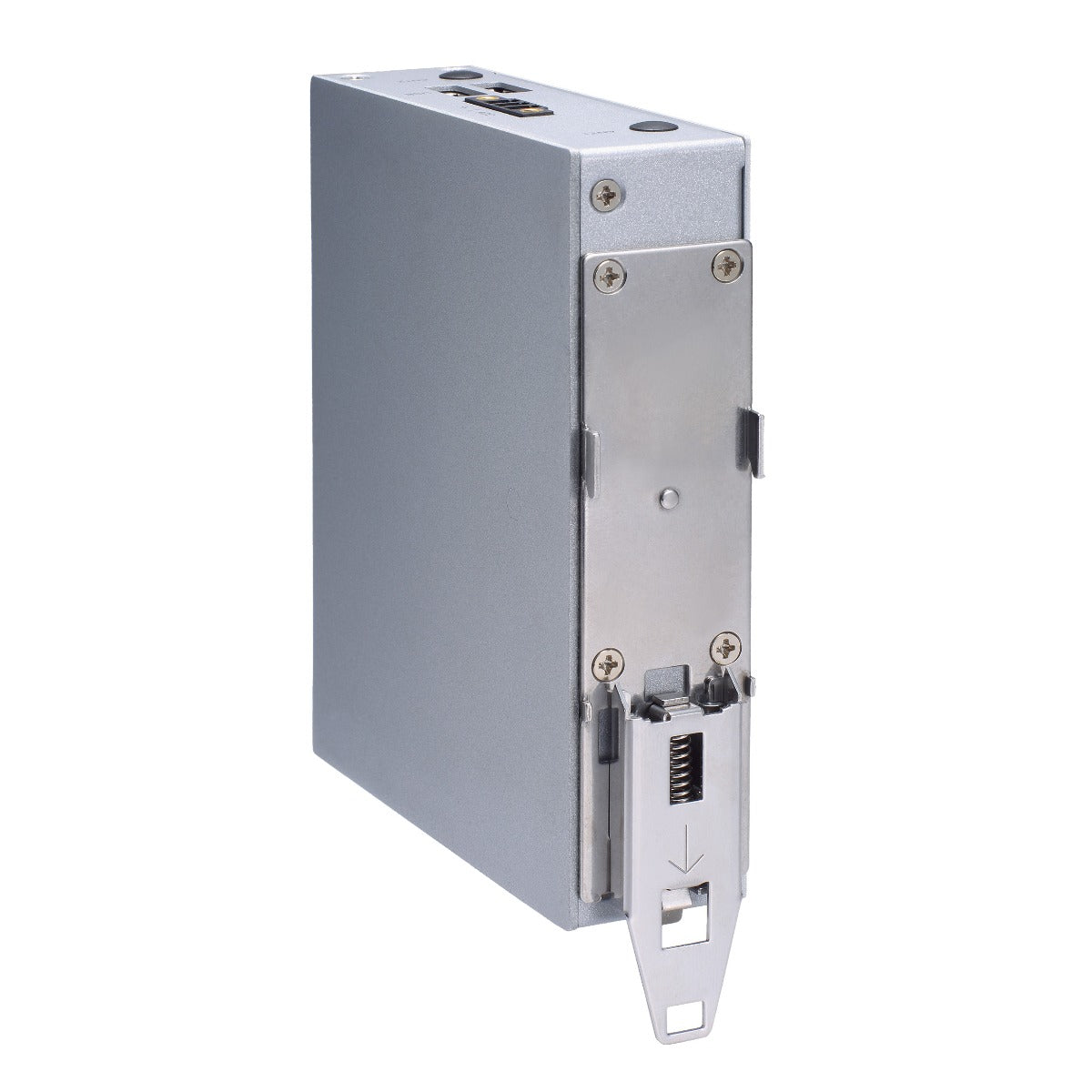

UST200-83H-FL operating temperature range from -40°C to +70°C and vibration of up to 3 Grms. Both wall and din-rail mounting are supported. The flexible IoT gateway is suitable for in-vehicle applications ranging from buses, police cars, ambulances, cold chain trucks, forklifts to heavy-duty vehicles
