Ethernet Switch TN-5300A Series

•  Rugged die-cast design for use in harsh environments
•  Isolated power input range from 24 to 110 VDC
•  Complies with all EN 50155 mandatory test items
•  -40 to 70°C wide-temperature design

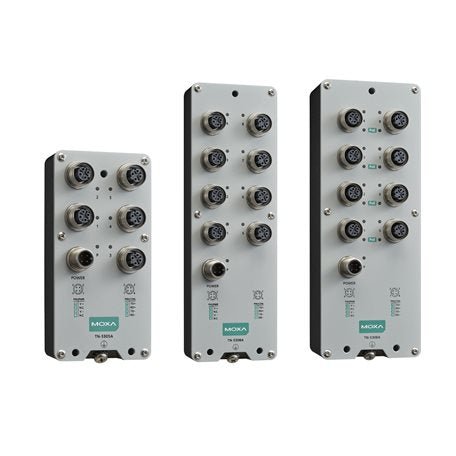

Moxa's ToughNet TN-5300A Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. Moxa's TN-5300A Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable resistance against environmental disturbances, such as vibration and shock. Moxa's TN-5300A Series Ethernet switches provide 5 or 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

Moxa's TN-5300A Series models support an extended operating temperature range of -40 to 70°C. Moxa's TN-5300A Series also comply with all mandatory requirements of the EN 50155 standard including operating temperature, power input voltage, surge, ESD, and vibration, making these switches suitable for rolling stock and a variety of other industrial applications.

Moxa's TN-5300A Series features a single power input with overload, reverse polarity, and inrush current protection. Additionally, Moxa's TN-5308A PoE models provide 8 IEEE 802.3af/at compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port and have a total power PoE budget of 50.2 Watts.
