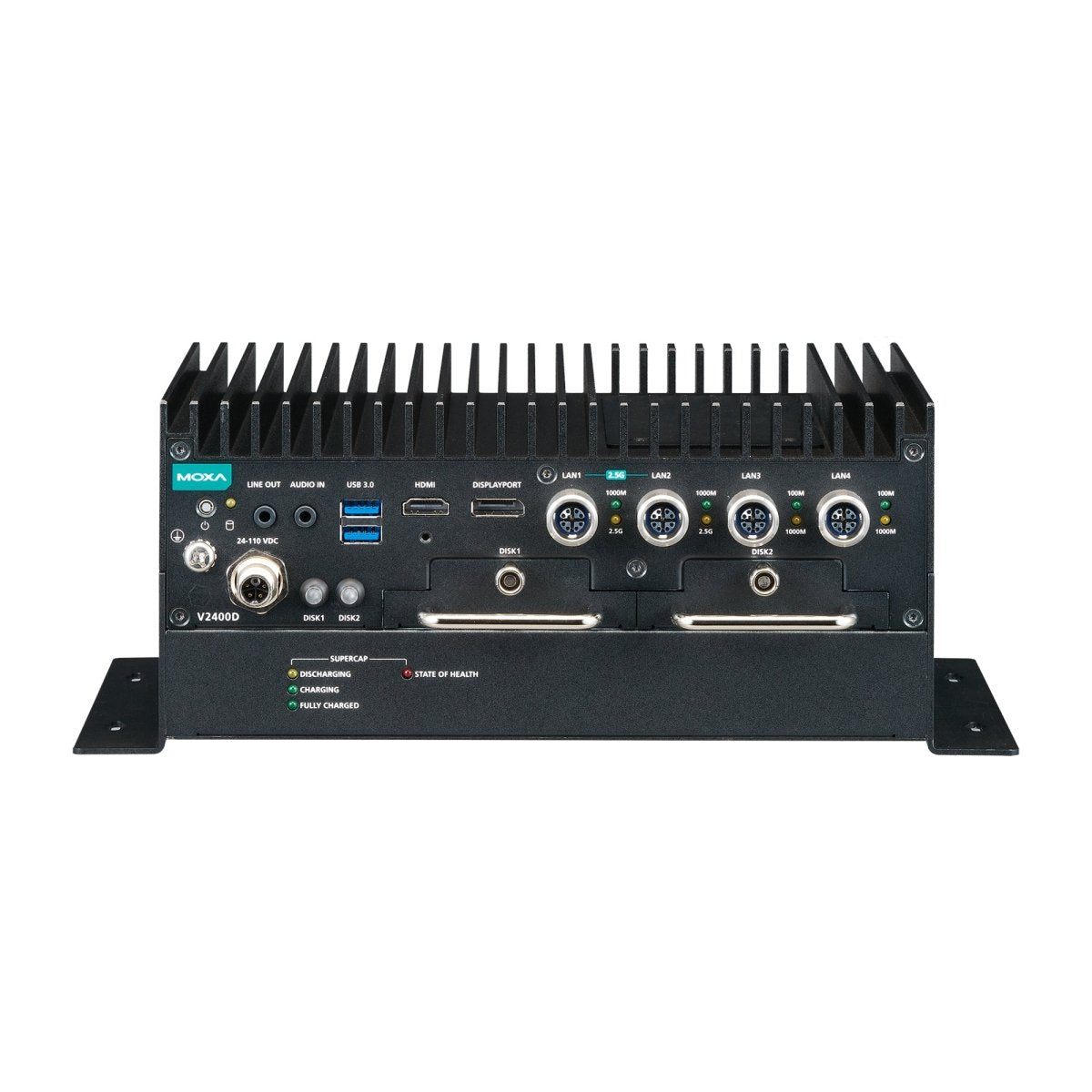

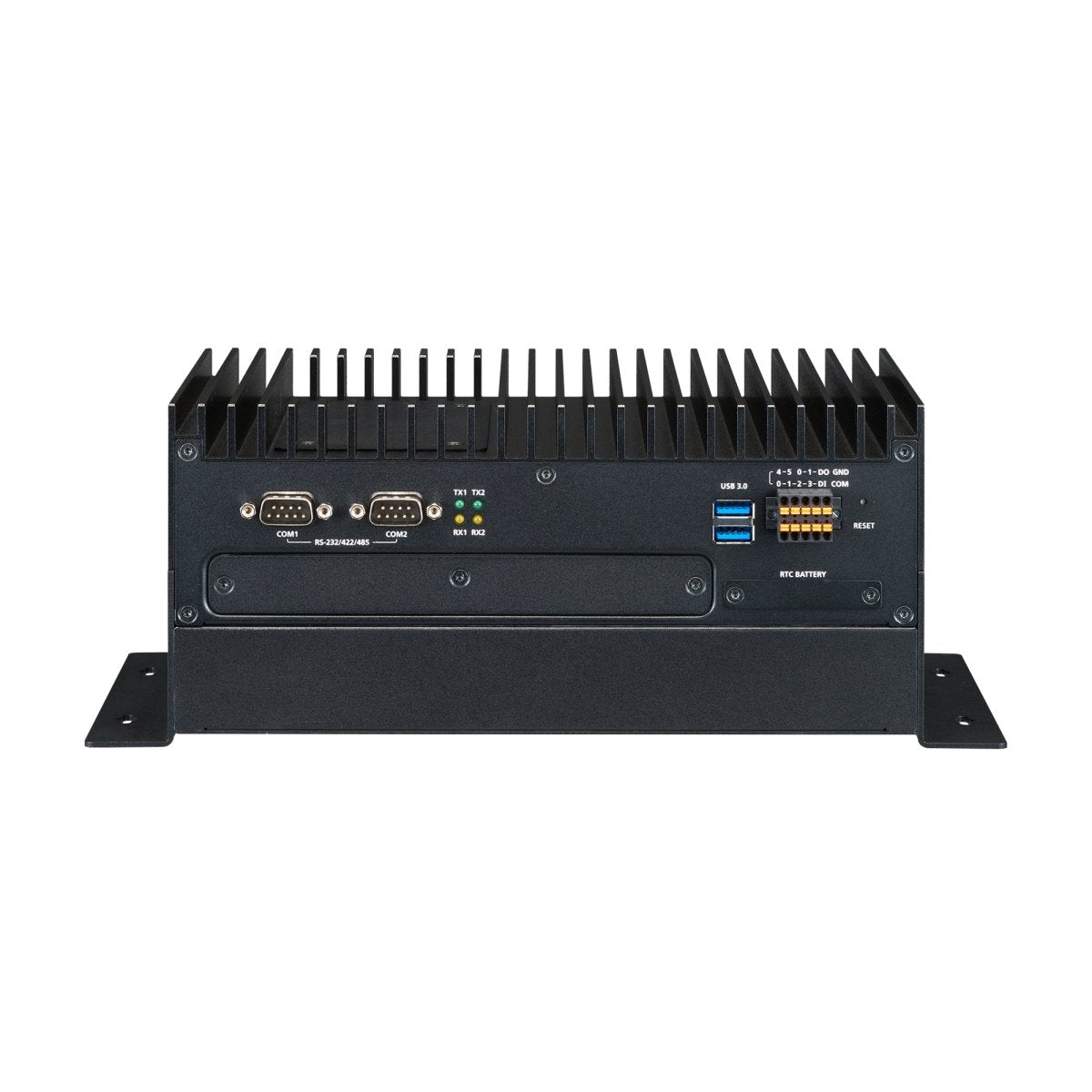

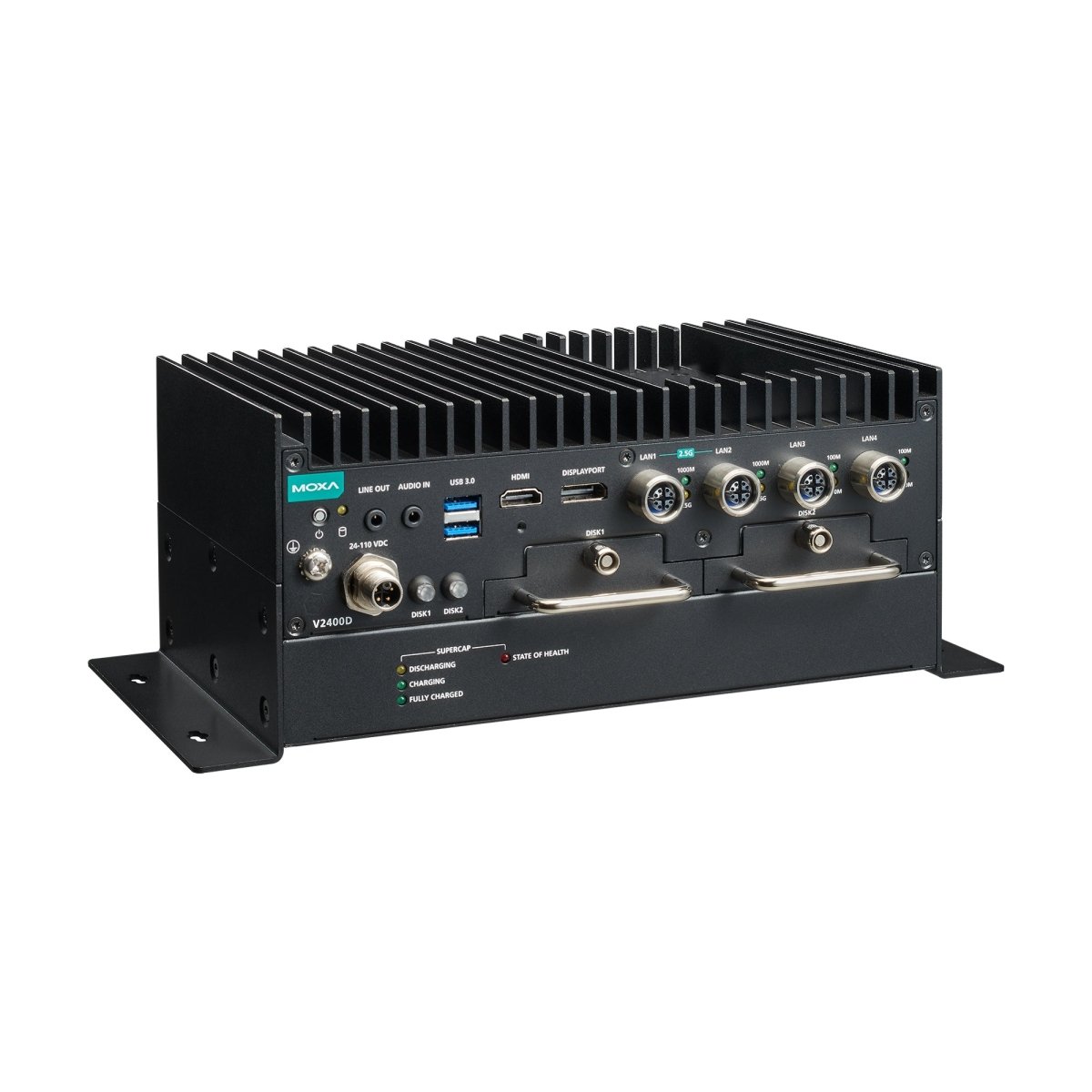

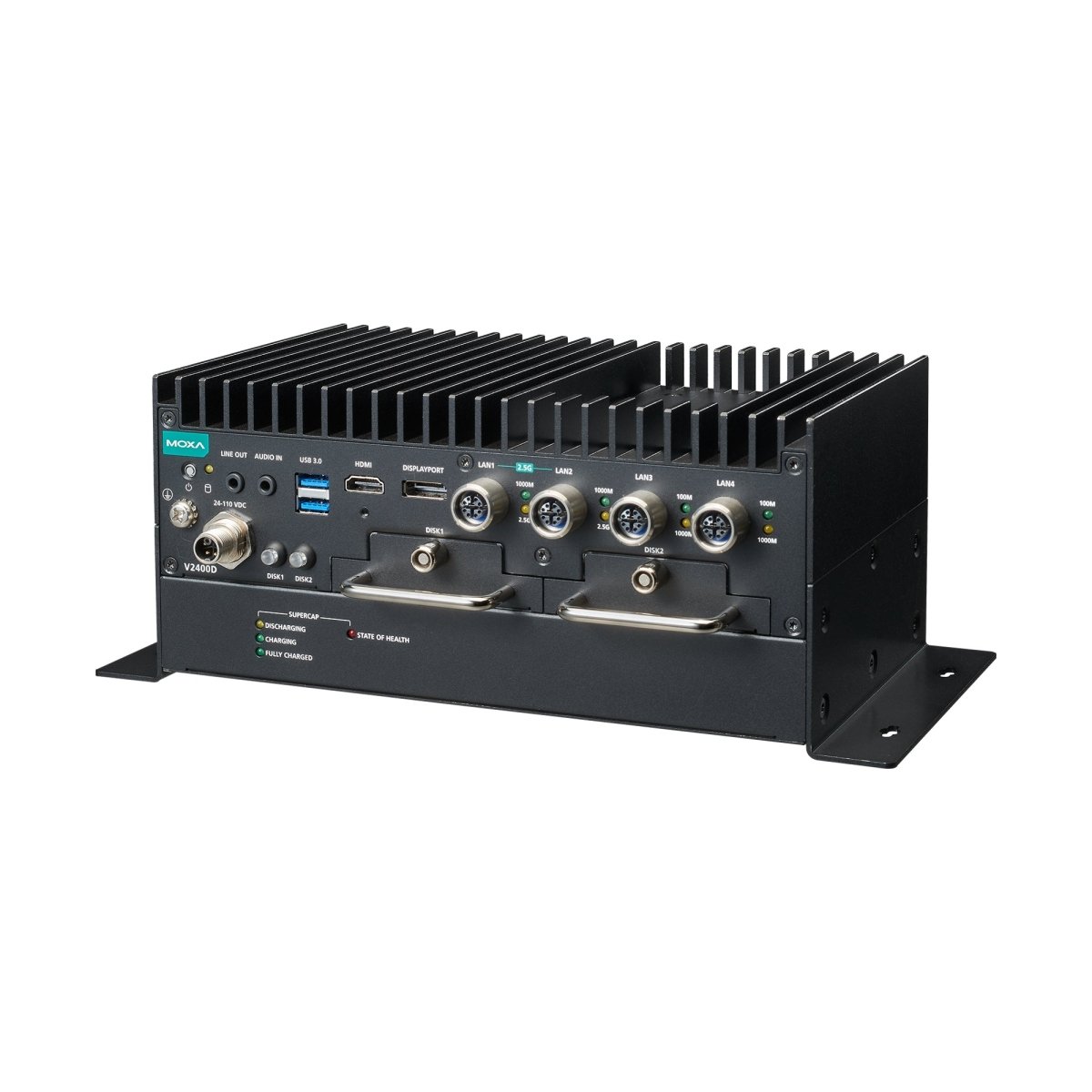

Railway Embedded Computer V2400D

•  Intel® Core™ 3 (100U) or 7 (150U) processor based embedded computer
•  2 DDR5 memory slots with up to 64 GB capacity
•  Dual independent displays (HDMI and DisplayPort)
•  2 secure hot-swappable HDD/SSD slots with locks
•  2 2.5GbE ports with M12 X-coded inner push-pull connectors
•  Onboard TPM module for enhanced cybersecurity
•  Complies with all EN 50155 mandatory test items
• -40 to 70°C wide-temperature design

Moxa V2400D Series embedded computers are built around an Intel® Core™ 3/7 processor and come with up to 64 GB DDR5 memory, one internal M.2 2242 M-key storage slot, and two hot-swappable 2.5–inch HDD/SSD storage slots for storage expansion. The computers comply with railway requirements for operating temperature, power input, and EMC, making them suitable for onboard and wayside applications in harsh railway environments.

For enhanced data protection, the front-accessible storage slots are equipped with a lock, allowing only authorized personnel to access the storage devices. Moxa V2400D computers provide a rich set of interfaces, including 2 1GbE ports, 2 2.5GbE ports, 2 RS-232/422/485 serial ports, 6 digital inputs, 2 digital outputs, 4 USB 3.0 ports, HDMI, and DisplayPort, enabling seamless integration with onboard systems and field devices.. A built-in TPM 2.0 module further strengthens platform integrity and provides hardware-based protection against unauthorized access and tampering.
