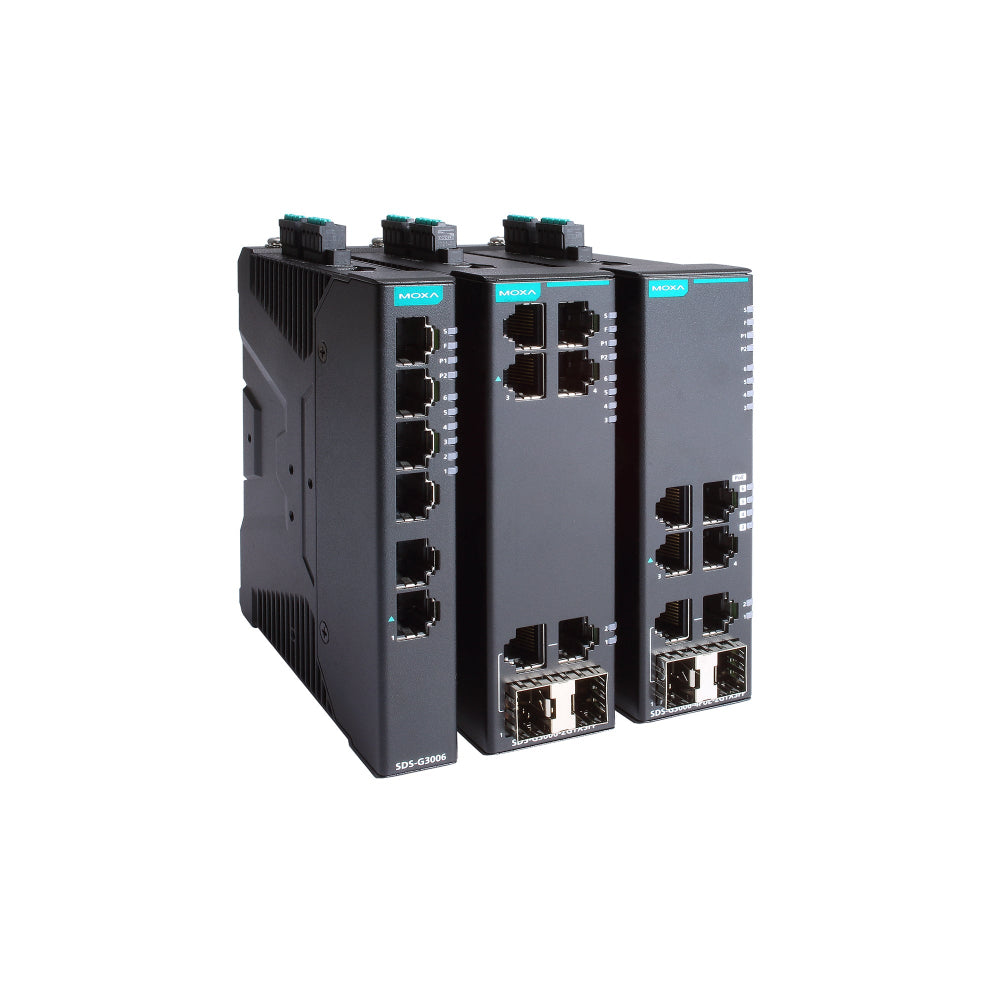

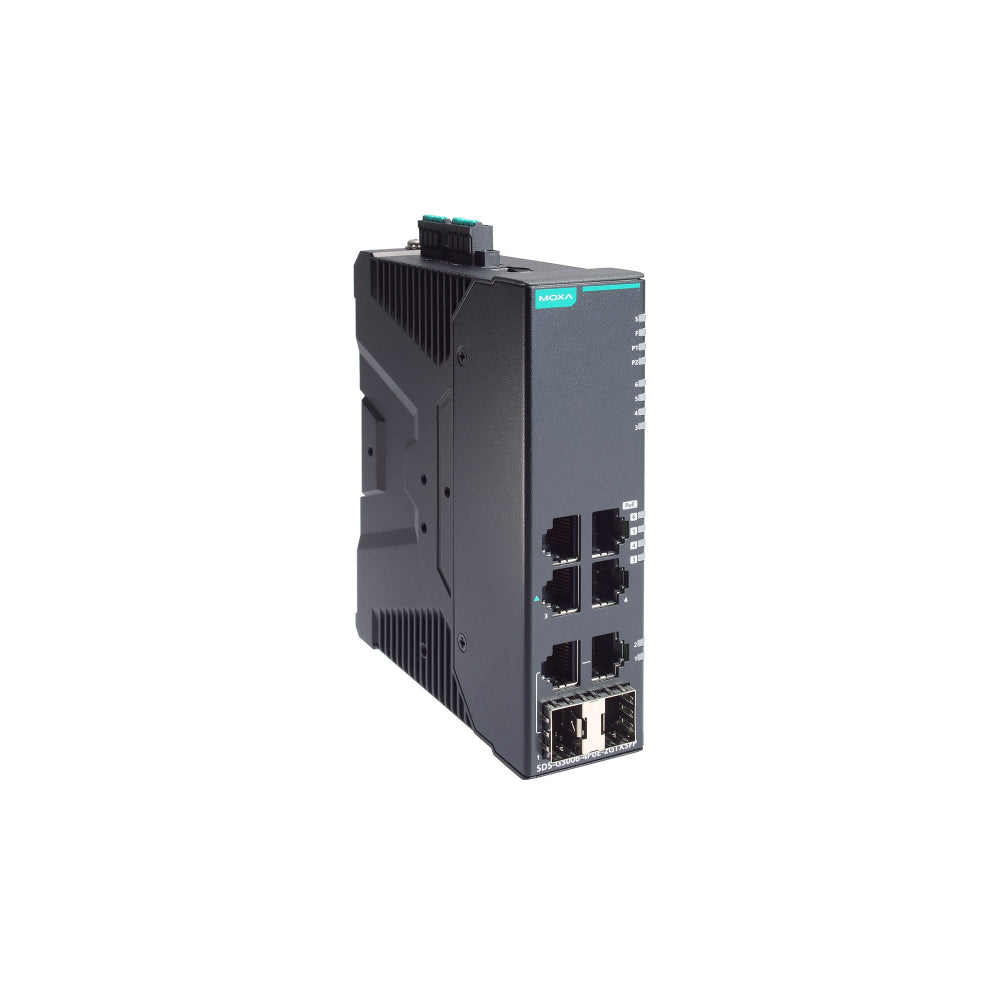

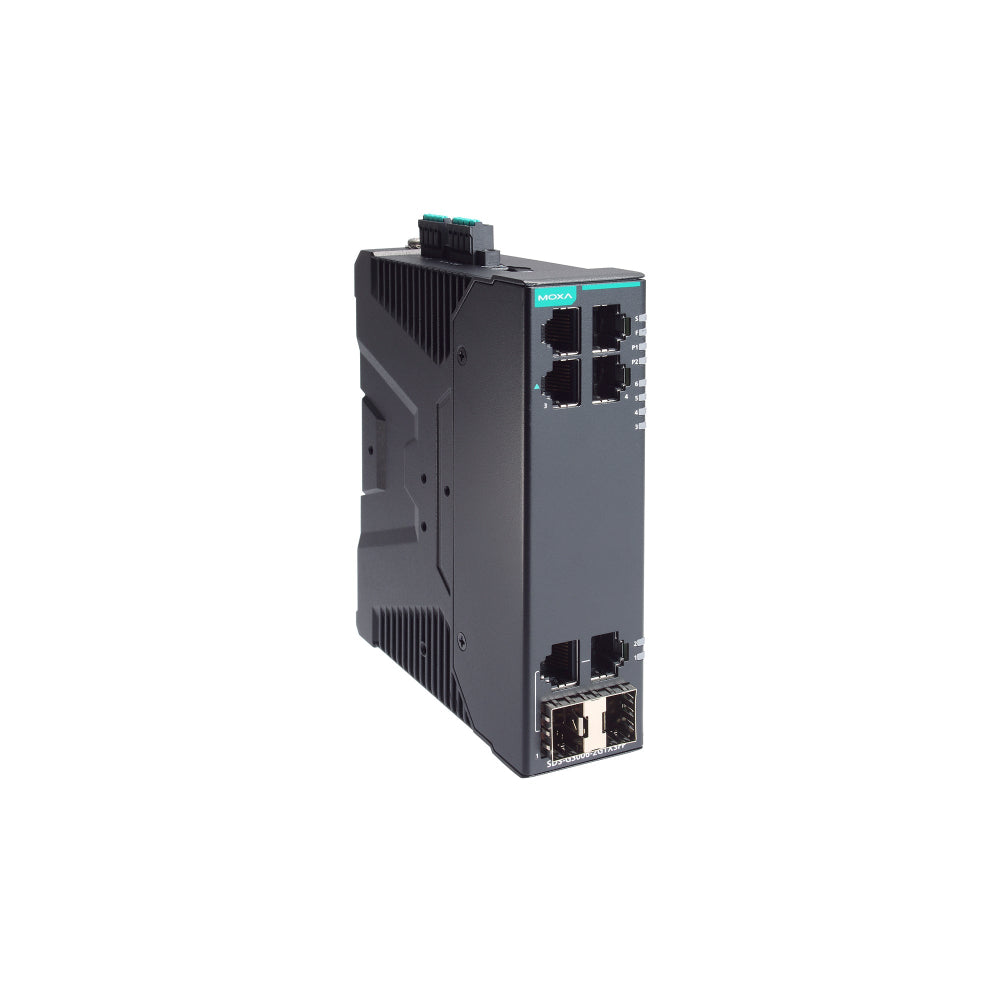

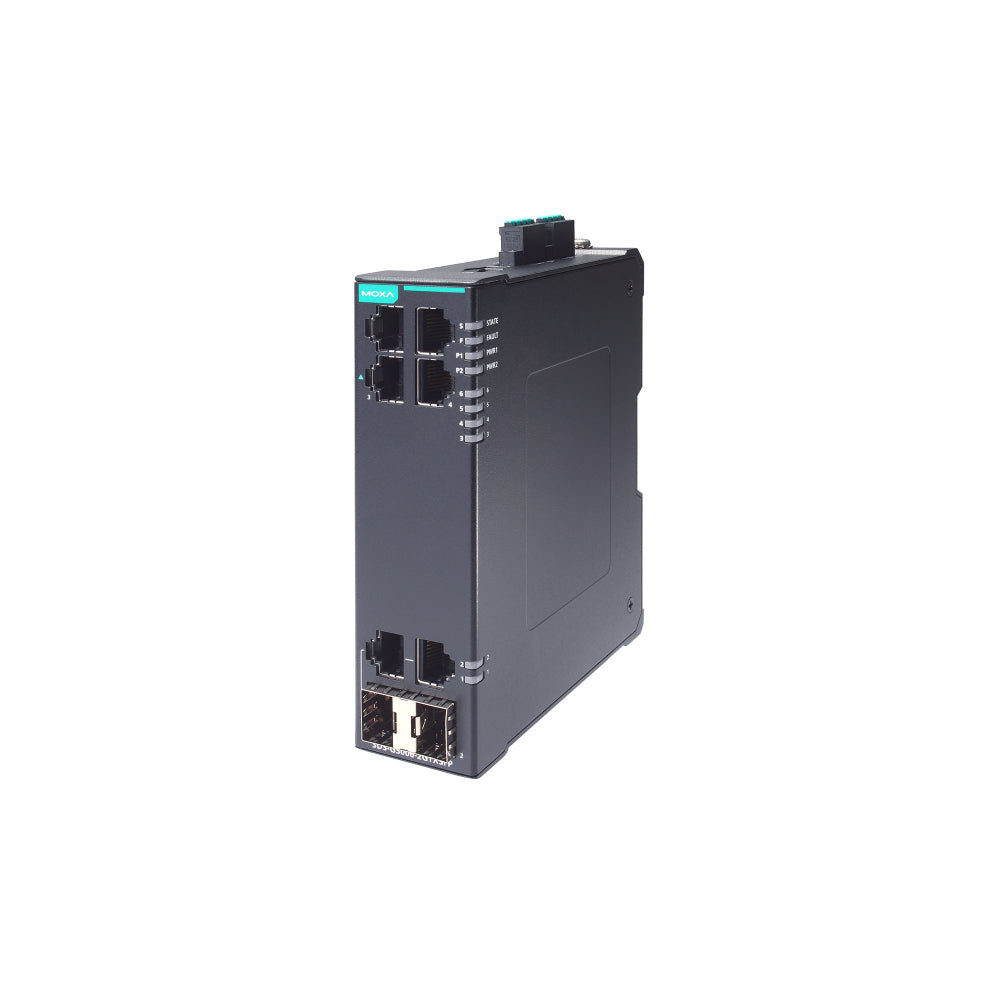

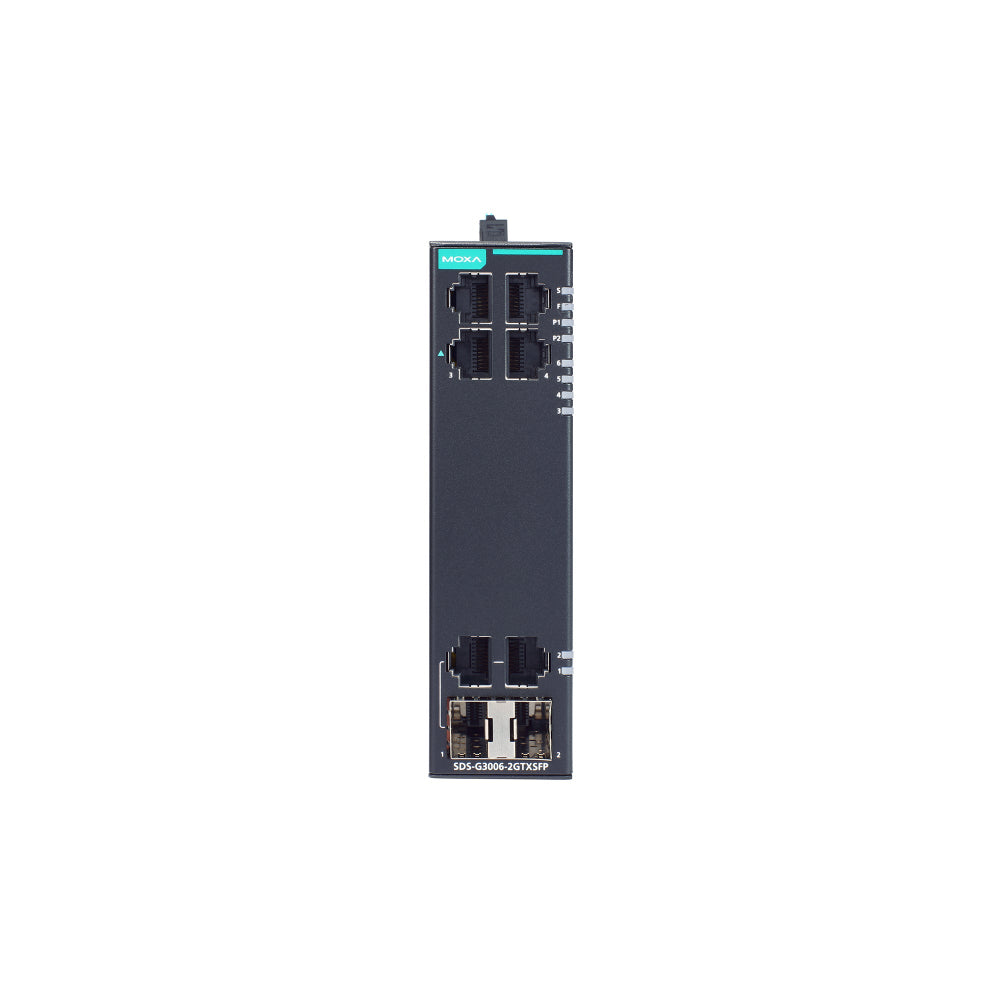

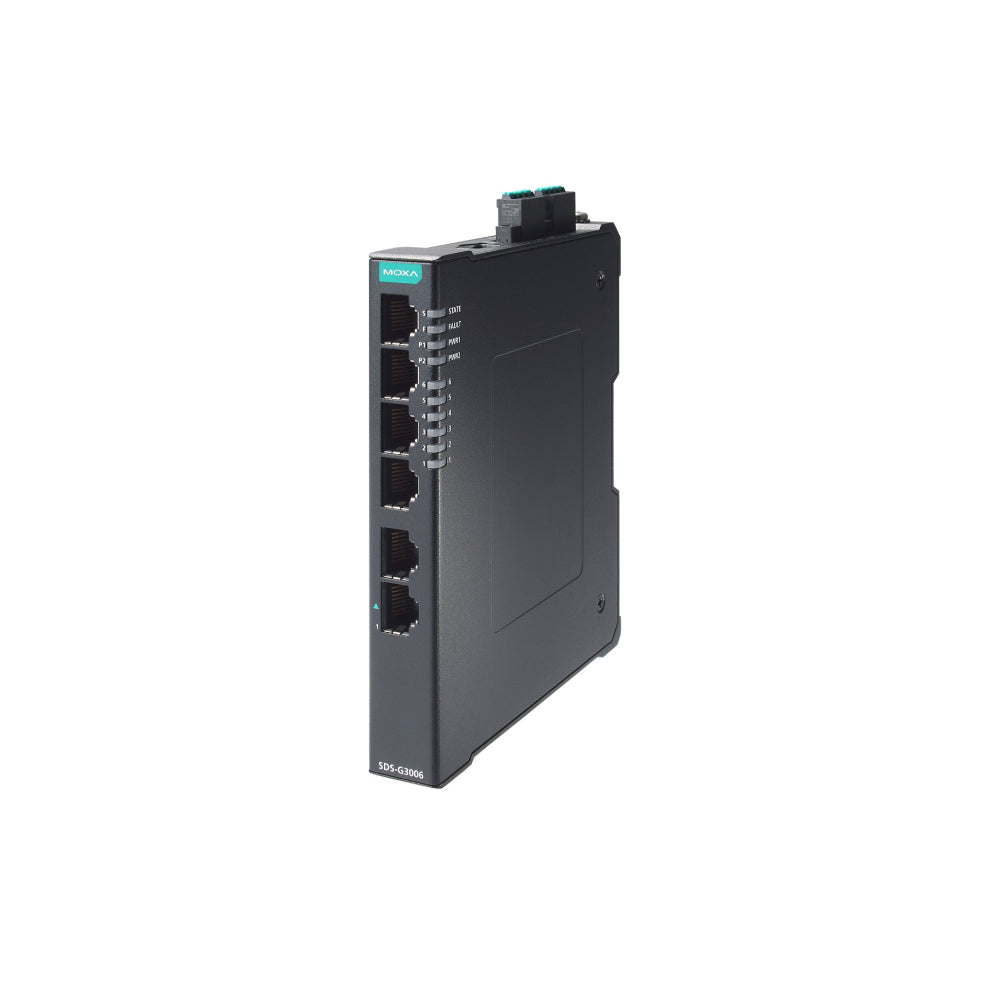

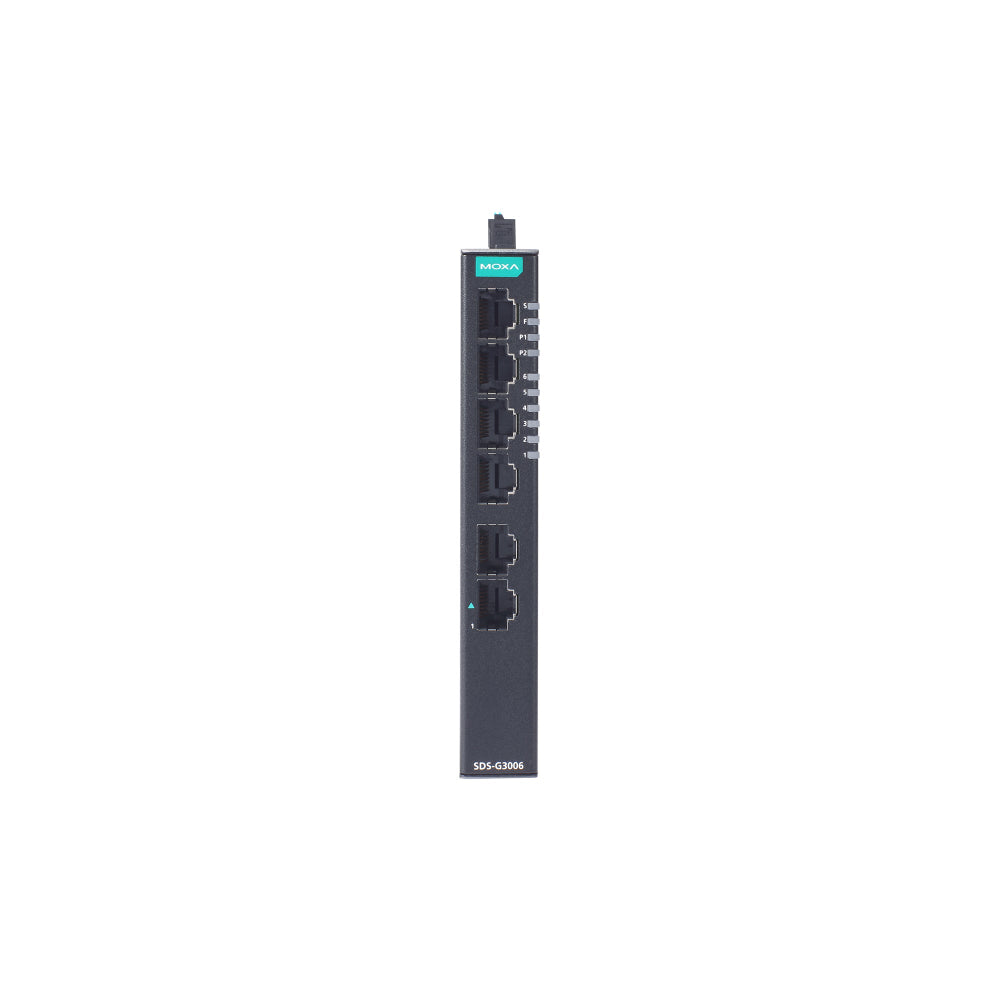

Ethernet Switch SDS G3006 Series

- 4 IEEE 802.3af/at PoE+ standard ports
- 36 watt output per PoE+ port in high-power mode
- Compact and flexible housing design to fit into confined spaces
- Web-based GUI for easy device configuration and management
- Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
- Supports RSTP/STP, and MRP for network redundancy
- EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported
- Rotary DIP switch performs profile-based settings without using a web browser
- Supports Moxa MXstudio for easy, visualised industrial network management

Industrial 6-port full Gigabit smart Ethernet switches, Moxa SDS-G3006 series is designed for IA engineers and automation machine builders. Common automation protocols EtherNet/IP, PROFINET and Modbus TCP—are embedded in Moxa SDS-G3006 switch to enhance operational performance.

This versatile series of smart switch can controlled and monitiored from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and multi-language Web GUI.

Additional Features and Benefits

• IP port binding to ensure critical devices can be replaced quickly without reassigning the IP Address
• IEEE 802.1Q VLAN to ease network planning
• Supports the ABC-02-USB (automatic Backup Configurator) for quick system configuration backup/restore and firmware upgrade
• Automatic warning by exception through relay output
• Unused port lock, SNMPv3 and HTTPS to enhance network security
• Port mirroring for online debugging and monitoring
• Local log and the ability to export inventory files ease inventory management
• Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
