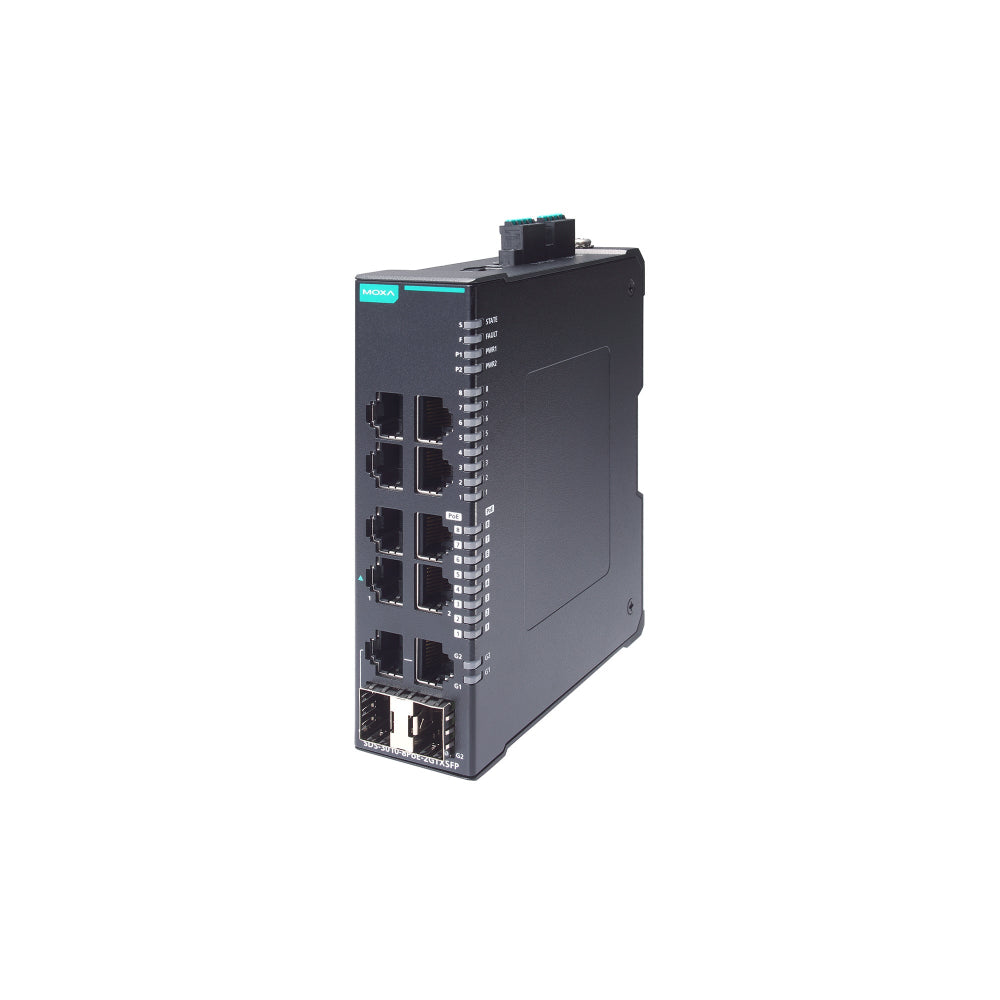

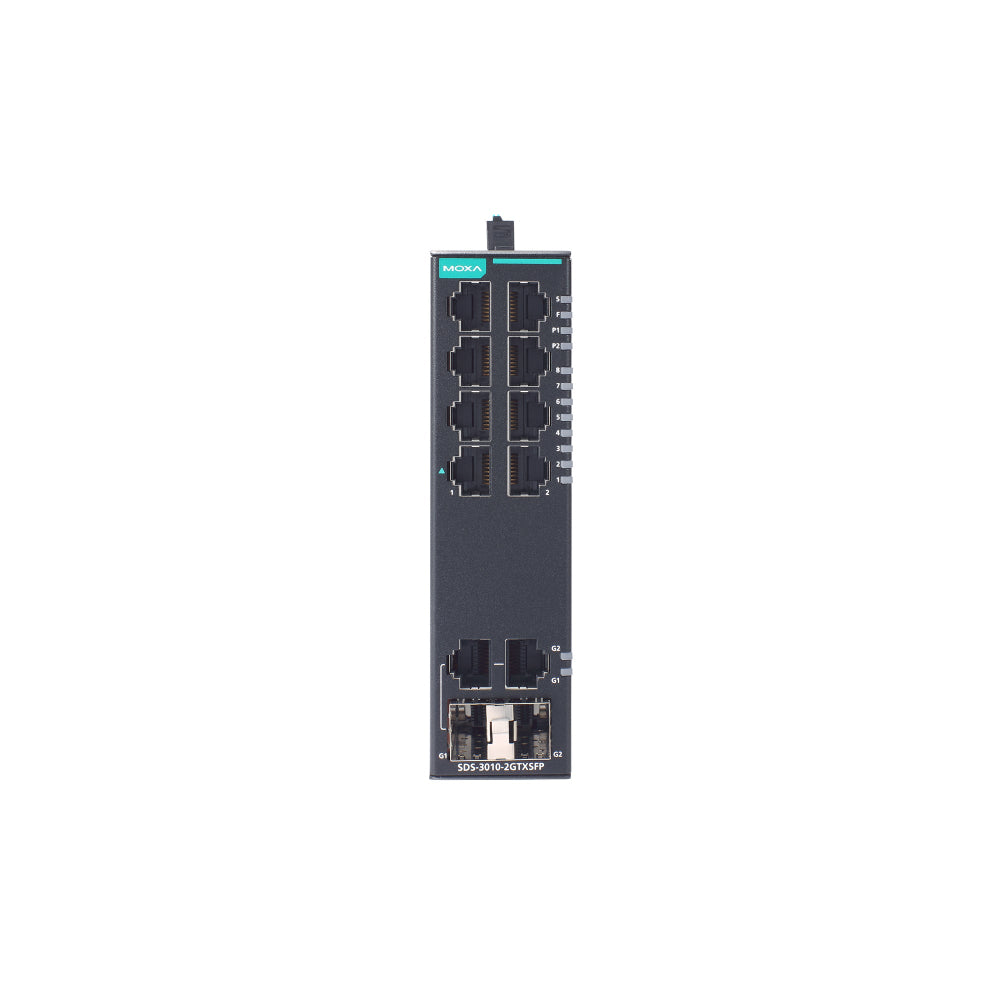

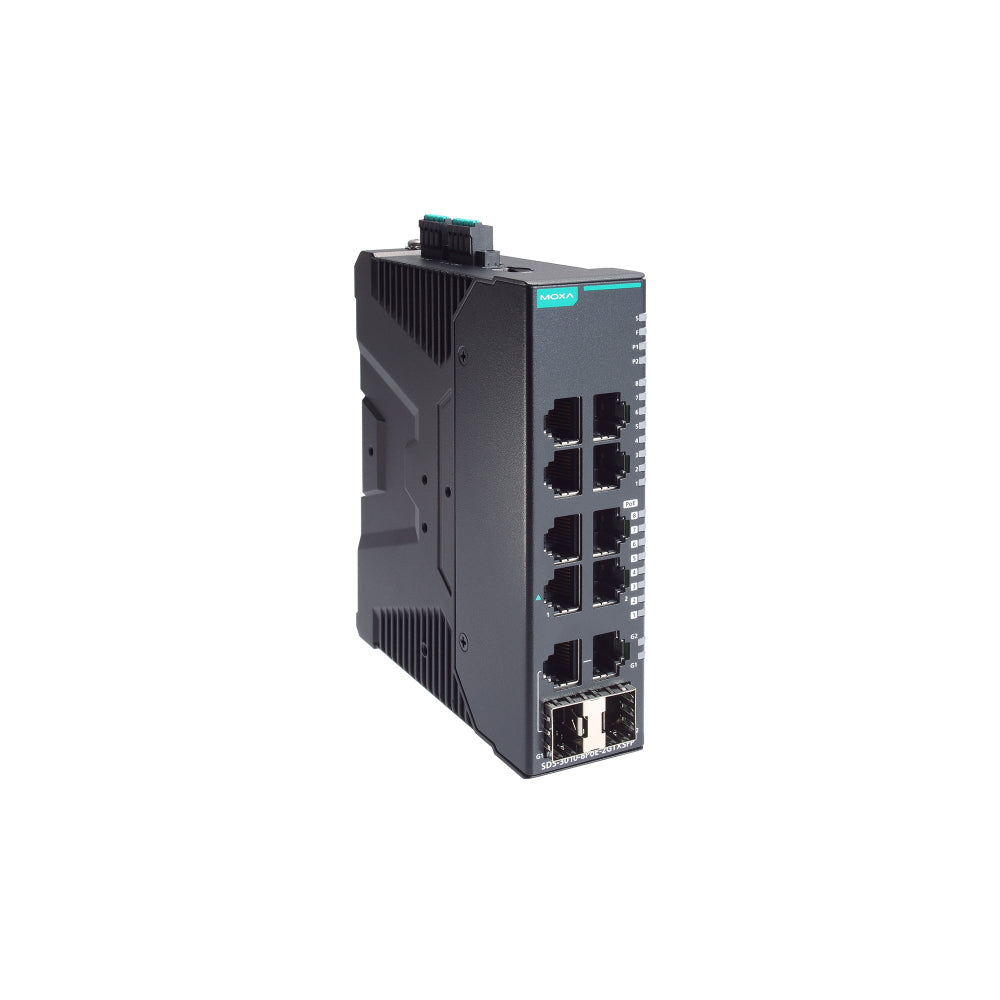

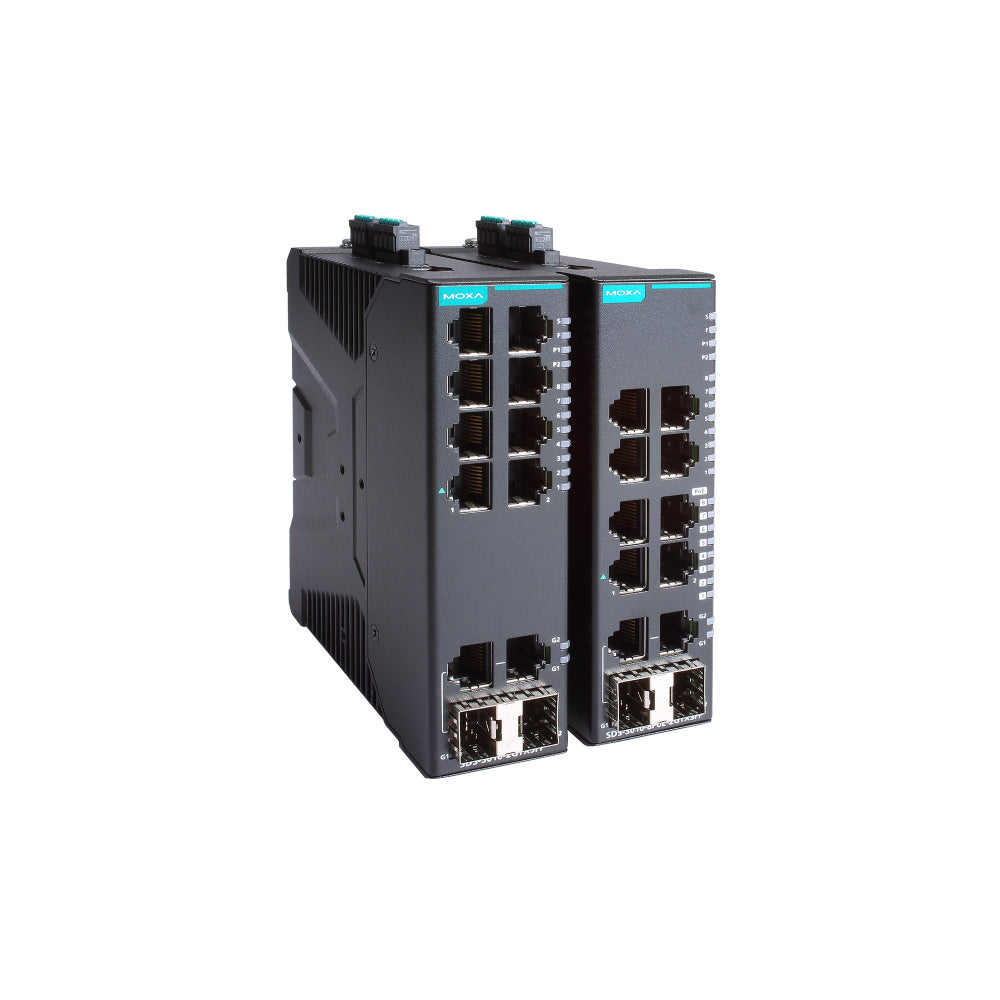

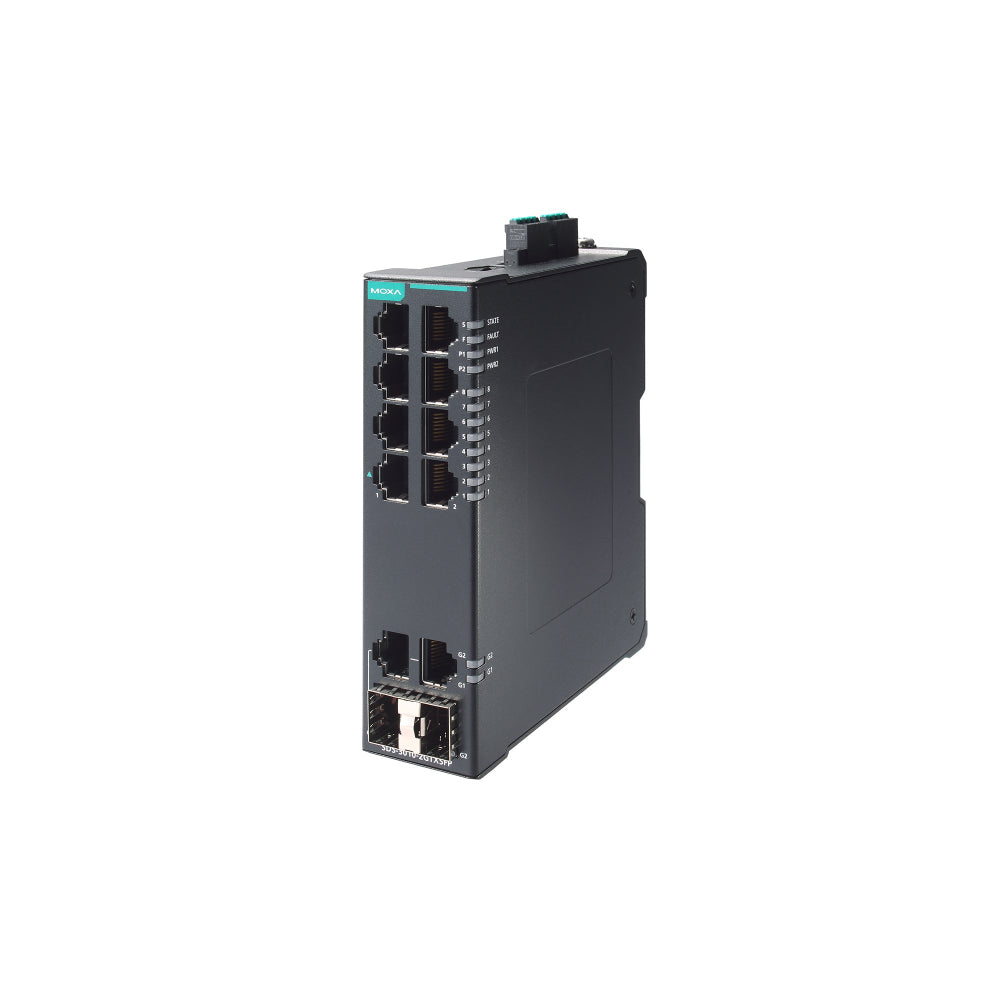

Ethernet Switch SDS 3010 Series

- 8 IEEE 802.3af/at PoE+ standard ports
- 36-watt output per PoE+ port in high-power mode
- Compact and flexible housing design to fit into confined spaces
- Web-based GUI for easy device configuration and management
- Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
- Supports RSTP/STP, and MRP for network redundancy to ensure high network availability
- EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems
- Rotary DIP switch can perform profile-based settings without using a web browser
- Supports MXstudio for easy, visualized industrial network management

Moxa SDS-3010 smart Ethernet switch is designed for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. This smart switch simplifies system management with easy configuration and easy installation. This smart switch allows monitoring and is easy to maintain throughout the entire product life cycle.

Popular automation protocols EtherNet/IP, PROFINET and Modbus TCP are embedded in the SDS-3010 switch. It supports management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay and multi-language Web GUI.

Additional Features and Benefits

• IP port binding to ensure critical devices can be replaced quickly without reassigning the IP Address
• IEEE 802.1Q VLAN to ease network planning
• Supports Moxa ABC-02-USB (automatic Backup Configurator) for quick system configuration backup/restore and firmware upgrade
• Automatic warning by exception through relay output
• Unused port lock, SNMPv3 and HTTPS to enhance network security
• Port mirroring for online debugging and monitoring
• Local log and the ability to export inventory files ease inventory management
• Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
