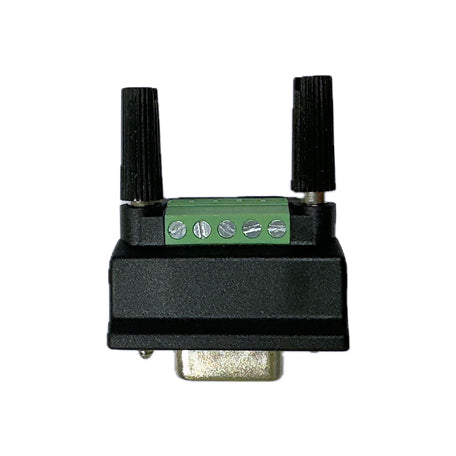

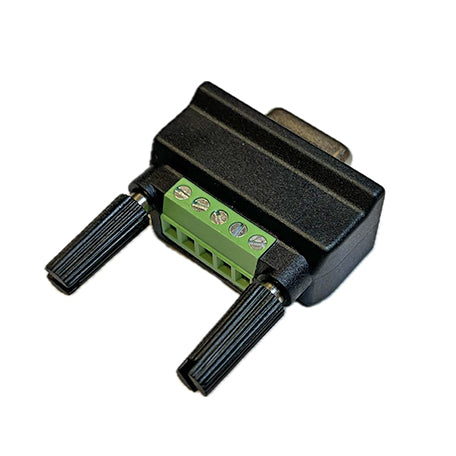

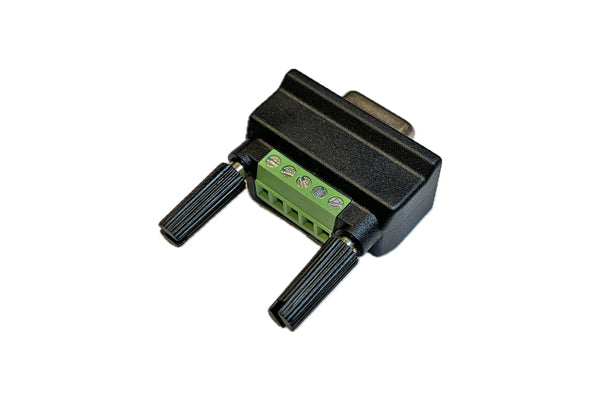

DB9F to Terminal Block Adapter (TNS)
- Passive design, requires edge connectivity device with software-selectable RS 485/422 communication
- Standard DB9 female black connector with nickel plated shell
- Secure locking screw design, DB9F to screw terminals For RS422 and RS485 interfaces
- Compatible with Moxa Uport, Mgate and Nport product series
- Ready stock with no minimum order quantity
- RoHS and Reach Compliant

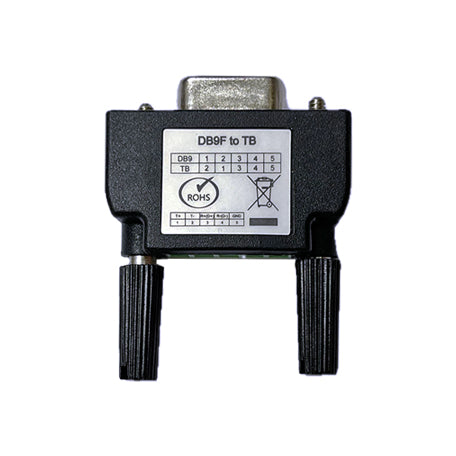

Interface your 2-wire RS-485 or 4-wire RS-485 serial modes to a standard DB9 COM port with TNS mini DB9-to-TB-b. This passive adapter is designed for edge connectivity device with software-selectable RS-232/485/422 communication. TNS adapter is compatible with serial connectivity devices across brands. Pin assignment details are also printed on the product label.
Pin Assignment (Generic)
| Serial COM (DB9F) | 1 | 2 | 3 | 4 | 5 |
| Terminal Block | 2 | 1 | 3 | 4 | 5 |
Pin Assignment (Moxa Compatible)
| Terminal Block | 1 | 2 | 3 | 4 | 5 |
| Pin Assignment | T+ | T- | R+(D+) | R-(D-) | GND |
-
Device InterfaceSerial RS422/485
-
Serial Port Qty1
