Moxa

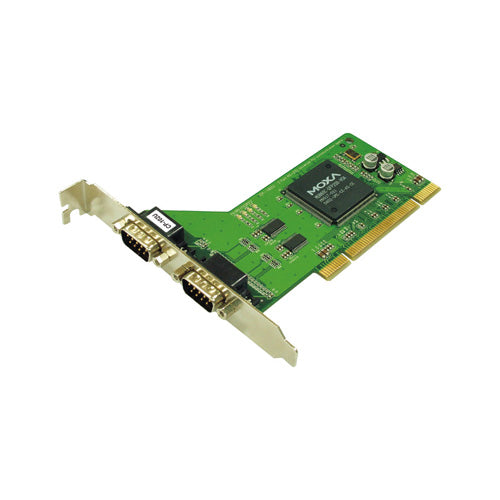

PCI Board CP-102U

2-port RS-232 Universal PCI serial board

$85.02
9% Tax included Shipping calculated at checkout.
Datasheet

Pre-order product

TNS has regular shipments from factory. As soon as it's in stock, we will ship it to you. Contact TNS sales for more info.

- Excellent data throughput at over 800 kbps
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with 3.3/5 V PCI and PCI-X
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- (Optional) Wide-temperature model available for -40 to 85°C environments

Moxa CP-102U is a 2-port universal PCI boards designed for POS and ATM applications. Designed especially for industrial automation engineers and system integrators to support many different operating systems, including Windows, Linux, and UNIX. Each RS-232 serial port supports up to 921.6 kbps baudrate. Moxa CP-102U implement full modem control signals to ensure compatibility with a wide range of serial peripherals. Compatible with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any desktop PC.

Top Serial Performance
With 30-plus years of experience in serial board design, Moxa PCI board features a new high-performance serial data transmission chip. The Turbo Serial Engine™ chip provides serial boards with a 128-byte FIFO, on-chip hardware and software flow control, and burst data mode. With Turbo Serial Engine™, Moxa is able to offer advanced smart serial boards with unbeatable transmission performance.

Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and the CP-102U/UL boards are no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, with support for many operating systems, including WEPOS, for embedded integration.
