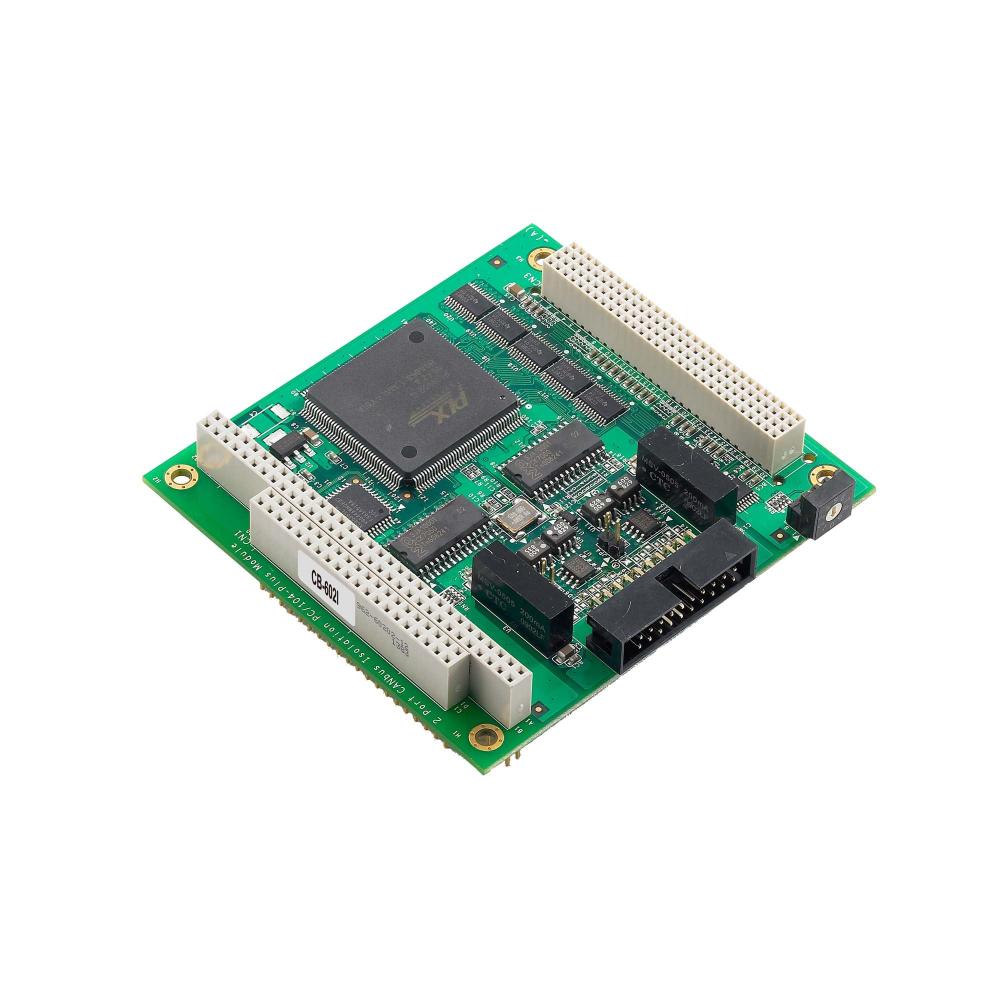

CANbus PC104 Board CB-602I

- CAN 2.0A and CAN 2.0B supported
- Two independent CAN communication ports
- CAN transfer rate up to 1 Mbps
- 2 KV optical isolation protection
- LED for transmit/receive status on each port
- Optional 120 ohm terminal resistor for CAN bus network
- DLL library and examples included
- Windows driver provided

Moxa's CANbus serial boards are a result of more than 30 years of fieldbus interface board experience. These serial boards are rugged, high-quality CAN interface modules with features that include ESD surge protection and long-term driver support.

Moxa CB-602I CAN (Controller Area Network) interface board supports the PC/104-Plus interface. CB-602I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide the bus arbitration and error detection. Wide temperature (-40 to 85C) models and 2 KV isolation models are available. Optional DB9 and DB25 connection cables are available for connecting to CAN interface device.
