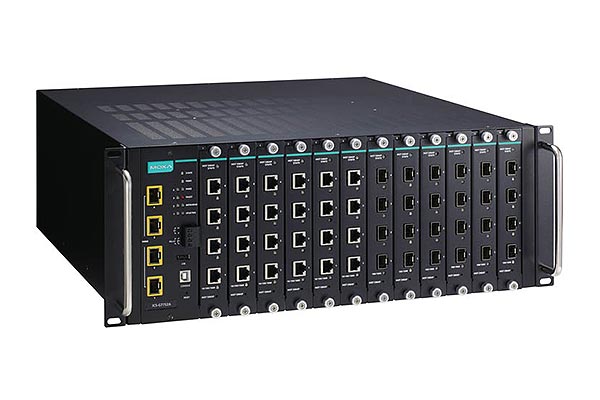

Layer 3 Ethernet Switch ICS-G7848A Series

- Up to 48 Gigabit Ethernet ports
- Up to 48 optical fiber connections (SFP slots)
- Up to 48 PoE+ ports with external power supply (with IM-G7000A-4PoE module)
- Fanless, -10 to 60°C operating temperature range
- Modular design for maximum flexibility and hassle-free future expansion
- Hot-swappable interface and power modules for continuous operation
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- Isolated redundant power inputs with universal 110/220 VAC power supply range
- Supports MXstudio for easy, visualized industrial network management
- V-ON ensures millisecond-level multicast data and video network recovery

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. Moxa's ICS-G7848A series full Gigabit backbone switches’modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports

Moxa's ICS-G7848A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

Layer 3 switching functionality to move data and information across networks (ICS-G7800A Series)

Advanced PoE management functions: PoE output setting, PD failure check, PoE scheduling, and PoE diagnostics (with IM-G7000A-4PoE module)

Command line interface (CLI) for quickly configuring major managed functions

Supports advanced VLAN capability with Q-in-Q tagging

DHCP Option 82 for IP address assignment with different policies

Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

Compatible with PROFINET protocol for transparent data transmission

Digital inputs for integrating sensors and alarms with IP networks

Redundant, dual AC power inputs

IGMP snooping and GMRP for filtering multicast traffic

IEEE 802.1Q VLAN and GVRP protocol to ease network planning

QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

Port Trunking for optimum bandwidth utilization

TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

Access control lists (ACL) increase the flexibility and security of network management

SNMPv1/v2c/v3 for different levels of network management

RMON for proactive and efficient network monitoring

Bandwidth management to prevent unpredictable network status

Lock port function for blocking unauthorized access based on MAC address

Port mirroring for online debugging

Automatic warning by exception through email and relay output
